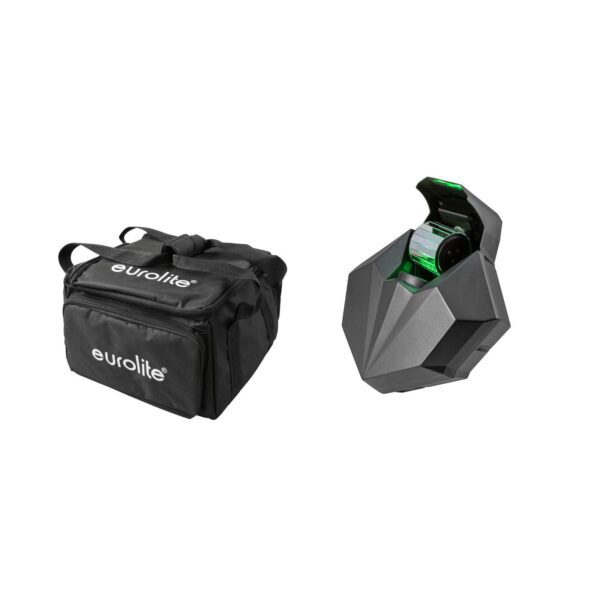

EUROLITE LED CAT-80 Beam Effect
LED Beam Effect with 80 W COB LED in cold white and gobo wheel
- 3 different motion axes
- Rotating faceted mirror inside
- Rotating and swiveling mirror cylinder
- Generates countless moving patterns in the room
- 1 powerful LED 80 W COB (chip-on-board) cold white (CW)
- Gobo wheel with static gobos; Focus manual
- Dimmer electronic
- Mirror cylinder effect; Strobe effect
- Gobo wheel with static gobos, 9 color gobos and open
- The device is cooled by cooling fan
- Control via stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- OLED display
- For application areas such as: Clubs/dancing school; Party room; Stage; mobile djs / entertainer; Rental
- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x xLR cable
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
Weight: | 3,60 kg |
EUROLITE LED CAT-80 Beam Effect | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 110 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x 80 W COB (chip-on-board) cold white (CW) |
Flash rate: | 0 – 25 Hz |
Equipment: | Gobo wheel with static gobos; Focus manual |
Gobos: | Gobo wheel with static gobos, 9 color gobos and open |
DMX channels: | 7 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: | Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3 |
Projection: | Flicker-free |
Housing color: | Black |
Display type: | OLED display |
Dimensions: | Width: 29,0 cm Depth: 18,5 cm Height: 31,5 cm |
Weight: | 3,08 kg |
Noise classification: | Class 3 (clearly perceptible sounds) |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
EUROLITE SB-4 Soft Bag L | |
Maximum load: | 25 kg |
Carrying strap: | 2 pc/pcs |
Material: | Nylon |
Color: | Black, water repellent |
Compartment dimensions: | 15 cm x 15 cm x 20 cm |
Inside dimensions: | 31 cm x 34 cm x 20 cm |
Dimensions: | Width: 32 cm Depth: 41 cm Height: 20 cm |
Weight: | 520 g |
