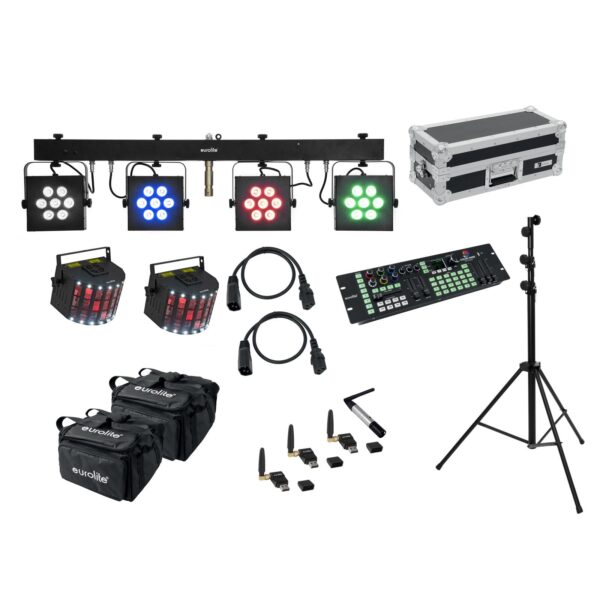

EUROLITE Set LED KLS-3002 + Laser Derby Mobile Bundle

EUROLITE LED KLS-3002 Next Compact Light Set

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag

• DMX light set with four slim-line LED spots
• 7 high-power 10 W RGBAW/UVLEDs (6in1) per spot
• erfect solid and pastel colors and stunning blacklight effects thanks to RGBAW/UV color mixing
• Color and brightness individually adjustable for each spot directly at the control unit
• Brand-new software design with smart programs
• Ultra-light ideally suited for mobile use
• Crossbar with integrated DMX control unit and TV spigot for tripod installation
• Quick truss installation via quick-lock omega holders
• Spots movable and tiltable, and with 19° beam angle
• Comes pre-assembled with practical transport bag
• Convenient control via included IR remote control or optional wireless foot switch
• Auto, music, color, master/slave, and DMX mode
• 20 built-in auto and music show programs
• Direct color selection for 21 preset colors
• Addressing and setting via control panel with 4-digit LED display
• Supports QuickDMX – the wireless DMX system by Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessories)
• Mounting points and power outlets for additional fixtures
• P-Con terminals for power linking up to 8 units
• LED: Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
• Can be operated in 2; 4; 6; 10; 24; 28 CH mode
• The device is cooled by passive convection
• Controlling by Stand-alone; DMX; Wireless footswitch (optional); QuickDMX via USB (optional); IR remote control; Sound to light via Microphone
• Is in EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software; LED EASY OPERATOR DELUXE already preprogrammed
• For application areas such as: Small lender; Lender; Wedding/gala

EUROLITE LED Laser Derby MK2

DMX light effect with RG laser (2M), rotating LED derby, stroboscope and IR remote control

• Four high-power 10 W LEDs in red, green, blue and white for dynamic mirror ball effects
• 16 cold white 0.6 W SMD LEDs for fast, dynamic strobe effects
• 2 laser diodes project thousands of red and green laser beams
• Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
• Auto, music, master/slave and DMX mode
• 7 built-in auto and music show programs
• RGBW color effects, dimmer and strobe effects
• Rotation speed variably adjustable
• Sound-control via built-in microphone with adjustable microphone sensitivity
• DMX512 control possible via any commercial DMX controller
• 2,4,5,6,7,8 or 9 DMX channels selectable for various applications
• Supports QuickDMX – the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessory)
• Addressing and setting via control panel with 4-digit LED display
• Convenient wireless control via included IR remote control EUROLITE IR-16
• Feed-through output allows to power up to 8 devices
• LED: Strobe effect 16 x SMD 2835 0,6 W cold white (CW)
• LED: Multi beam effect 4 x SMD 5050 10 W R/G/B/W
• Can be operated in 2; 4; 5; 6; 8; 7; 9 CH mode
• The device is cooled by cooling fan
• Controlling by IR remote control; Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional)
• Effect: Multi beam effect; Strobe effect; laser

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
• (19″) 48.3 cm rack installation 3 U

EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

• Stable lighting stand (without T bar)
• For mobile use
• Steel/magnesium version
• Ø 29 mm attachment fits standard TV pins
• Carry bag available as accessory
• Available in black and white
• Made in Europe

EUROLITE SB-4 Soft Bag L

Black soft bag for up to 4 devices, 320 x 320 x 200 mm

• Practical transport bag offers enough space for several lighting effects and accessories
• Large interior, four times divisible and adaptable with foam dividers and pads
• Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
• Interior upholstery helps securing and safeguarding the fixtures during transportation
• External pocket stores accessories like cables, clamps, lamps and tape
• Made of easy-care nylon
• Carrying handles

ROADINGER Mixer Case Pro MCA-19-N, 3U, black

Flightcase for 483 mm devices (19″)

• Suitable for 483 mm units (19″), e.g. controllers and mixers, with 3 U
• Upward tilted profile rails (approx. 13°) for top-operated units
• Interior upholstered with foam (black)
• High-quality workmanship with plywood multilayered glued, black
• Aluminum profile frames (30 mm) with rounded edges
• Removable cover
• Three-leg, medium-sized steel ball corners
• 2 high-quality butterfly locks
• 4 steel-enforced rubber feet
• Padded carrying handle
• Delivery includes mounting screws
• 3 U

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

• User-friendly USB plug with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band – license-free worldwide
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Controlling by DMX; QuickDMX built-in

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in; DMX
• Use a operating range up to 400m

Weight:	33,49 kg
EUROLITE LED KLS-3002 Next Compact Light Set
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	225 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cable construction:	3 x 1,0 mm² H05VV-F
Cable length:	3 m
Power output:	2 x IEC connector (F) mounting version fused 1 x P-Con (gray), mounting version Bypass
Device fuse:	5 x 20 mm, T 2,5 A Fuse replaceable
Power output fuse per channel:	5 x 20 mm, T 5 A Fuse replaceable
Lamp type:	LED lamp
LED:	Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:	2; 4; 6; 10; 24; 28
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection
Control:	Stand-alone; DMX; Wireless footswitch (optional); QuickDMX via USB (optional); IR remote control; Sound to light via Microphone; EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software; LED EASY OPERATOR DELUXE
Beam angle:	19°
Beam angle (1/2 peak):	19°
Beam angle (1/10 peak):	35°
Housing color:	Black
Attachment system:	TV spigot Ø 28mm
Dimensions:	Width: 1,28 m Depth: 8 cm Height: 29 cm
Weight:	11,14 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese
Legal specifications
Special product:	Not designed for household room illumination
intended use:	show effect lighting
EUROLITE LED Laser Derby MK2
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	60 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input IEC (M) Power supply cord with safety plug
Power output:	IEC connector (F) mounting version Bypass
Fuse:	5 x 20 mm, T 1,6 A Fuse replaceable
Lamp type:	LED lamp
LED:	Strobe effect 16 x SMD 2835 0,6 W cold white (CW) Multi beam effect 4 x SMD 5050 10 W R/G/B/W
DMX channels:	2; 4; 5; 6; 8; 7; 9
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	IR remote control; Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional)
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Monochrome 4 digits 7-segment LED display
Control elements:	Navigation keys, sensitivity rotary dial
Status LED:	DMX, slave mode, auto mode, sound mode
Dimensions:	Width: 26 cm Depth: 19 cm Height: 19 cm
Weight:	2,17 kg
Power cord
Cable construction:	3 x 0,75 mm² H05VV-F
Cable length:	1,5 m
Laser
Laser class:	Class 2M
Laser color:	R/G
Laser module:	Green (G) 35 mW 515 nm Red (R) 100 mW 650nm
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese
EUROLITE DMX LED Color Chief Controller
Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Programs:	Programmable 24 Sequences
DMX channels:	Output 240
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Housing design:	(19″) 48.3 cm rack installation 3 U
Dimensions:	Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm
Weight:	2,25 kg
EUROLITE STV-60-WOT EU Steel Stand black
Maximum carrying capacity:	30 kg
Height:	Maximum: 315 cm Minimum: 150 cm
Attachment system:	TV spigot Ø 28mm
Type (general stands):	Light stand/manual
Material:	Steel/magnesium
Color:	Black
Transport dimensions:	1,26 m x 12 cm x 15 cm
Weight:	5,65 kg
EUROLITE SB-4 Soft Bag L
Maximum load:	25 kg
Material:	Textile
Color:	Black
Compartment dimensions:	15 cm x 15 cm x 19 cm
Inside dimensions:	31 cm x 31 cm x 19 cm
Dimensions:	Width: 32 cm Depth: 32 cm Height: 20 cm
Weight:	520 g
OMNITRONIC IEC Extension 3×0.75 0.6m bk
Cable construction:	3 x 0,75 mm² Power cable
Cable length:	0,6 m
Plug A:	1 x IEC (M)
Plug B:	1 x IEC (F)
Color:	Black
Weight:	80 g
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Maximum load:	25 kg
Material:	Glued plywood, 7 mm
Color:	Black, laminated
Mounting width:	(19″) 48.3 cm rack installation
Mounting height:	Approx. 13,5 cm (3 U)
Mounting depth:	105 mm
Housing design:	3 U
Dimensions:	Width: 55 cm Depth: 24 cm Height: 23,5 cm
Weight:	5,10 kg
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Power supply:	5 V DC
IP classification:	IP20
Power connection:	Mains input USB A (M) connectable version
DMX channels:	Input 512 Output 512
DMX output:	1 x USB, type A
Control:	DMX; QuickDMX built-in
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Color:	Black
Dimensions:	Width: 8,6 cm Depth: 4 cm Height: 1,1 cm
Weight:	10 g
EUROLITE QuickDMX Wireless Transmitter
Power supply:	100-240 V AC, 50/60 Hz 5 V DC 1 A
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:	Output 512
DMX input:	1 x 3-pin XLR (M)
Control:	QuickDMX built-in; DMX
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Range:	400 m
Color:	Silver
Dimensions:	Length: 21,2 cm Diameter: Ø 1,8 cm
Weight:	150 g
