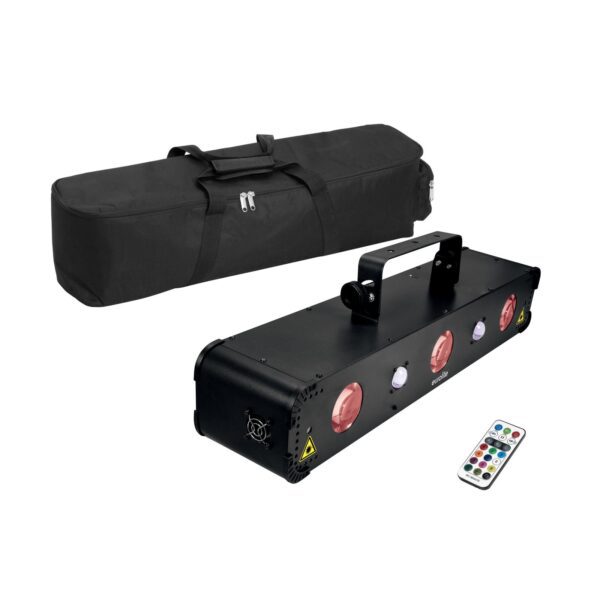

EUROLITE LED Multi FX Laser Bar
Lighting effect with RGBAW LED matrix, UV, RG laser (class 2M) and stroboscope
- Matrix effect with a total of 192 LEDs generates countless moving colourful dots in the room
- 4 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Matrix, blacklight, laser and strobe can be controlled individually
- Mains input and output for power linking up to 8 units
- 36 powerful LEDs 0,5 W SMD cold white (CW)
- 2 powerful LEDs 3 W high-power ultra violet (UV)
- 192 powerful LEDs 5 mm R/G/B/W/A
- 14 integrated Showprograms
- Can be operated in 2; 5; 10 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; IR remote control
- Preprogrammed in LED PC-Control 512; Light Captain
- Effect: Multi beam effect; flower effect; Strobe effect; UV effect; laser
- With Mounting bracket
- Monochrome 4 digits 7-segment LED display
- For application areas such as: Wedding/gala/events
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
EUROLITE SB-11 Soft Bag
Practical black soft bag for LED Multi FX Laser Bar
- Made of easy-care nylon
- With 1 accessory compartment
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
Weight: | 5,73 kg |
EUROLITE LED Multi FX Laser Bar | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 35 W |
IP classification: | IP20 |
Protection class: | Class I |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | Strobe effect 36 x 0,5 W SMD cold white (CW) UV effect 2 x 3 W high-power ultra violet (UV) Matrix effect 192 x 5 mm R/G/B/W/A |
Laser class: | Class 2M |
Laser color: | R/G |
Laser module: | Green (G) 30 mW 532nm Red (R) 100 mW 650nm |
DMX channels: | 2; 5; 10 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; LED PC-Control 512; Light Captain; IR remote control |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | Monochrome 4 digits 7-segment LED display |
Dimensions: | Length: 76 cm Depth: 18 cm Height: 24,5 cm |
Weight: | 5,25 kg |
Noise classification: | Class 3 (clearly perceptible sounds) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
EUROLITE SB-11 Soft Bag | |
Carrying strap: | 2 pc/pcs |
Dimensions: | Width: 81 cm Depth: 19 cm Height: 22 cm |
Weight: | 480 g |
