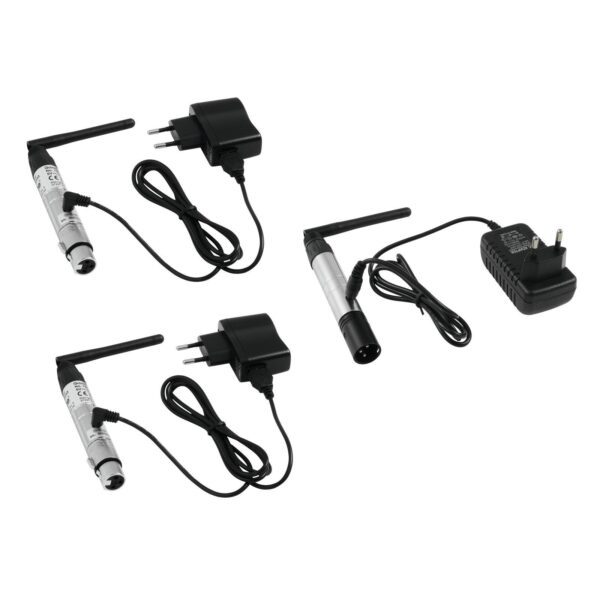

EUROLITE Set QuickDMX 1x transmitter + 2x receiver

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz
• Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide

70064701 EUROLITE QuickDMX Wireless Receiver

Compact wireless DMX receiver 2.4 GHz
• Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide

70064700 EUROLITE QuickDMX Wireless Transmitter

Power supply:   100-240 V AC, 50/60 Hz
   via power unit included in the delivery
Carrier frequency:   2.4 GHz ISM band, 78 channels
Modulation:   GFSK
Coverage:   400 m (line-of-sight)
Parallel operation:   max. 6 transmitters
DMX conncector:   3-pin XLR (male)
DMX channels:   1 universe (512 channels)
Dimensions with antenna (L x W x H):   212 x 18 x 18 mm
Weight:   80 g

70064701 EUROLITE QuickDMX Wireless Receiver

Power supply:   100-240 V AC, 50/60 Hz
   via power unit included in the delivery
Carrier frequency:   2.4 GHz ISM band, 78 channels
Modulation:   GFSK
Coverage:   400 m (line-of-sight)
Parallel operation:   max. 6 transmitters
DMX conncector:   3-pin XLR (female)
DMX channels:   1 universe (512 channels)
Dimensions with antenna (L x W x H):   212 x 18 x 18 mm
Weight:   80 g
