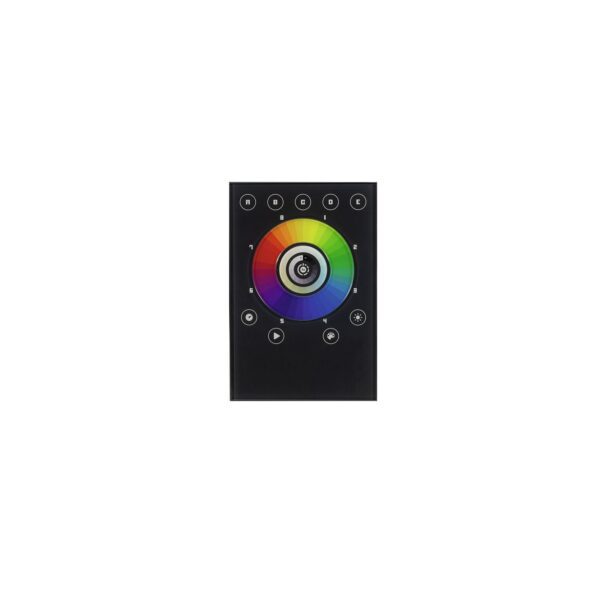

DMX wall controller with multi-function touchpad and software, 512 channels
- Flat, wall-mounted stand-alone player for DMX control of light effects without the need for a computer
- Write a show in to the stand-alone memory of the player and play back sequences without a computer
- Programmable 40 scenes/chases )
- Can transmit up to 512 DMX channels
- Real-time clock triggering for each scene (day, week, month, year)
- Control via DMX; Master/slave function; Sound to light; Wi-light 2 App
- Automatic Scene Recovery if the power is accidently cut off
- Applicable for serial connection of 32 players in Master/Slave mode
- Flush mounting
- Compatible with Win 7, Win 10, Linux, OS X 10,13 or better
- In connection with Pro DMX 2
firmware can be updated - For application areas such as: Restaurants, bars and hotels; Trade fair and shop fitting; Installation

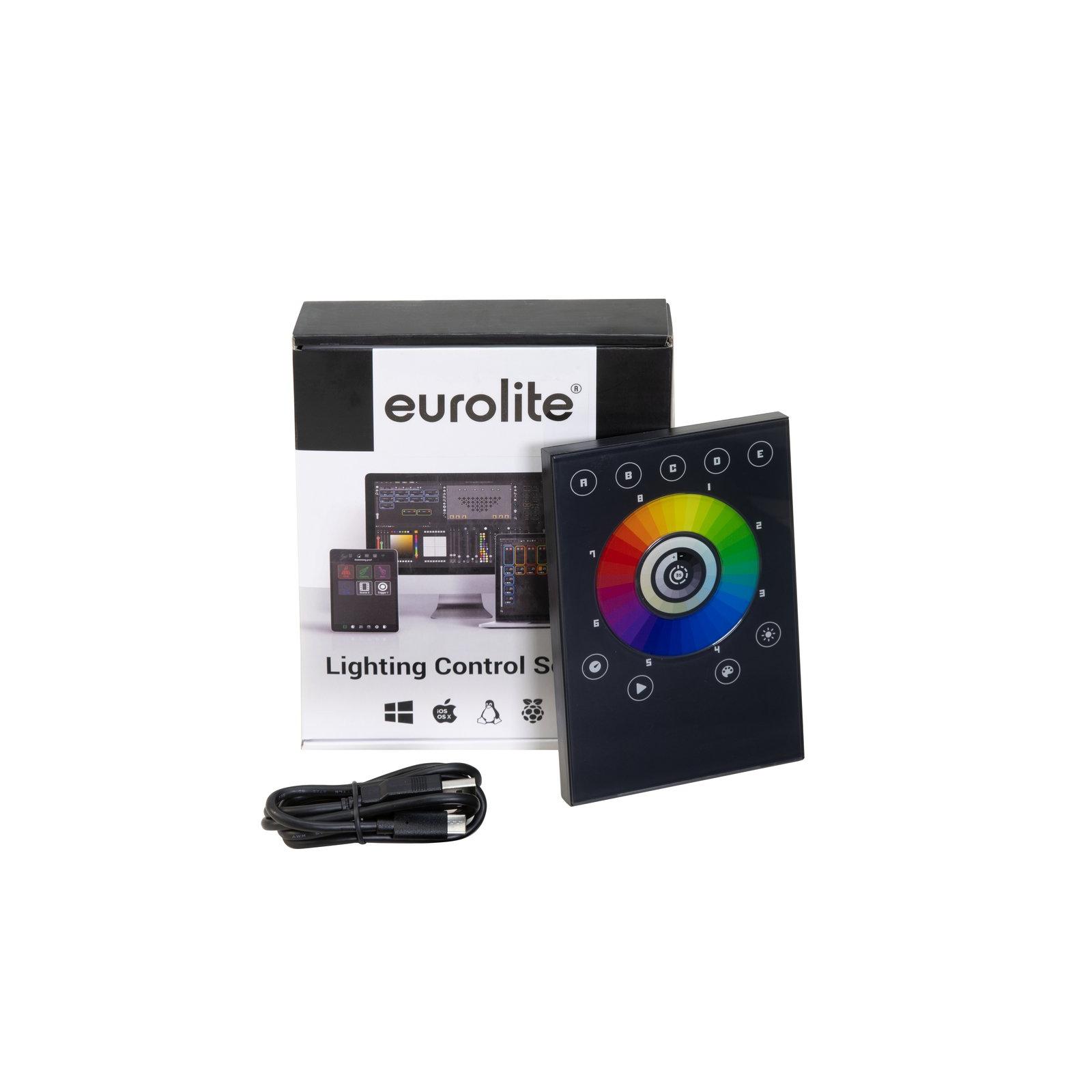

Package contents

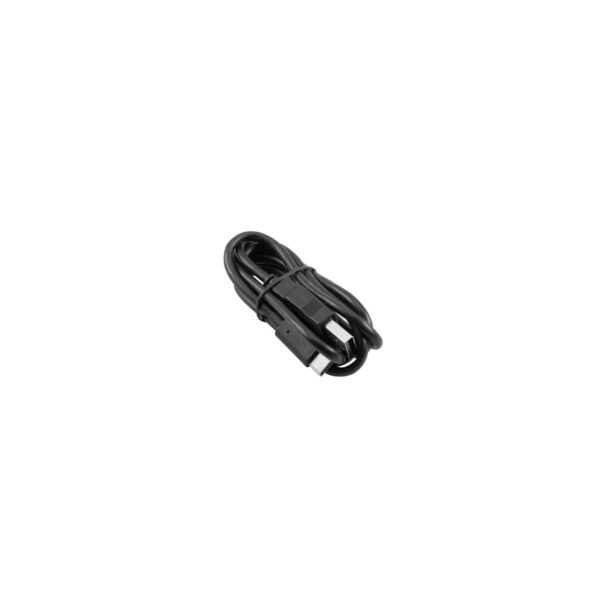

- 1 x device, 1 x uSB cable, 1 x terminal
Power supply: | 9-24 V DC 100 mA |
IP classification: | IP20 |
Protection class: | Protection class III |
Power connection: | Via screw terminal |
Programs: | Programmable 40 scenes/chases ) |
DMX channels: | Output 512 |
Control: | DMX; Master/slave function; Sound to light; Wi-light 2 App |
Connections: | Output: screw plug-in terminal RJ-45 (F) mounting version |
Available storage media: | MicroSD card |
USB port: | Typ C |
Material: | Glass; plastic |
Color: | Black |
PC connect: | Pro DMX 2, firmware can be updated |
Housing design: | Flush mounting |
Dimensions: | Width: 9,8 cm Depth: 1,3 cm Height: 14,4 cm |
Weight: | 230 g |
Operating system: | Win 7, Win 10, Linux, OS X 10,13 or better |
