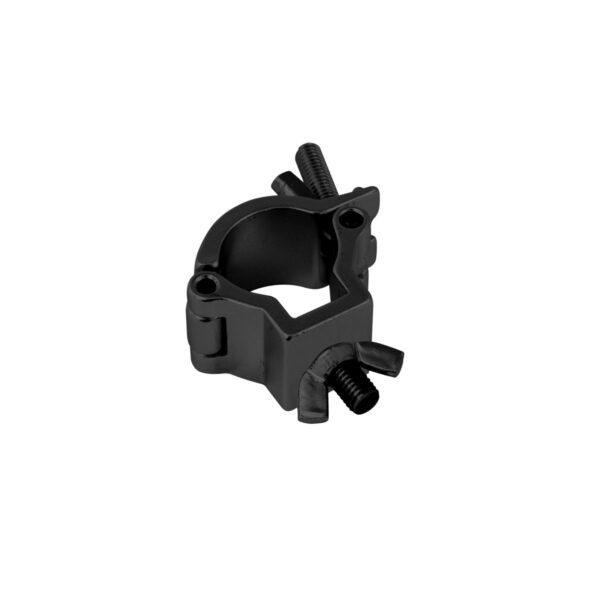

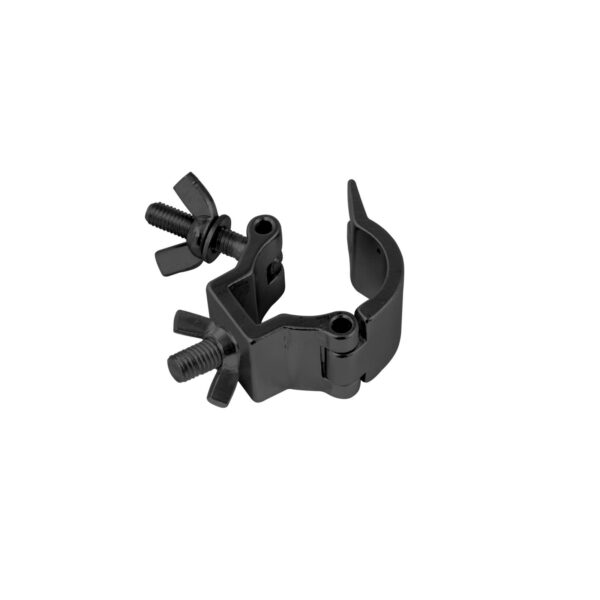

Mounting coupler for 20 mm tube, maximum load WLL 10 kg
- Only for the installation at horizontal and vertical truss!
Maximum load BGV C1 (8-fold): | 5 kg |
Max. load WLL (4fold): | 10 kg |
Tube diameter sector: | 18 – 20 mm |
Color: | Black |
Mounting screw: | M6 |
Dimension: | Length: 55 mm Width: 20 mm Depth: 40 mm |
Weight: | 40 g |
