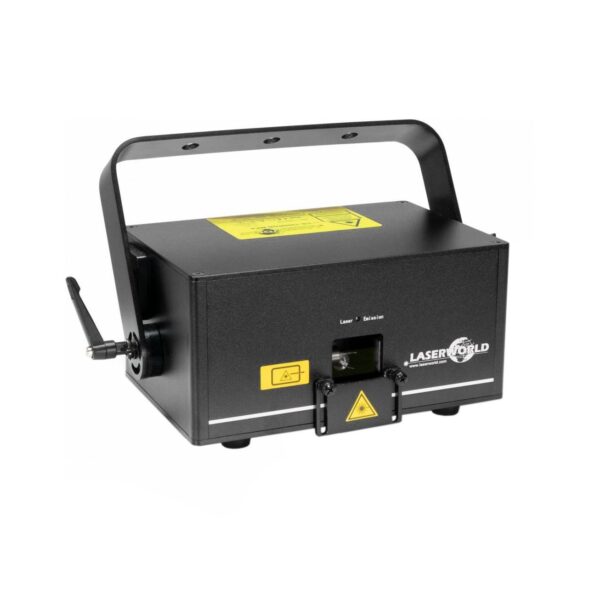

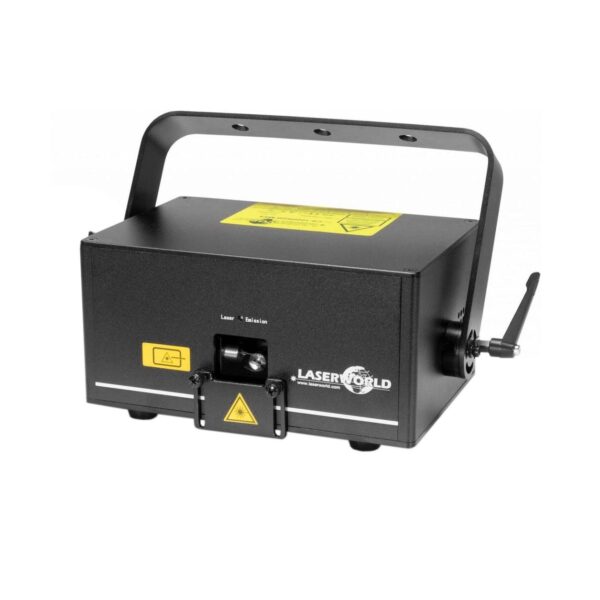

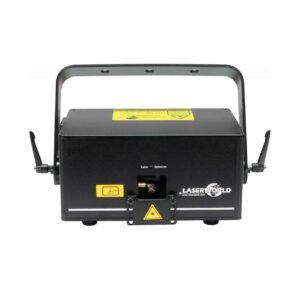

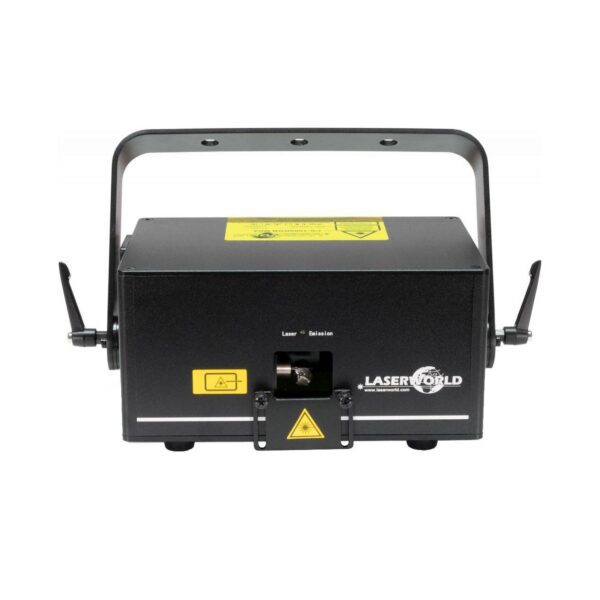

Pure diode laser system
- The device is cooled by cooling fan
- Control via DMX; ILDA; stand-alone; Master/slave function; Sound to light via Microphone
- With Mounting bracket
- 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; mobile djs / entertainer
- Application possibility: Suspended
Package contents
- 1 x laser, 1 x user manual, 1 x power cord, 2 x key, 1 x interlock
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 20 W |
IP classification: | IP4X |
Protection class: | Protection class I |

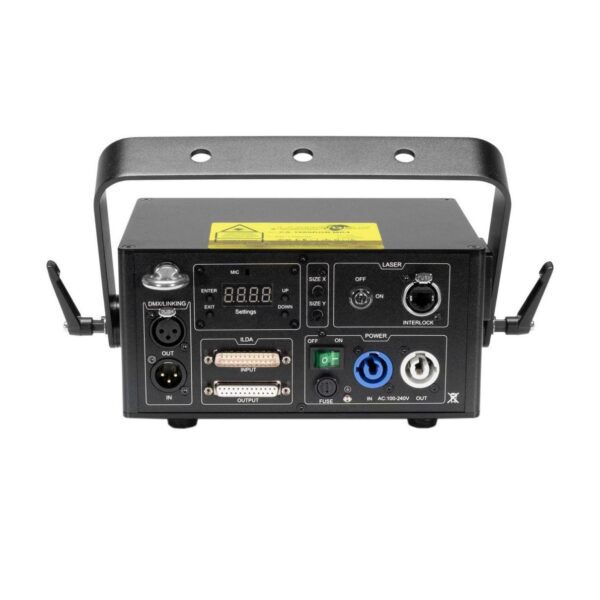

Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | 1 x P-Con (gray), mounting version |
Laser class: | 4 |
Laser color: | R/G/B |
Laser module: | Red (R) 200 mW 650nm Green (G) 70 mW 520nm Blue (B) 530 mW 450nm |
DMX channels: | 18 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | DMX; ILDA; stand-alone; Master/slave function; Sound to light via Microphone |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | 4 digit 7-segment LED display |
Color: | Black |
Dimensions: | Length: 22 cm Width: 15 cm Height: 11,6 cm |
Weight: | 2,5 kg |
