350/80 W AES, 8 ohms LF/HF, 99,5/105,5 dB, 45-3500 Hz/600-18000 Hz
- For further information about this product, please refer to the Data Sheet under “Downloads”
Power: | Program: 700W LF Rated: 80W AES HF Rated: 350W AES LF Program: 160W HF |

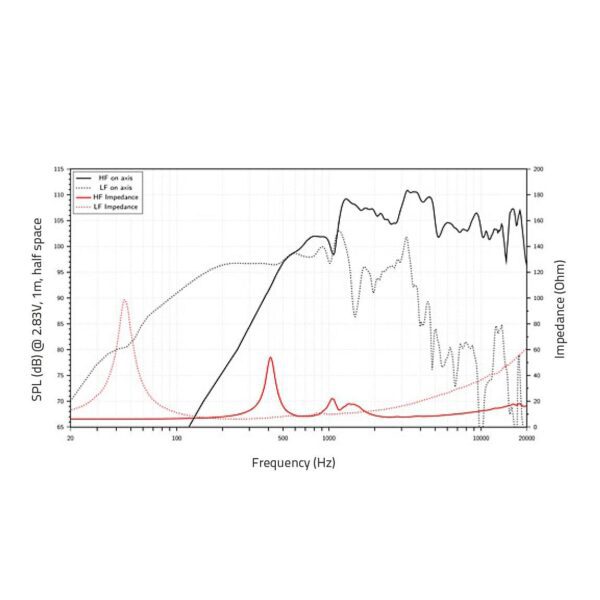

Frequency range: | 45 – 3500 Hz LF 600 – 18000 Hz HF |
Sensitivity: | 99,5 dB LF; 105,5 dB HF |
Impedance: | 8 ohms LF; 8 ohms HF |

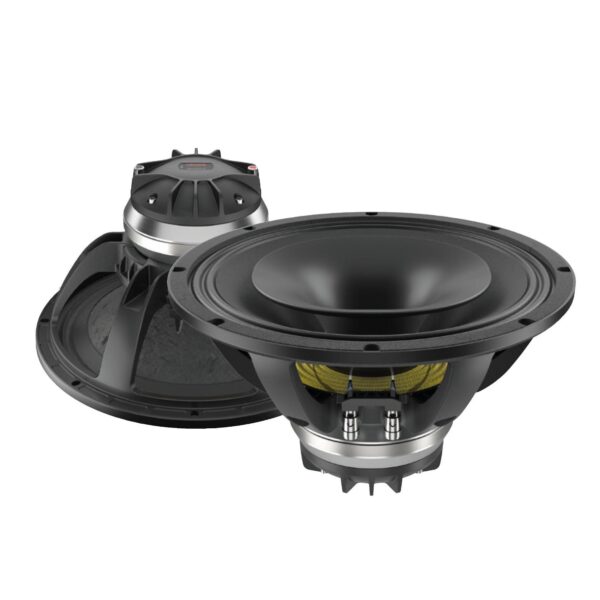

Speaker: | Woofer (12″) approx. 30 cm with shared neodymium magnet with dual demodulating rings Basket material: aluminum Voice coil lows (3″) approx. 8 cm Diaphragmmaterial: Titanium Compression tweeter highs (1.4″) approx. 3.6 cm Voice coil compression tweeter highs (3″) approx. 8 cm |
Weight: | 4,90 kg |
