LD Systems ROADBUDDY 10 HHD 2

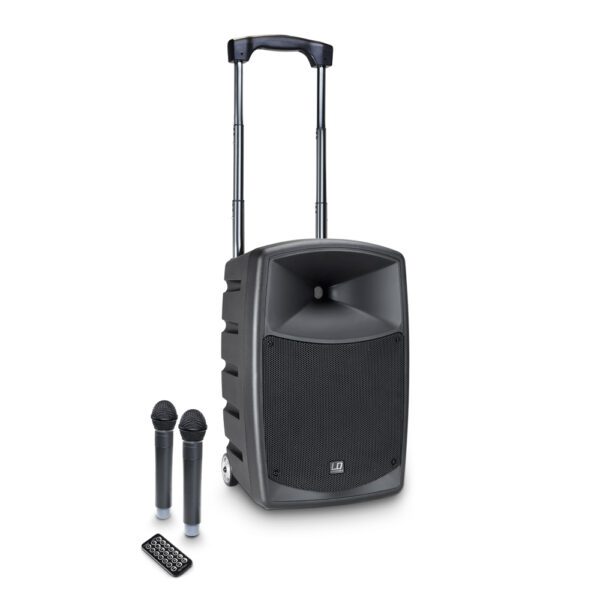

LD Systems ROADBUDDY 10 HHD 2 – Battery-Powered Bluetooth Speaker with Mixer and 2 Wireless Microphones

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates in the license-free 863 – 865 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2), two headset microphones with belt pack (LDRBUD10BPH2) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

• Battery-powered speaker solution
• Integrated radio receiver 863 – 865 MHz for license-free operation
• Bluetooth player with USB port and SD card slot
• Class D power amplifier with 480 watts of peak power
• 2 combo sockets for microphone or line inputs
• 3.5 mm Aux input
• Master section with 2-band EQ
• Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
• 2 Wireless microphones and IR-remote control included

Tipo di prodotto	Altoparlanti PA a batterie
Dimensioni woofer	10 “, 254 mm
Magnete woofer	Ferrite
Marca woofer	Custom Made
Dimensioni driver HF	1 “, 25,4 mm
Magnete driver HF:	Ferrite
Marca driver HF	Custom Made
Amplificatore	Classe D
Potenza (RMS)	120 W
Potenza (picco)	480 W
Risposta in frequenza	55 – 18000 Hz
SPL (1 W / 1 m)	96 dB
SPL massimo	115 dB
Protezioni	Cortocircuito, Protezione dal sovraccarico, Sovratensione
Elementi di comando	CD / Tape IN Level, Echo, High, Interruttore AUX / MP3, Low, Mic 1 Level, Mic 2 Level, Volume totale
Indicatori	Power, Stato carica/batteria

Media Player

Dispositivi compatibili	Bluetooth, Penna USB, Scheda di memoria SD
Formati supportati	File MP3, File WAV, File WMA
Dispositivi di comando Media Player	Equalizzatore, Mode (Menu / Bluetooth /SD / USB), Play / Pause, Repeat, Stop, Titolo precedente, Titolo successivo
Dispositivi di visualizzazione Media Player	Display LCD multifunzione illuminato
Ingressi di linea	1
Connessioni di ingresso di linea	2 RCA, Jack da 3,5 mm, Jack da 6,3 mm, n. 2 XLR
Ingressi microfono	2
Connessioni di ingresso microfono	Jack da 6,3 mm, n. 2 XLR

Wireless Unit

Campo di radiofrequenze	863 – 865 MHz
Tipo di modulazione	FM
Canali	16
Risposta in frequenza Wireless Unit	50 – 17000 Hz
Dispositivi di comando Wireless Unit	ASC, Down, Mute-Level (squelch), Power/Volume, Up
Dispositivi di visualizzazione Wireless Unit	AF (LED), Display LED, RF (LED)
Collegamenti Wireless Unit	nTNC per antenna Receiver
Uscita RF potenza di trasmissione	10 mW
Peso microfono a mano	0,285 kg
Materiale microfono a mano	Alluminio
Alimentazione	Alimentatore switching
Tensione di esercizio	100 V – 120 V / 60 Hz, 220-240 V AC/50 Hz
Batterie ricaricabili	12 V / 5 Ah
Materiale cassa	Polipropilene
Modello cassa	Bass reflex
Larghezza	415 mm
Altezza	525 mm
Profondità	328 mm
Peso	17,2 kg
Altre caratteristiche	Flangia stativo 36 mm, Impugnatura, Maniglia allungabile, Ruote di trasporto, Telecomando IR per Media Player
