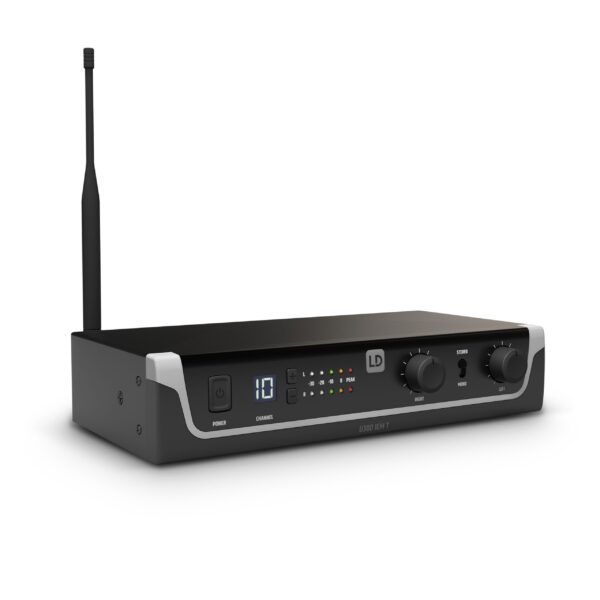

LD Systems U305.1 IEM T – Transmitter
The new LD Systems U300 IEM In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz – 608 MHz, 655 MHz – 679 MHz, 823 MHz – 832 MHz + 863 MHz – 865 MHz, 470 MHz – 490 MHz, or 514 MHz – 542 MHz.
The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz – 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD U300 IEM permits simultaneous operation of up to 6 systems.
Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more.
* license-free: ISM band license-free in Europe, please check duplex gap for your specific country
Tipo di prodotto | Accessori per monitoraggio in-ear |
Tipo | Trasmettitori |
Campo di radiofrequenze | 514 – 542 MHz |
Canali | 12 |
Modalità di funzionamento | Mono/Stereo |
Modo di trasmissione | FM, mono/stereo |
Risposta in frequenza | 50 – 16.000 Hz |
Rapporto segnale/rumore | 90 dB |
Fattore di distorsione armonica (THD) | <0,5% |
Dinamica | 88 dB |
Ingressi | 2 |
Connessioni ingressi | Jack da 6,3 mm, XLR |
Impedenza di ingresso (kOhm) | 8,5 kOhm |
Presa dell’antenna | BNC |
Elementi di comando | Interruttore mono/stereo, Livello di ingresso, Power On/Off |
Indicatori | Schermo a cristalli liquidi |
Potenza assorbita | 1,7 W |
Alimentazione | 12 – 18 V DC |
Larghezza | 212 mm |
Altezza | 43 mm |
Profondità | 123 mm |
Peso | 0,66 kg |
Accessori (forniti in dotazione) | Alimentatore, BNC, Kit di montaggio su rack da 19 |
