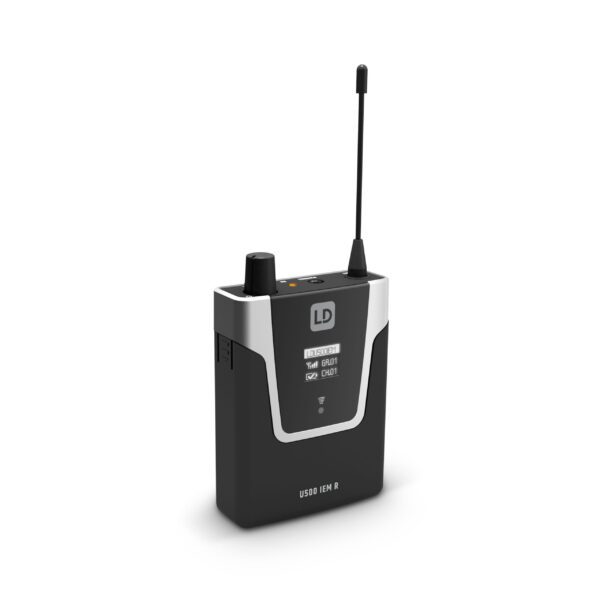

LD Systems U505.1 IEM R – Ricevitore
Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems’ noise floor is exceptionally low.
Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo and mono modes of operation
- High-contrast OLED display
- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- U500® IEM transmitter compatible with U300® IEM bodypacks
Tipo di prodotto | Accessori per monitoraggio in-ear |
Tipo | Ricevitori |
Campo di radiofrequenze | 514 – 542 MHz |
Canali | 12 |
Modo di trasmissione | FM, mono/stereo |
Risposta in frequenza | 40 – 16000 Hz |
Uscite audio | Jack stereo da 3,5 mm |
Minima impedenza collegata | 16 Ohm |
Livello di uscita audio massimo | 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW |
Presa dell’antenna | Fissata alla cassa |
Elementi di comando | Down, On / Off, Up, Volume |
Indicatori | Display OLED multifunzione, RF (LED) |
Alimentazione | 2 x 1,5 V AA |
Durata d’uso | < 10 Std. |
Larghezza | 64 mm |
Altezza | 100 mm |
Profondità | 24 mm |
Peso | 0,095 kg |
Accessori (forniti in dotazione) | 2 x batterie AA, Antenna |
Caratteristiche | LED di stato della batteria |
