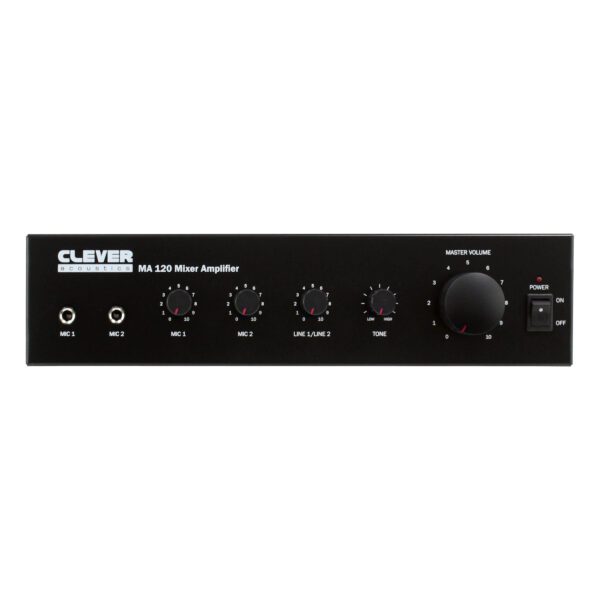

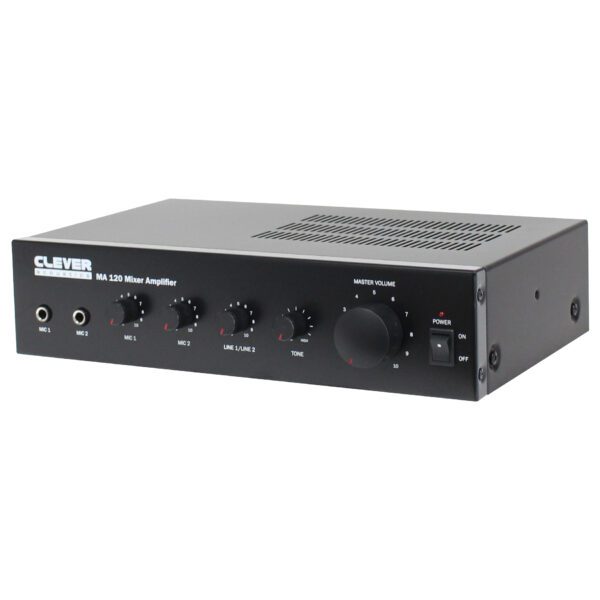

MA 120 100V 20W Mixer Amplificato

The MA 120 is a compact, desktop mixer amplifier suitable for small offices, retail spaces and garage forecourts. The 12V DC input allows the amplifier to be powered from DC power backup sources or alternatively from leisure type batteries for sound reinforcement in remote locations away from mains power.

3 year warranty, 100V and low impedance 416Ohm loudspeaker output, Two unbalanced microphone inputs via 6.35mm (¬” jack) each with independent level controls, PhonoRIAA/LINE inputs (switchable) with level control, Master tone control, Master volume control, Screw terminal loudspeaker outputs with touch proof cover, Captive power connection, Convection cooled for silent operation

Power output: 20Wrms (40W peak), Speaker output: 100V and 416*Ohm, Microphone sensitivity: 48dB (ñ2dB), Aux input sensitivity: 12dB (ñ2dB), Frequency response: 100Hz13kHz (ñ3dB), Tone control: ñ10dB, S/N ratio: >55dB, THD: <1% (@1kHz 1W output), Power consumption: 22W (max.), Power supply: 240V AC 50Hz / 12V DC (2.5A), Fuse: T500mA 250V, Dimensions: 84 x 320 x 235mm, Weight: 4.2kg

Manuale in PDF da scaricare
