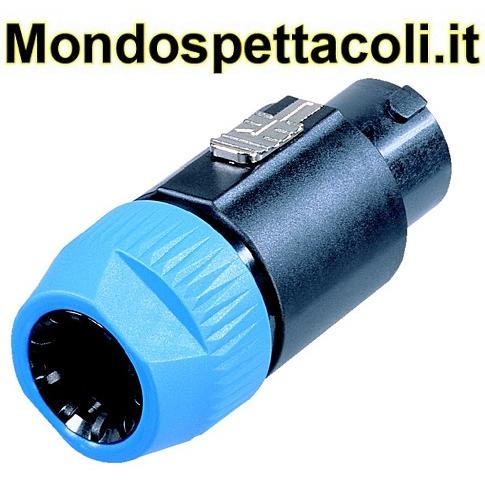

Neutrik speakon NL8FC

8 pole cable connector, latch lock, chuck type strain relief for cables 8 – 20 mm diameter, 30 A continuous per contact

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.



Features & Benefits

Current rating 30 A rms continuous

Reliable and robust, easy and fast to assemble

Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)

Accurate and dependable twist lock latching system “Quick Lock”

High impact material for insert and housing, long-lasting and dependable

Chuck type strain relief system for secure clamping of cable

Product

TitleNL8FC

Connection TypespeakON

Genderfemale

Electrical

Contact resistance≤ 3 mΩ (after lifetime)

Dielectric strength4 kVdc (peak)

Insulation resistance> 1 GΩ (after dampheat)

Rated current per contact30 A rms continuous

Rated current per contact40 A audiosignal, duty cycle 50 %

Rated voltage250 V (Insulation)

AttentionspeakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Cable O.D.8 – 20 mm

Cable retention≥ 220 N (subject to cable O.D. and material)

Lifetime> 5000 mating cycles

Wiresize4 mm²

Wiresize12 AWG

Wiringscrew type terminals or soldering

Locking deviceQuick Lock (latch)

Material

Contact plating4 µm Ag

ContactsBrass (CuZn39Pb3)

InsertPBTP 20 % GR

Locking elementZinc diecast (ZnAl4Cu1)

ShellPolyamide (PA 6 30 % GR)

Strain reliefPolyacetal (POM)

Environmental

FlammabilityUL 94 HB

SolderabilityComplies with IEC 68-2-20

Temperature range-30 °C to +80 °C
