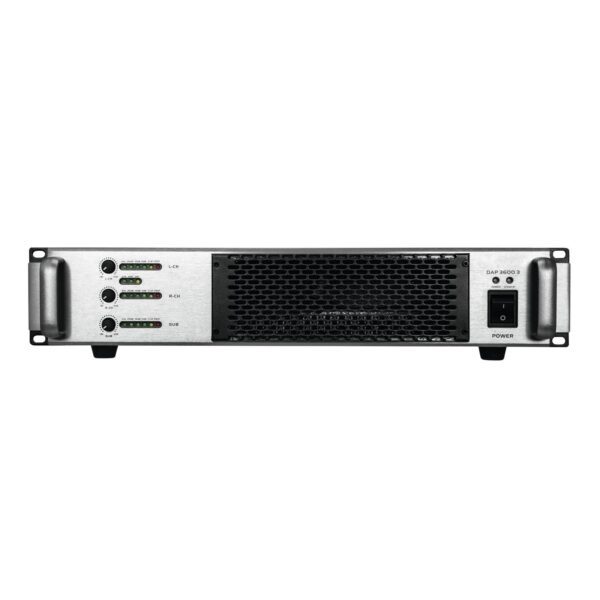

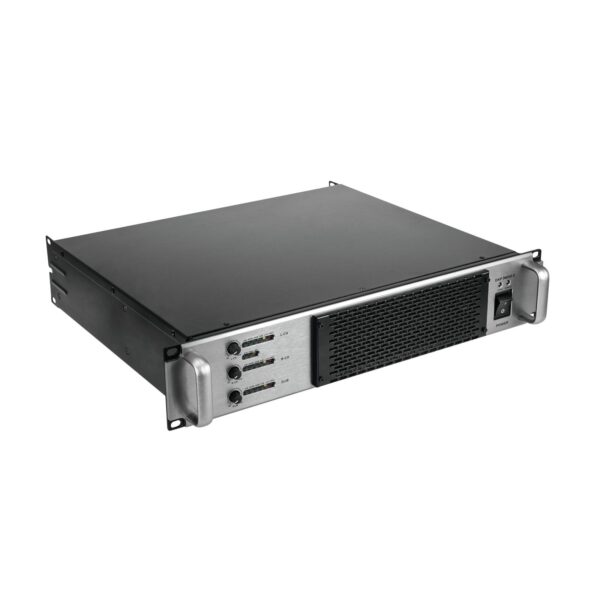

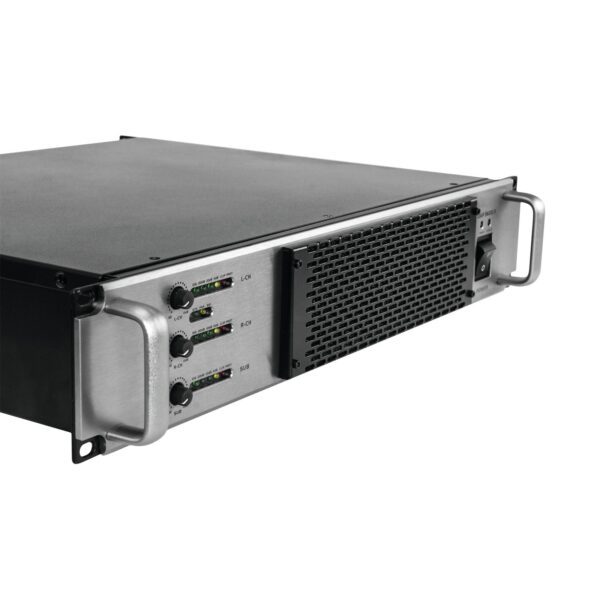

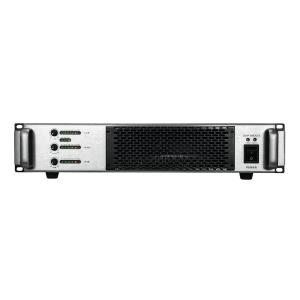

OMNITRONIC A-3603 Class-D 2.1 Amplifier
665,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Powerful 3-channel amplifier – for classic 2.1 applications with two top and one sub speaker
The A-3603 produces enough power to supply large speaker system with up to a maximum of 3600 watts, 4 ohms (2000 W sub and 2 x 800 W tops). Enough potential you can use in clubs, lounges, restaurants, dancing schools and fitness studios and the like.
Set the frequency between the tops and subs with the inbuilt crossover. It also features a bypass function, which enables you to connect ahead a DSP speaker management system. You can as well switch from 2 stereo input channels to 3 separate channels. Save weight when you have to move it and save space when you mount it – the Class D construction and the switching power supply technology help you to do so.
3-channel PA amplifier with crossover network – 4 ohms: 1 x 2000 W, 2 x 800 W
- 3-channel PA amplifier with class D circuitry and switch mode power supply
- Adjustable crossover frequency for satellites and subwoofer
- 2.1 operation or 3-channel operation selectable
- 3 level controls
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power output (RMS): | |
| 4 ohms: | 1 x 2000 W, 2 x 800 W |
| 8 ohms: | 1 x 1000 W, 2 x 400 W |
| Signal-to-Noise ratio: | >100 dB |
| Total harmonic distortion: | <0.003 % |
| Damping factor: | >500 |
| Voltage gain: | 41.2 dB |
| Slew rate: | >10 V/µsec |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: | 3 x XLR |
| Output connectors: | 3 x Speaker, 3 x XLR feed-through output |
| Circuitry: | Class D |
| Controls: | Power switch, input attenuators, mode switch 2/3 channels, X-over frequency |
| LED indicators: | protect, clip, 0 dB, – 10 dB, – 20 dB (per channel) |
| Construction: | steel chassis, aluminum front |
| Dimensions: | 483 x 410 x 100 mm |
| Rack installation with 2 U | |
| Weight: | 9,3 kg |
| Power consumption: | 685 1/8 power W |
| Frequency range: | 20 – 20000 Hz |
| Peso | 104,000 kg |
|---|---|
| Dimensioni | 0,1500 × 0,5400 × 0,4500 cm |
| Codice Ean | 4026397629811 |
