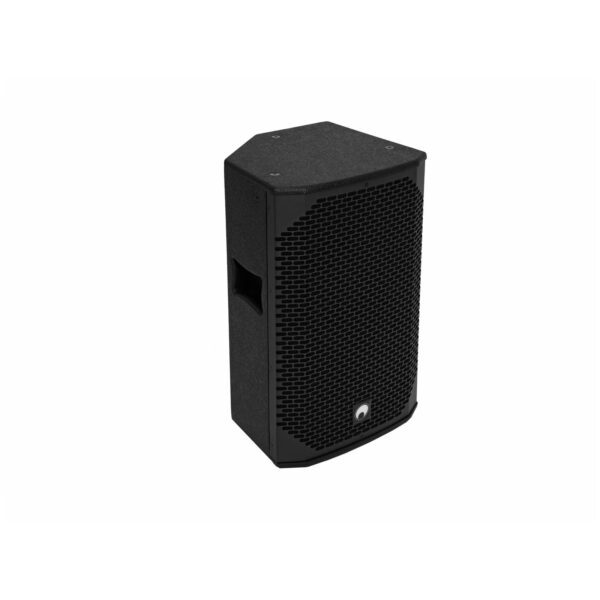

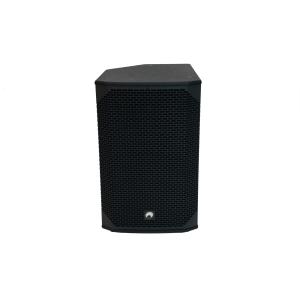

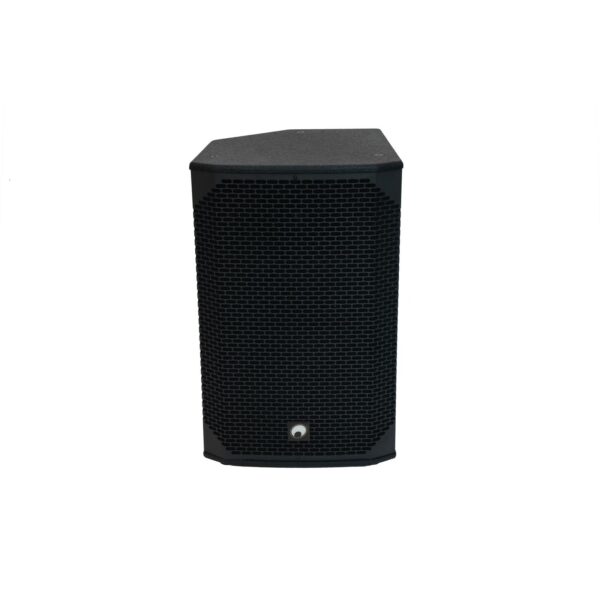

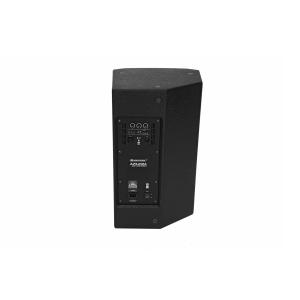

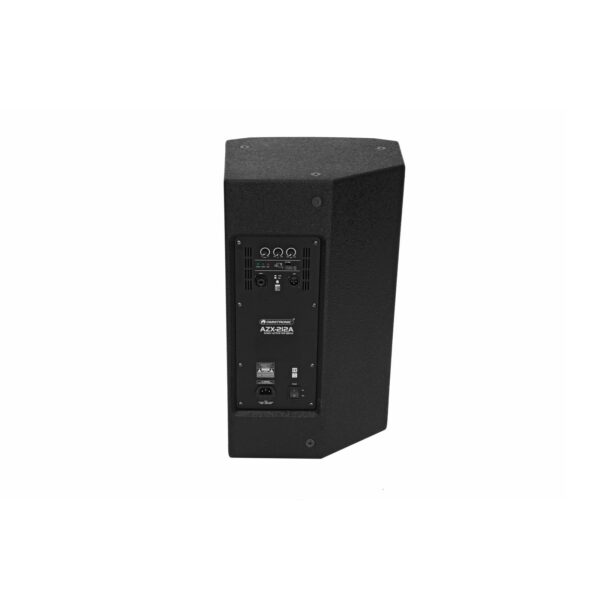

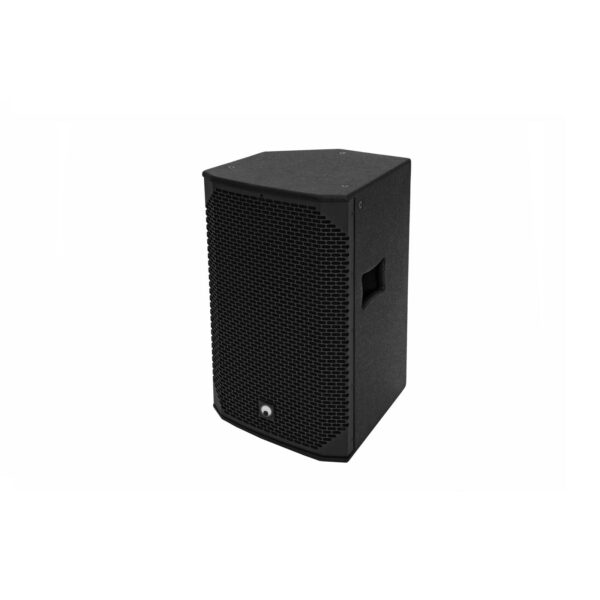

Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Class D biamp amplifier (LF 200 W, HF 50 W)

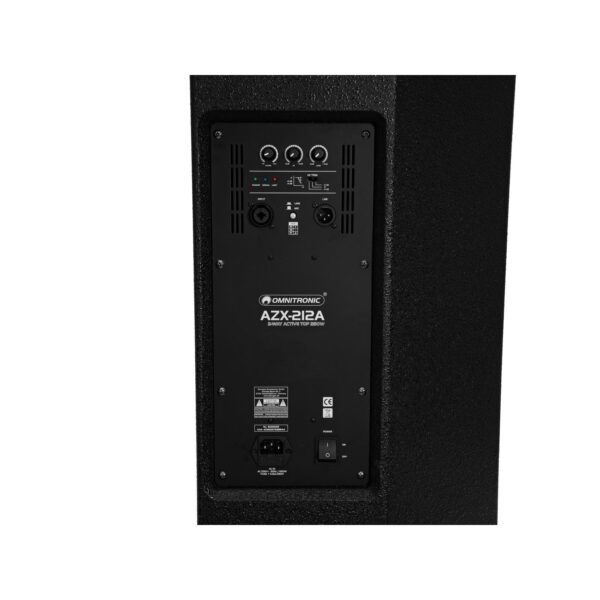

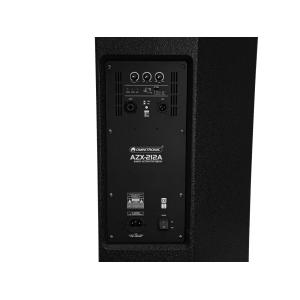

- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- XLR output for linking further active speaker systems
- Master control with 2-band EQ
- HF adjustment -4 dB, -2 dB, 0 dB
- Limiter for overload protection
- Limit, signal and power LED
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- M10 threaded inserts for suspended installation
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- Master Equalizer: 1 x 2 band tone control
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 650 W |
Amplifier power: | 200 W RMS LF, 50 W RMS HF |
LF speaker: | 30 cm bass/mids (12") with 50 mm voice coil |
HF speaker: | 3,5 mm compression driver (1.35") |
Input mic/line: | combination XLR/6.3 mm jack, bal. |
Output line: | XLR, bal. |
Sensitivity: | 95 dB |
Frequency range: | 55 – 20000 Hz |
Number of bass-woofer: | 1 Stück |
Size of woofer: | (12") ca. 30 cm |
Material: | MDF (Medium-density fibreboard) |
Weight: | 19.15 kg |
Width: | 43 cm |
Depths: | 40,5 cm |
Height: | 67 cm |
