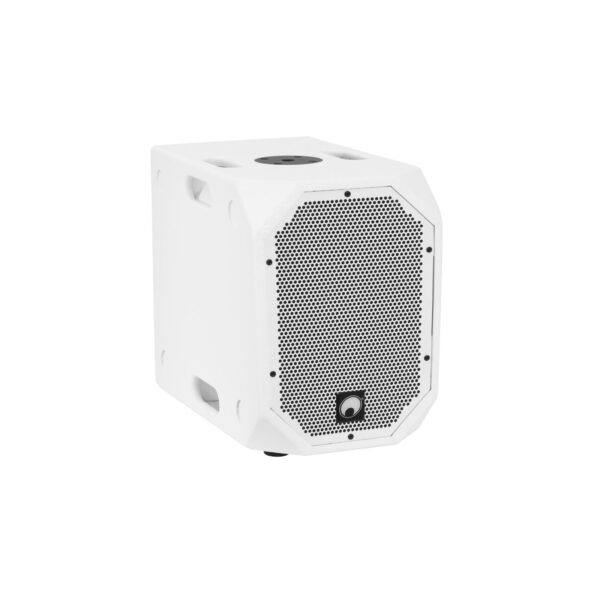

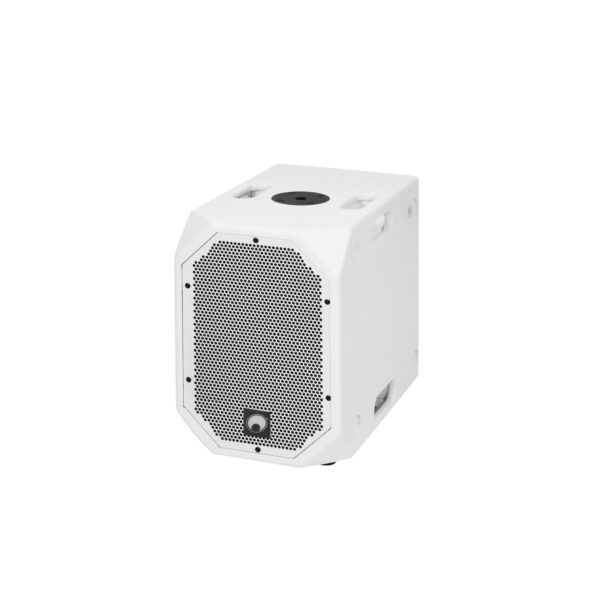

10″ subwoofer with DSP and Bluetooth for the BOB series
- 10″ bassreflex subwoofer with DSP and 900 watts RMS power

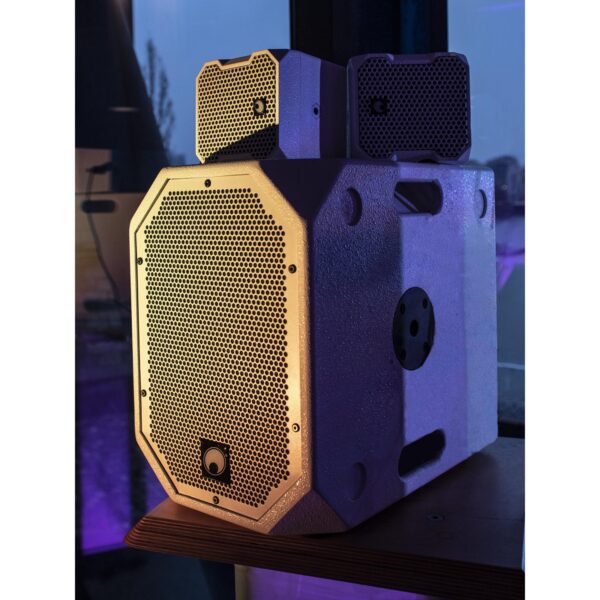

- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover

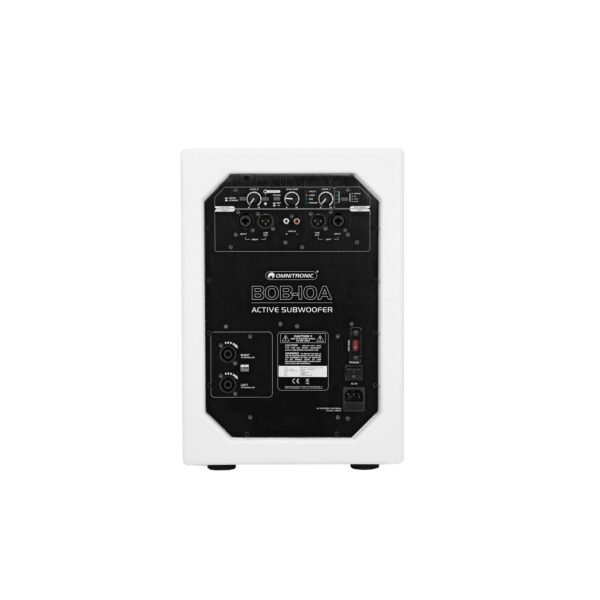

- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Parallel XLR outputs for linking further BOB systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- Two M20 metal flanges for mounting satellite speakers
- MDF enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport

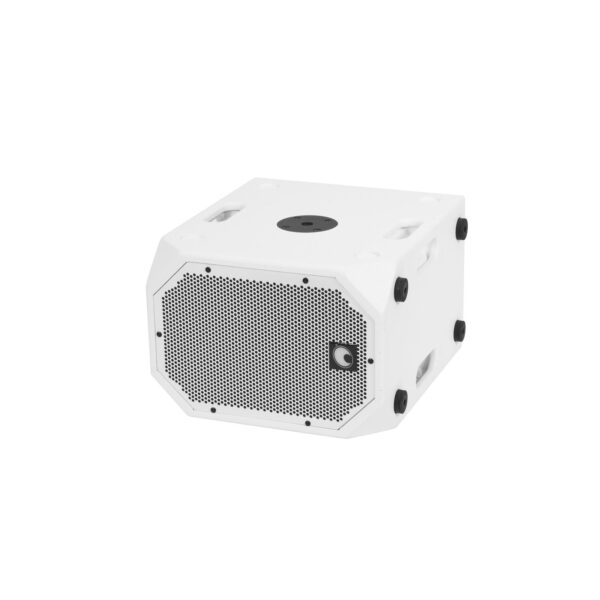

- Stackable via recesses when set up horizontally
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
- Control: Bluetooth
- DSP: Digital signal processor
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 1060 W |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Rated power: | 1 x 300 W RMS LF; 2 x 300 W RMS HF |
Frequency range: | 45 – 250 Hz |
Sensitivity: | 100 dB |
Max. SPL: | 125 dB |
Control: | Bluetooth |
Color: | White |
Circuitry: | Class D |
Input Line: | 3-pin XLR, 6.3 mm plug (unbal.); Stereo RCA, |
Speakers: | 1 x Woofers (10″) approx 25 cm |
1 x Woofers (10″) approx 25 cm | |
1 x Voice coil lows (2″) approx. 5 cm | |
Weight: | 17,00 kg |
Bass | |
Material: | MDF (Medium-density fibreboard) |
Width: | 30 cm |
Height: | 43 cm |
Depth: | 47 cm |
Parallel output: | XLR L/R |
Satellite: | Speaker L/R |
