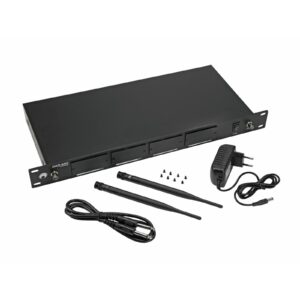

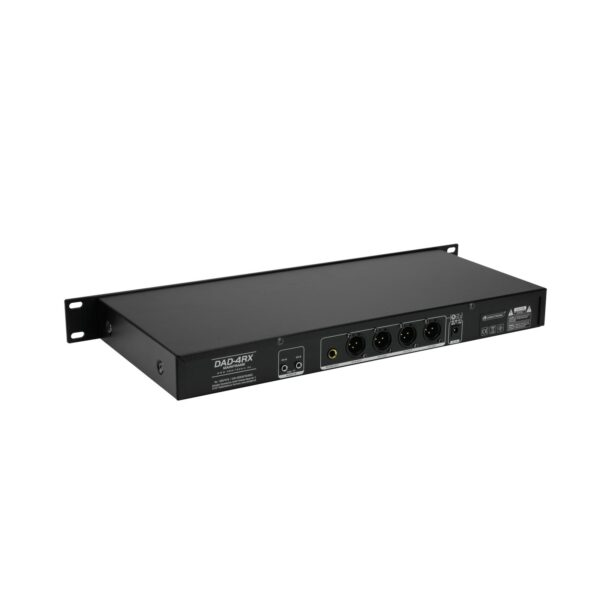

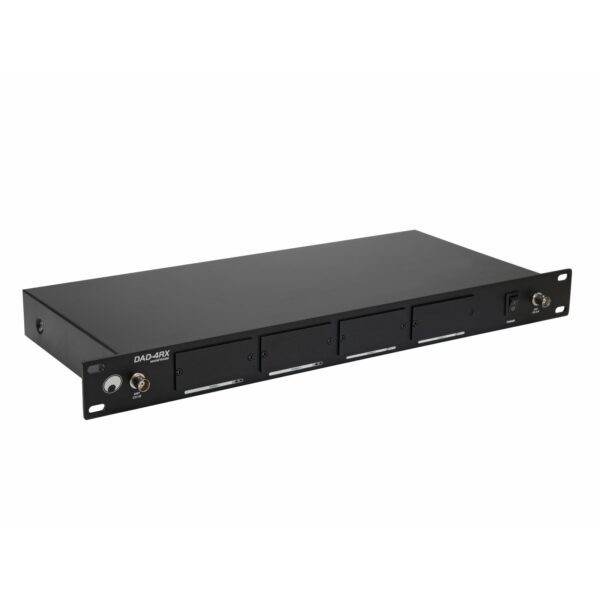

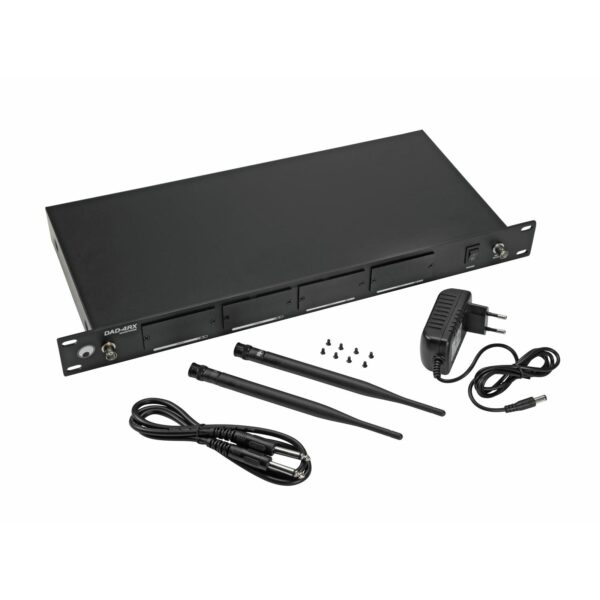

OMNITRONIC DAD-4RX 4-Channel Receiver Housing for MOM/DAD Modules
85,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
4-channel housing for wireless modules of the MOM and DAD series
- 4 insert slots for receiver and transmitter modules of the MOM and DAD series
- Works with MOM and DAD wireless microphones and bodypacks
- Supports the WMT/R-2M wireless system
- Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
- Balanced XLR output per channel
- Unbalanced 6.3 mm jack for mixed signal output
- 2 antenna inputs (BNC)
- 2 AUX inputs (3.5 mm jack) for channel 3 and 4
- Durable metal housing
- (19″) 48.3 cm rack installation 1 U
| Type: | Audio transmission |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | Max. 6 W |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Number of channels: | 4 |
| Connections: | Input: 2 x line via 3.5 mm jack (stereo) mounting version Output: 4 x Microphone via 3-pin XLR Output: 1 x master via 6.3 mm plug (unbal.) |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19″) 48.3 cm rack installation 1 U |
| Dimension: | Width: 48.1 cm Depth: 24.5 cm Height: 4.5 cm |
| Weight: | 2.50 kg |
| Peso | 2,9 kg |
|---|---|
| Dimensioni | 0,0750 × 0,5200 × 0,2500 cm |
| Codice Ean | 4026397665321 |
