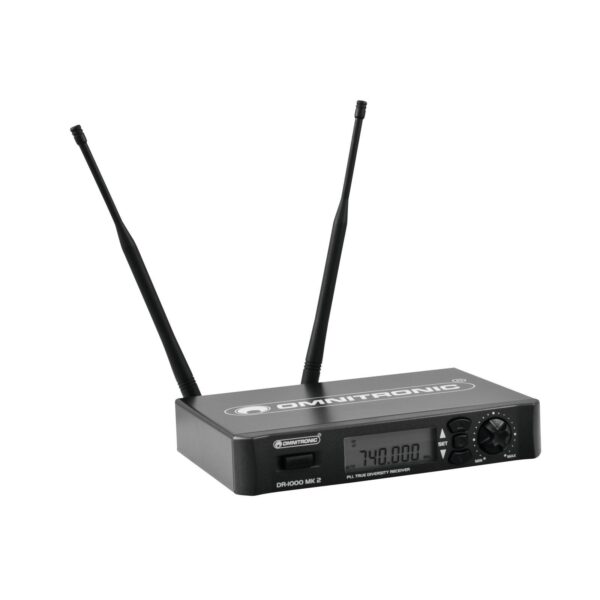

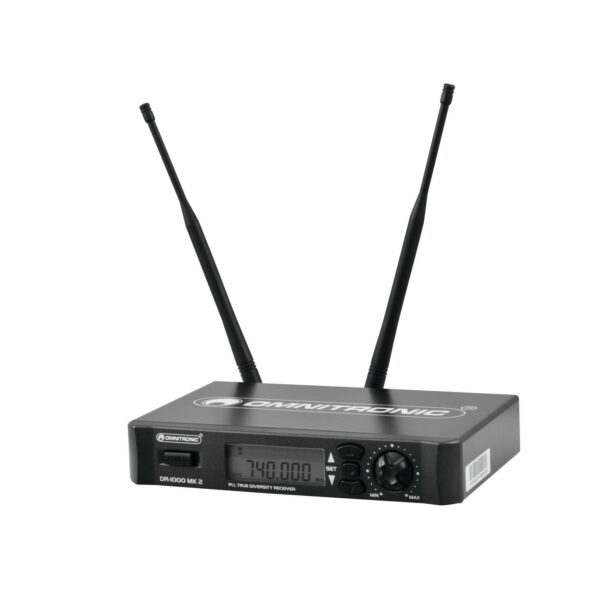

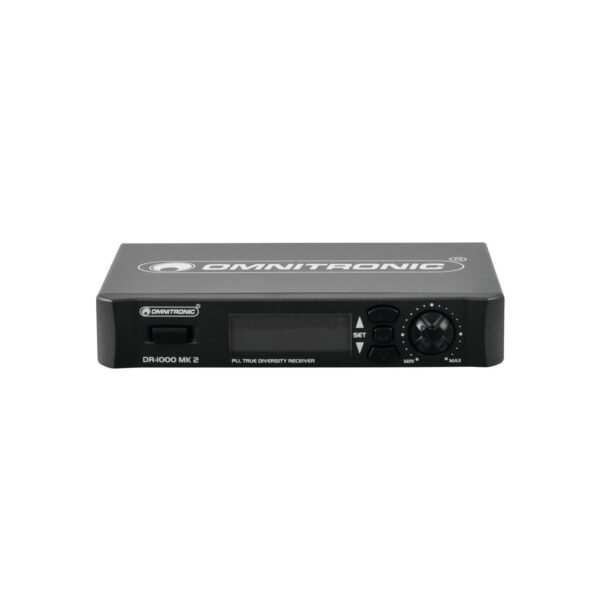

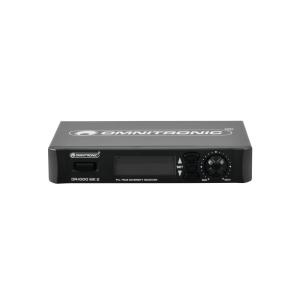

OMNITRONIC DR-1000 MK2 Wireless Receiver
243,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
A variety of options with multi-frequency wireless systems
With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.
With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.
Multifrequency wireless receiver, True Diversity
- Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception
- Two removable antennas (BNC connection)
- Operation in the low-interference UHF band (740-764 MHz)
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- Operation range with line of sight 100 meters
- System expandable to up to 16 receivers with 16 microphones
- LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
- Automatic frequency scan
- Output level control
- Lock function avoids undesired changes by users, also accidental shutdown
- Mute mode when signal is absent or too weak
- 6.3 mm and XLR output

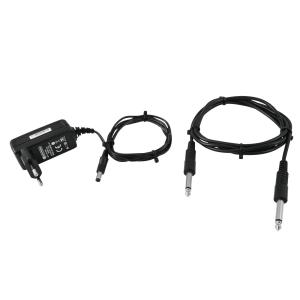

- Operation via supplied power unit
- Rugged metal housing
- Optional mounting frame for rack installation available
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
- License required in Germany
| System: | True diversity, one channel |
| Carrier frequency: | UHF 740-764 MHz |
| Switching bandwidth: | 24 MHz |
| No. of frequencies: | 192 |
| Frequency steps: | 125 kHz |
| Frequency stability: | ±0.005 % |
| T.H.D.: | <0.6 % at 1 kHz |
| S/N ratio: | >105 dB |
| Dynamic range: | >96 dB |
| Modulation method: | FM |
| Coverage: | 100 m (with line-of-sight) |
| AF response: | 40-18000 Hz |
| Audio output: | 3-pin XLR, balanced |
| 6.3 mm jack, unbalanced | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| via supplied power unit | |
| Power consumption: | 6 W |
| Dimensions: | 213 x 150 x 40 mm |
| Weight: | 600 g |
| Peso | 16,500 kg |
|---|---|
| Dimensioni | 0,0950 × 0,2900 × 0,2300 cm |
| Codice Ean | 4026397415339 |
