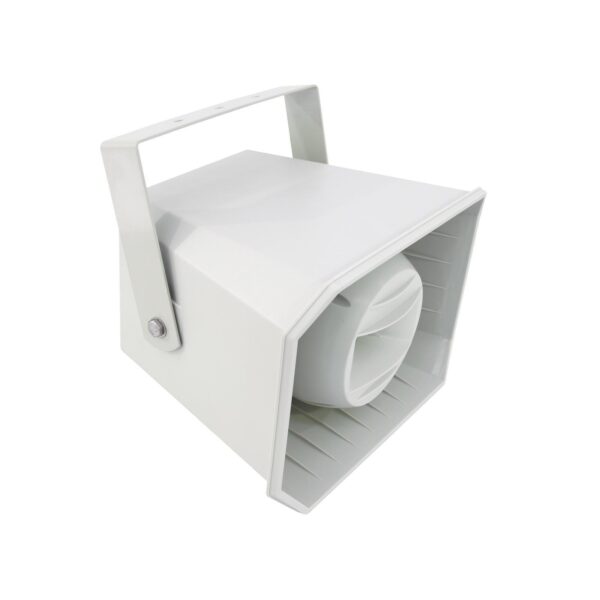

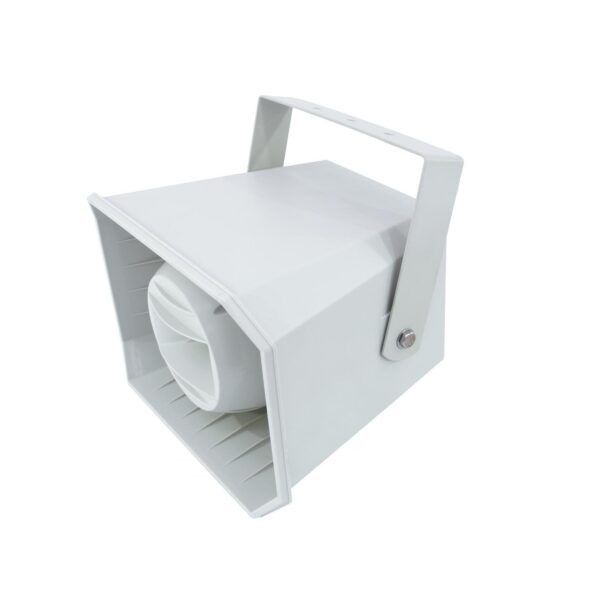

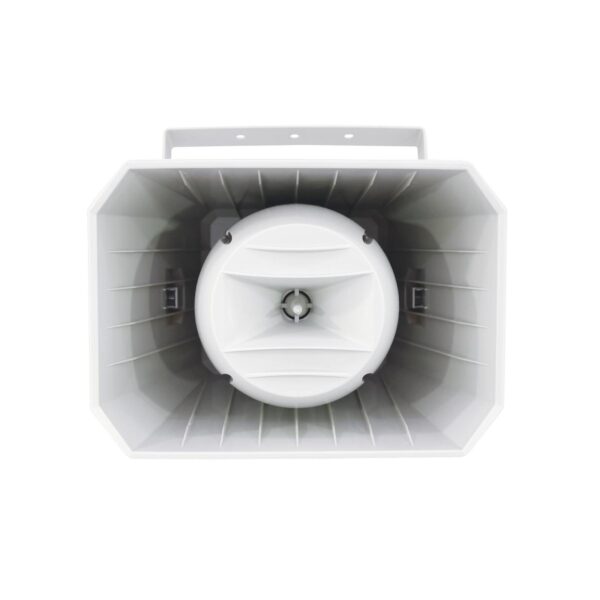

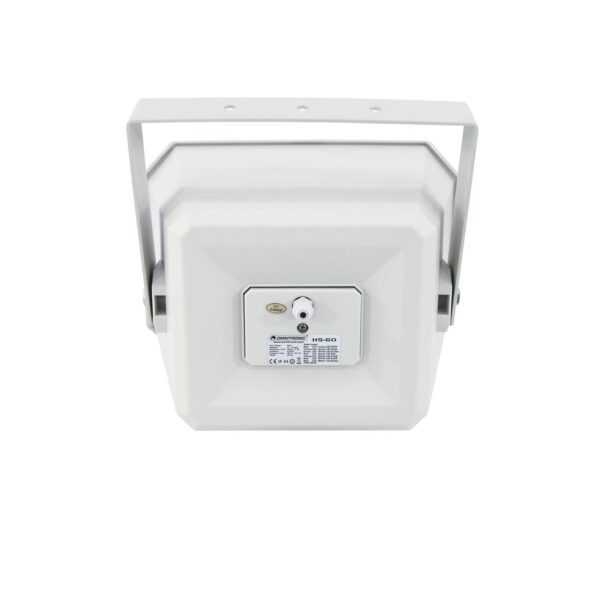

Horn speaker
- 2-way speaker system
- 100 V or 8-ohm operation
- 100 V transformer with 6 power taps and 8-ohm connection
- 15 cm conical speaker (6") and tweeter for extended frequency range
- High sound pressure and wide frequency range
- In weather-proof plastic housing (IP44)
- Screw terminals
- For outdoor amplifying systems in football stadiums, outdoor pools, open air events
Input voltage: | 100 V |
Components: | 15 cm speaker (6"), tweeter |
Rated power: | 3.5 W RMS (red+white) |
4.5 W RMS (yellow+white) | |
9 W RMS (red+green) | |
12.5 W RMS (green+white) | |
25 W RMS (yellow+green) | |
50 W RMS (red+yellow) | |
8 ohms (red+black) | |
Sensitivity: | 99 dB, ±3 dB |
Maximum SPL: | 115 dB |
Frequency range: | 90 Hz – 20 kHz |

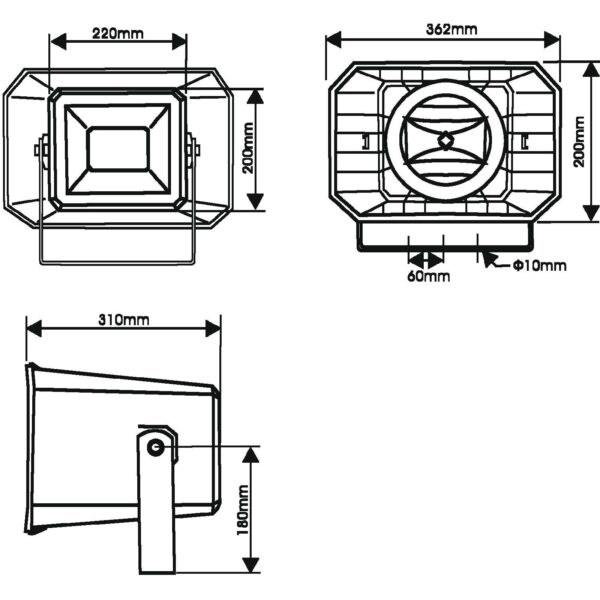

Dimensions (H x W x D): | 363 x 253 x 310 mm |
Protection grade: | IP44 |
Weight: | 3.9 kg |
