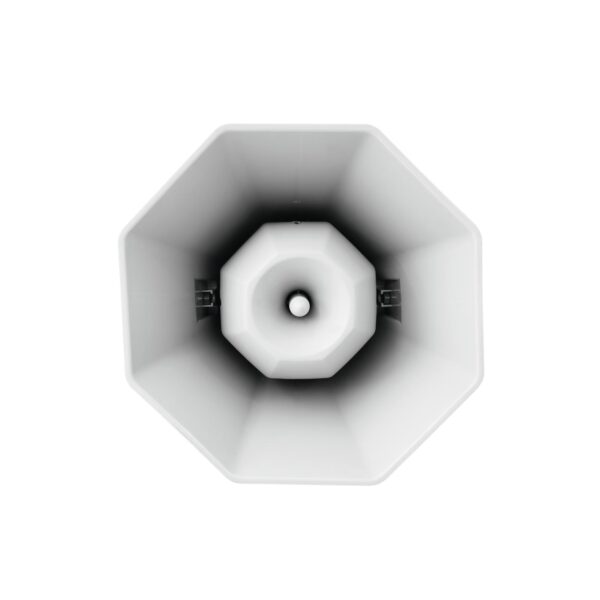

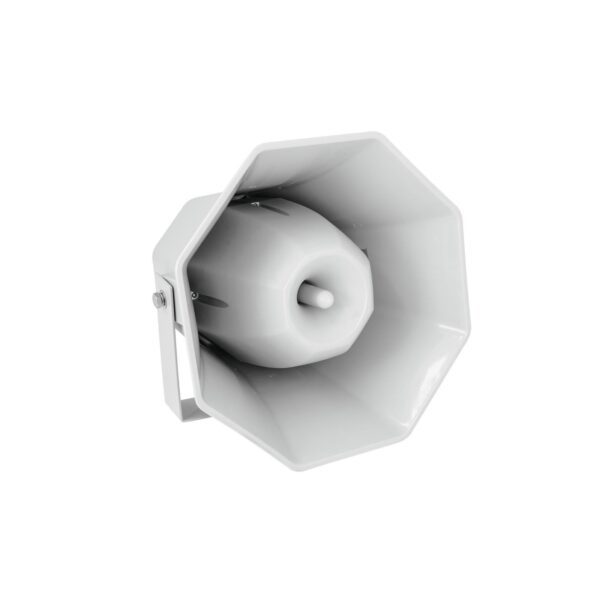

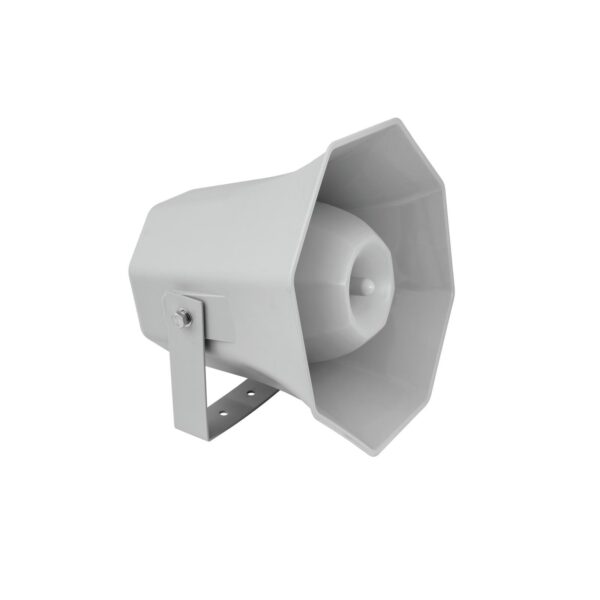

Horn speaker
- 2-way horn speaker for 100 V operation
- 4 power taps (10 W, 20 W, 40 W, 80 W)
- 16.5 cm woofer (6.5") and 2.5 cm tweeter (1")
- PTC tweeter protection
- High sound pressure and wide frequency range
- Weather-proof plastic housing (IP44)
- Octagonal enclosure

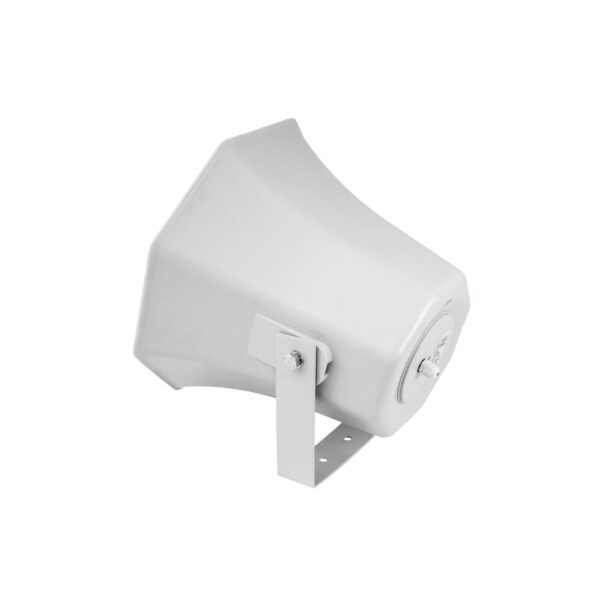

- Swivable mounting bracket
- Connection via terminal strip
- For outdoor amplifying systems in football stadiums, outdoor pools, open air events
Input voltage: | 100 V |
Components: | 16.5 cm woofer (6.5") and 2.5 cm tweeter (1") |
Rated power: | 10 W RMS (green) |
20 W RMS (white) | |
40 W RMS (yellow) | |
80 W RMS (red) | |
COM (black) | |
Sensitivity: | 99 dB |
Frequency range: | 90 Hz – 20 kHz |
Protection grade: | IP44 |
Dimensions (H x W x D): | 348 x 348 x 288 mm |
Weight: | 5.3 kg |
