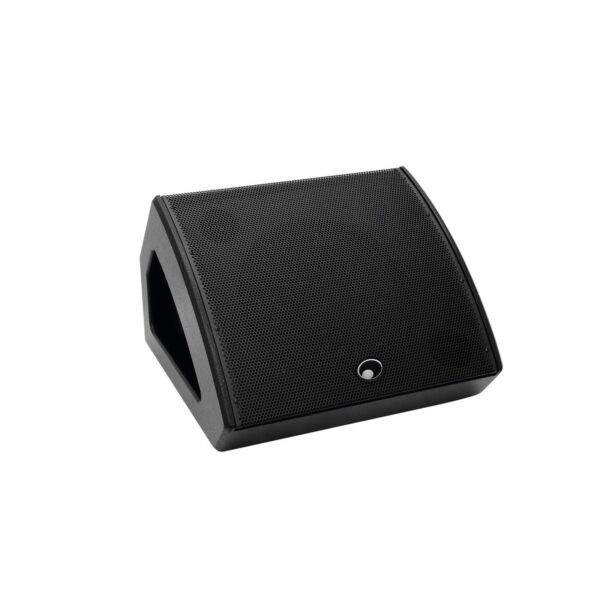

Active coaxial stage monitor
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- Power output LF: 250 W RMS
- Power output HF: 50 W RMS
- 30 cm bass speaker (12") and 3.5 cm compression driver (1.35")
- 80° x 80° nominal coverage
- Bassreflex cabinet provides deep bass and high SPL

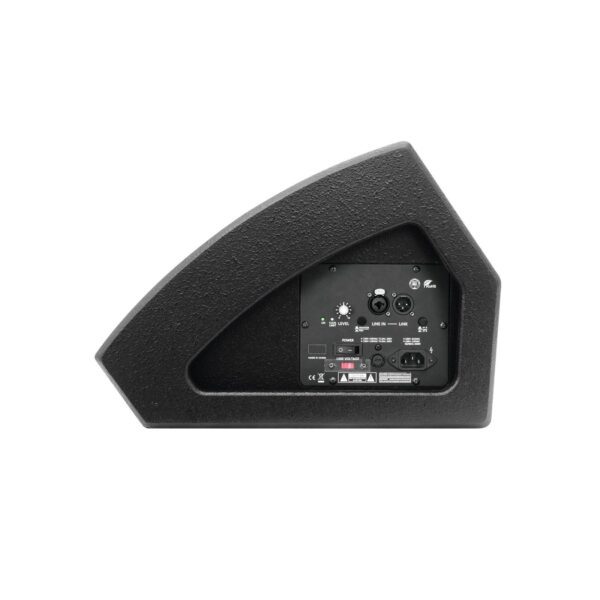

- Line input (XLR/6.3 mm jack)
- Parallel output (XLR) for linking further active speaker systems
- Low cut, volume control
- Dual limiter and overload protection
- Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille

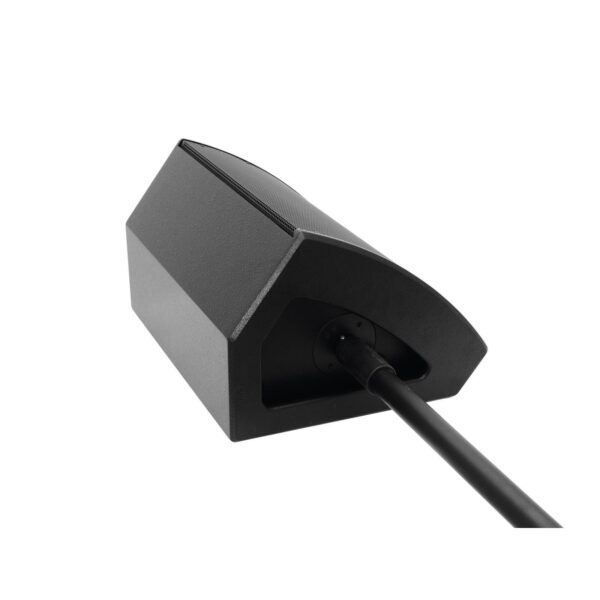

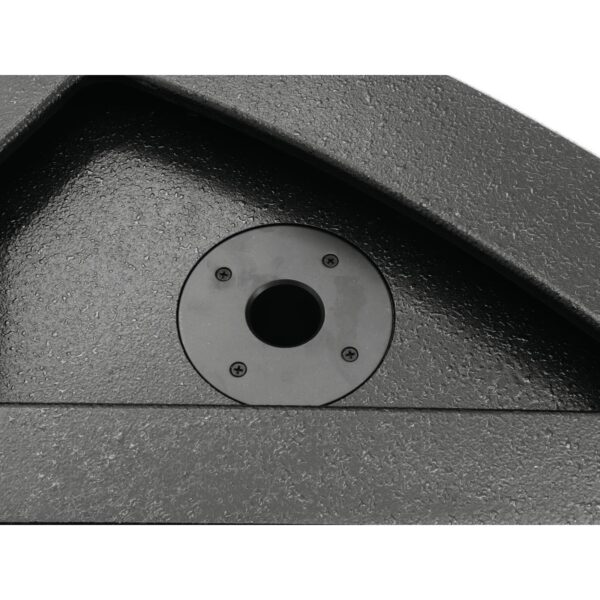

- Flange for stand installation
Power supply: | 115/230 V AC, 50/60 Hz |
Power consumption: | 180 W (1/8 power) |
Amplifier power: | LF: 250 W RMS, HF: 50 W RMS |
Components: | 30 cm woofer (12"), 3.5 cm driver (1.35") |
Input: | combination XLR/6.3 mm jack |
Parallel output: | XLR |
Frequency range: | 50-20000 Hz |
Maximum SPL: | 123 dB (1 m) |
Dispersion angle (HxV): | 80° x 80° |
Dimensions (H x W x D): | 460 x 500 x 340 mm |
Weight: | 15 kg |
