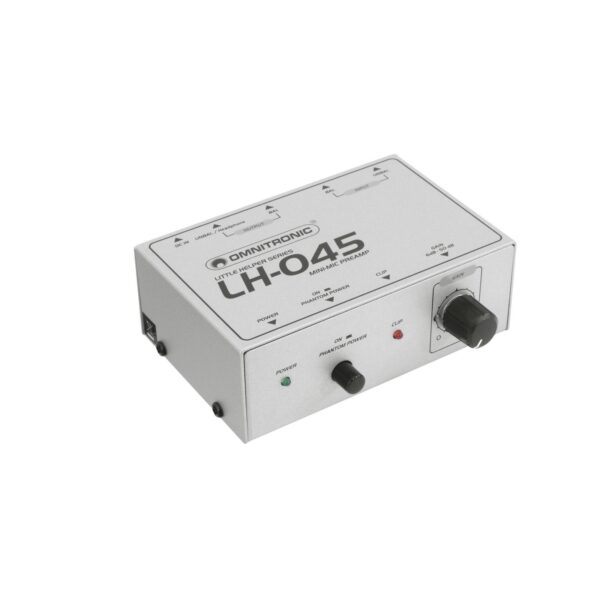

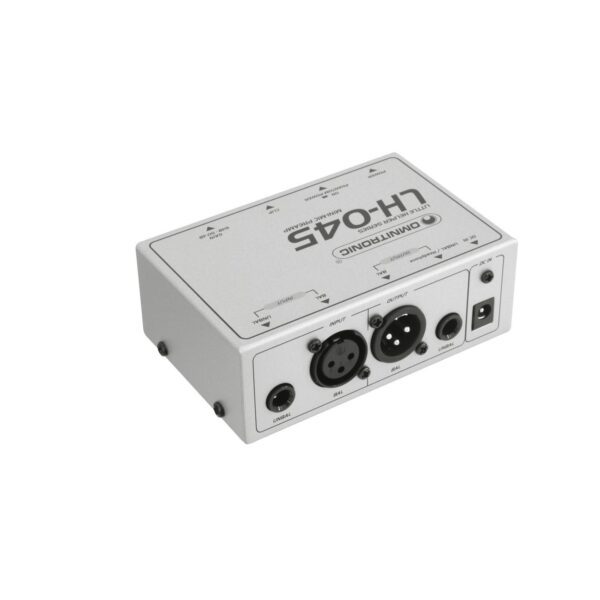

1-channel microphone preamplifier
- 1 microphone, XLR (bal.) or 6.3 mm jack (unbal.)
- Variable gain control (6-50 dB)
- Phantom power can be switched on
- Clip LED
- 1 line output, XLR (bal.) or 6.3 mm (unbal.)
- Operation via supplied power unit
Power supply: | 12 V DC, 150 mA |
Input impedance: | 10 kohms bal./unbal. |
Max. input level: | +4 dB bal./+10 dB unbal. |
Gain: | 50 dB XLR/44 dB jack |
T.H.D.: | 0.01 % |
Frequency range: | 25-16000 Hz |
S/N ratio: | >75 dB |
Dimensions: | 143 x 93 x 45 mm |
Weight: | 350 g |
