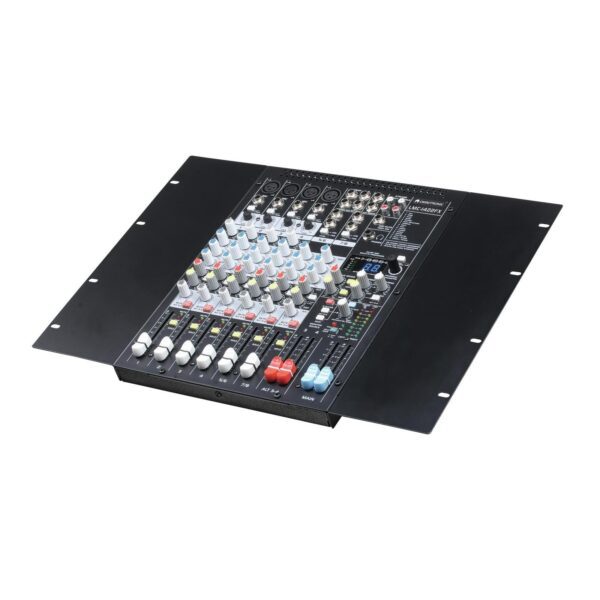

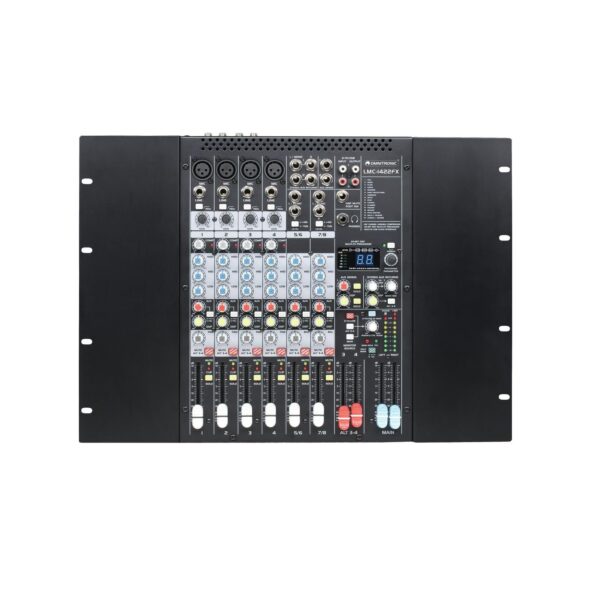

OMNITRONIC LMC-1422FX USB Mixing Console
285,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Professional audio mixer with British-style EQ, compressor, effect unit and USB interface
- 4 mono input channels with gain control, 3-way EQ, low cut and pan control
- 2 stereo input channels with 3-way EQ, level selection and balance control
- State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
- Exceptional British EQs for warm and musical sound
- Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
- 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 2 aux sends per channel: aux 1 pre/post-fader switchable for monitoring/FX applications, aux 3 post fader for internal FX
- ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
- 2 stereo aux returns with flexible routing
- Clip LEDs and routing switches for mute and solo/PFL on all channels
- Balanced main mix outputs with gold-plated XLR connectors
- Control room/phones outputs with multi-input source matrix
- CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
- Precise 8-digit level meter
- FX mute with remote control via footswitch
- +48 V phantom power, can be switched centrally
- Incl. brackets for rack installation
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| Inputs: | |
| Mic: | XLR balanced; 2.6 kohms |
| Line (mono): | 6.3 mm jack balanced; 10 kohms, |
| Line (stereo): | 6.3 mm jack L/R balanced; 20 kohms |
| 2-Track: | RCA L/R; 10 kohms |
| Aux Return: | 6.3 mm jack L/R balanced; 10 kohms |
| Outputs: | |
| Master: | XLR L/R balanced; max. +28 dBu |
| ALT 3-4: | 6.3 mm jack balanced; max. +22 dBu |
| Control Room: | 6.3 mm jack L/R unbalanced; max. +22 dBu |
| Aux Send: | 6.3 mm jack L/R unbalanced; max. +22 dBu |
| Tape Out: | RCA L/R; max. +22 dBu |
| Headphones output: | 6.3 mm jack unbalanced; max. +19 dBu |
| Headphones impedance: | >8 ohms |
| USB interface: | type B, 16 bit/48 kHz |
| Frequency range: | 20-20000 Hz |
| Distortion: | 0.05 % |
| S/N ratio: | 110 dB |
| Crosstalk: | 89 dB |
| Low Cut: | 75 Hz, 18 dB/octave |
| Phantom power: | +48 V |
| Tone control mono channels: | |
| Treble: | ±15 dB at 12 kHz |
| Middle: | ±15 dB at 100-800 Hz |
| Bass: | ±15 dB at 80 Hz |
| Tone control stereo channels: | |
| Treble: | ±15 dB at 12 kHz |
| Low middle: | ±15 dB at 3 kHz |
| High middle: | ±15 dB at 500 Hz |
| Bass: | ±15 dB at 80 Hz |
| Dimensions (L x W x H): | 400 x 480 x 127 mm (incl. rack brackets) |
| Weight: | 4.5 kg |
| Peso | 53,000 kg |
|---|---|
| Dimensioni | 0,2000 × 0,4400 × 0,3300 cm |
| Codice Ean | 4026397565515 |
