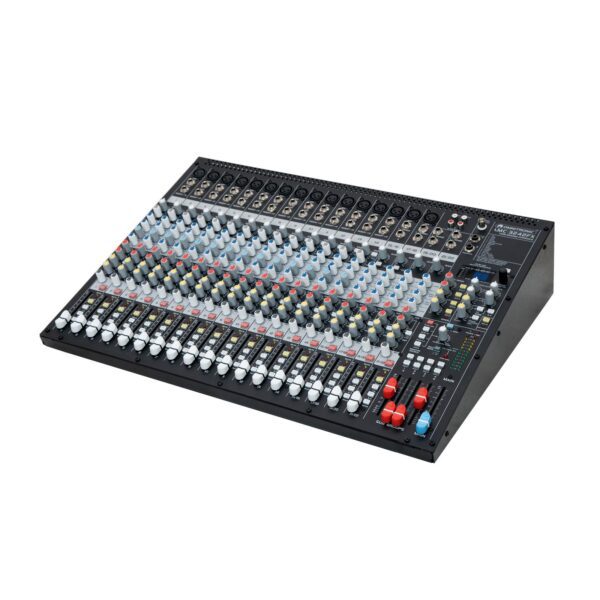

OMNITRONIC LMC-3242FX USB Mixing Console

Professional live mixing consoles with British EQ, FX unit and USB interfaceEffortlessly achieve the right sound with the LMC series by OMNITRONIC! The incredibly user-friendly mixing consoles provide a warm, natural sound with outstanding audio parameters, an extensive set of features and maximum reliability – ideal for professional studio recordings, live performances, and fixed PA installations. Especially the 2022FX has several useful features that are unparalleled in this price range: feedback detection system, voice canceller, and 3D stereo surround effect.All mono channels feature extremely low-noise, top-notch microphone preamps that offer an extraordinary 130 dB of dynamic range, and a bandwidth ranging from below 10 Hz to over 200 kHz for crystal-clear signal reproduction. The incredibly warm and natural equalizers used for all channel strips are based on classic “British EQ” circuitry from mixing consoles of the ’60s and ’70s. Additionally, your LMC series mixing console has a studio-grade compressor with easy one-knob functionality on each mono channel plus a 24-bit FX processor with 16 editable effects which can be added to individual channels, busses or the main mix. Utilizing the built-in USB audio interface with up to 48 kHz sample rate, you can link your Windows or Mac computer and record your sessions instantly.

Professional audio mixer with British-style EQ, compressor, effect unit and USB interface

• 14 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
• 14 inserts for flexible connection of outboard equipment on each mono channel
• 4 stereo input channels with gain control, 4-way EQ, low cut (ch. 15-18) and balance control
• State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
• Exceptional British EQs for warm and musical sound
• Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
• 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• Intelligent feedback detection system makes eliminating feedback frequencies easy
• 4 aux sends per channel: 2 pre/post-fader switchable for flexible routing
• 4 subgroups with separate faders and outputs for added routing flexibility
• 4 stereo aux returns with flexible routing
• 14 direct outputs for recordings
• Clip LEDs on all channels
• Routing switches for mute, main mix, subgroup and solo/PFL on all channels
• 2 separate main mix outputs with inserts
• 2 phones and control room outputs with multi-input source matrix
• CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
• Precise 12-digit level meter
• BNC lamp socket
• FX mute with remote control via footswitch
• +48 V phantom power, can be switched centrally
• Incl. brackets for rack installation
• DSP: Digital signal processor
• PC connect: USB
