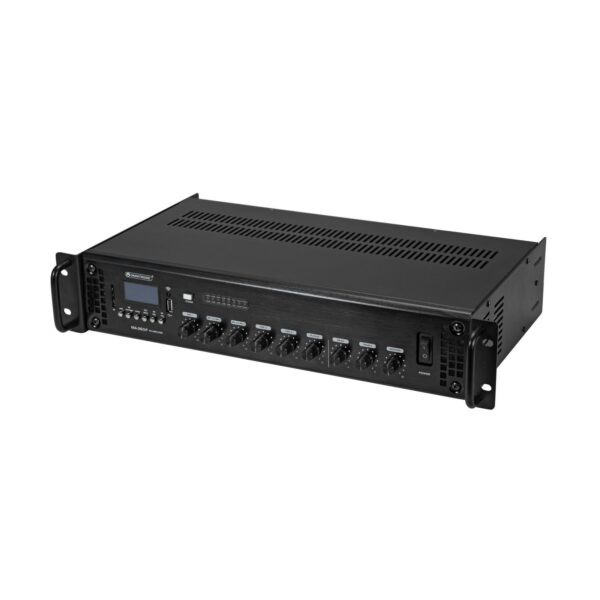

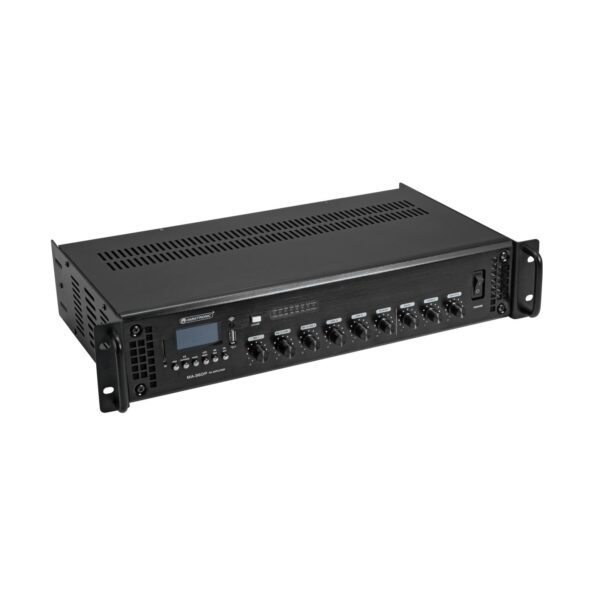

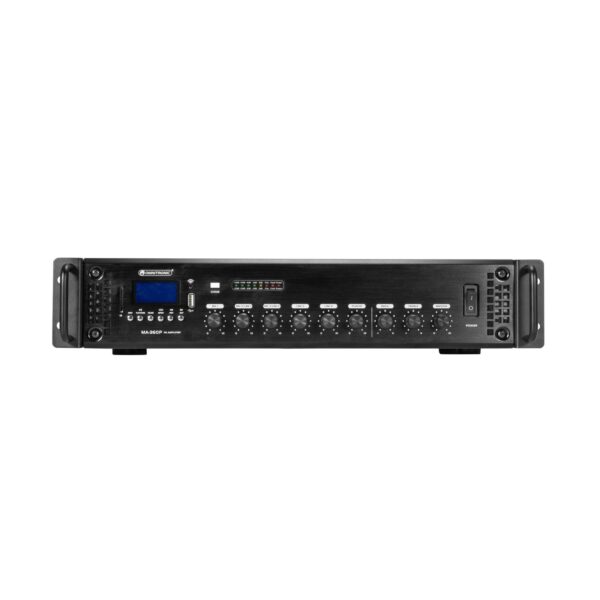

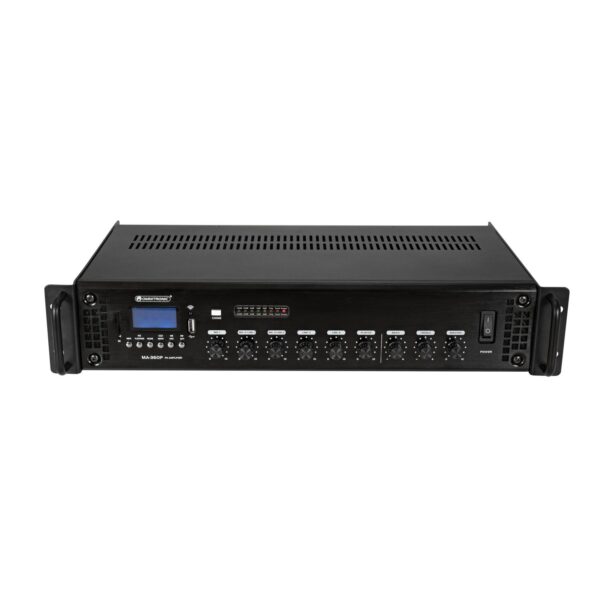

PA mono mixing amplifier with MP3 player, Bluetooth and IR remote control, 360 watts
- PA outputs for 70 V or 100 V PA speakers
- PA outputs for low-impedance speakers (4-16 ohms)
- Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- SD card slot and USB port
- Folder navigation, repeat functions and random play
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Chime, switchable
- Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
- The device is cooled by cooling fan
- Controlling by IR remote control; Bluetooth
- (19″) 48.3 cm rack installation 2 U
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 720 W |
Output power: | 360 W RMS |
Power connection: | Fixed power supply cord with safety plug |
Frequency range: | 50 – 18000 Hz |
S/N ratio: | >75 dB Microphone >85 dB line |
THD: | <0,5 % at 1 kHz |
Cooling: | Cooling fan |
Impedance: | Public address systems 100V; 4-16 ohms |
Control: | IR remote control; Bluetooth |
Audio player: | USB + SD + Bluetooth |
Equalizer: | Master: 1 x 2-band tone control mono |

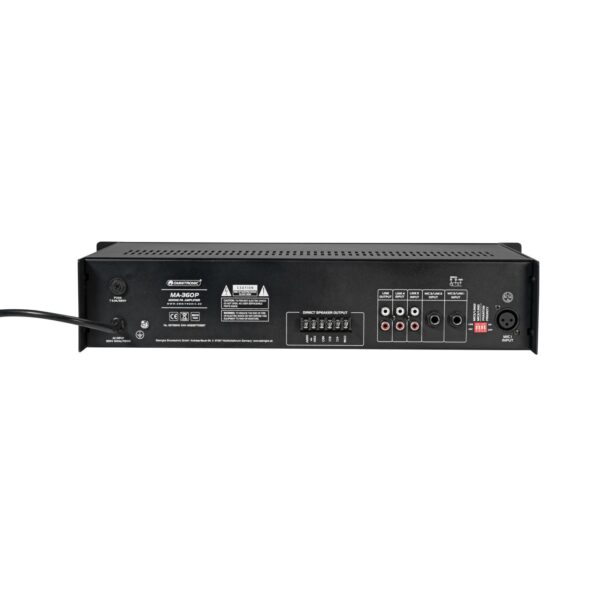

Connections: | Input: Microphone via 2 x 6.3 mm plug (unbal.) Input: Microphone via 1 x 3-pin XLR Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA 0,3 V Output: speaker via screw terminal |
Format: | MP3 |
Number of files: | Max. 999 |
Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
Housing design: | (19″) 48.3 cm rack installation 2 U |
Dimensions: | Width: 48,3 cm Depth: 32 cm Height: 9,2 cm |
Weight: | 14,00 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
