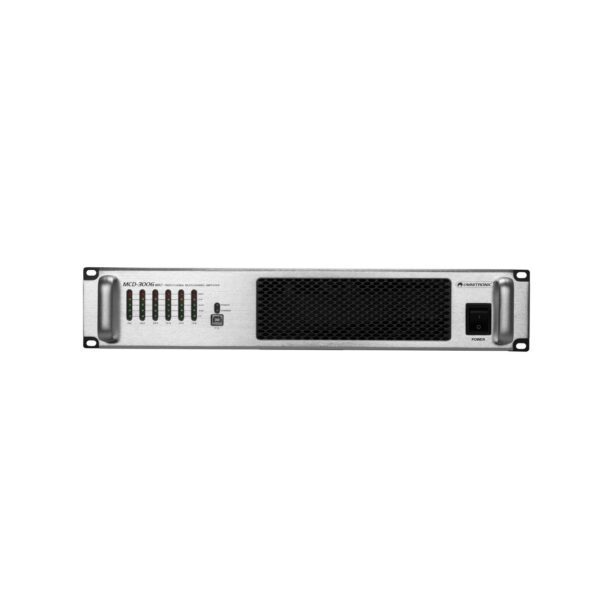

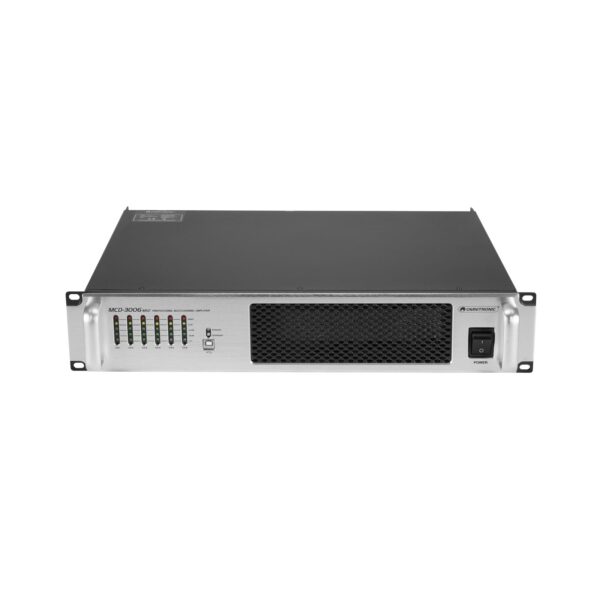

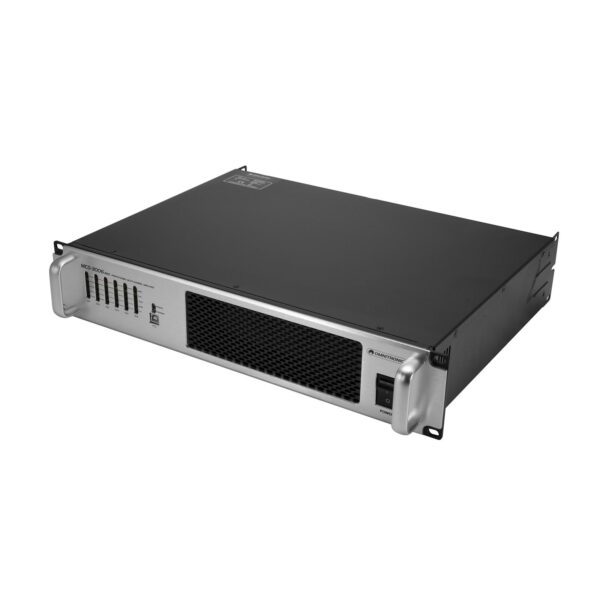

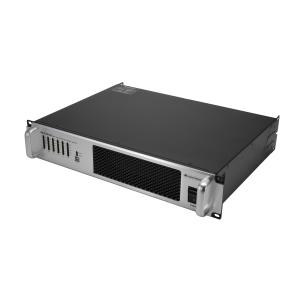

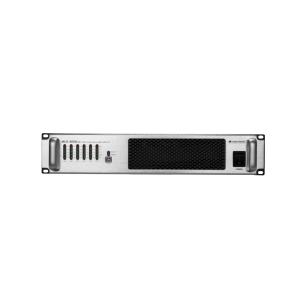

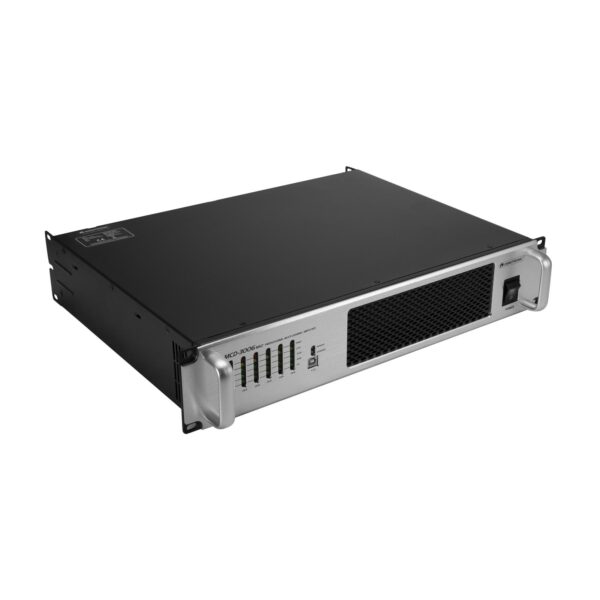

OMNITRONIC MCD-3006 MK2 6-Channel Installation Amplifier
665,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
6-channel PA amplifier with SMPS, 4 ohms: 6 x 500 W, 8 ohms: 6 x 250 W
- PA amplifier with integrated limiter for multi-zone applications
- Signal inputs via balanced XLR mounting jacks and terminal blocks
- Speaker connection via terminal blocks
- Tamper-proof level adjustment on the rear panel
- 3-fold output meter with clip LED per channel
- Speaker switch-on delay
- Rugged steel chassis with aluminum front panel
- Complete protection set
- Air flow from front to rear
- The device is cooled by 2x cooling fan
- (19″) 48.3 cm rack installation 2 U
Package contents
- 1 x Amplifier, 1 x Power cord, 6 x Screw terminal, 4 x Feet, 4 x Screw, 1 x User manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 525 W 1/8 power |
| Output power: | 6 x 250 W RMS (8 ohms) 6 x 500 W RMS (4 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 22 – 25000 Hz |
| S/N ratio: | >120 dB |
| THD: | <0,003 % at 1 kHz |
| Cooling: | 2 x cooling fan , Air flow from front to rear |
| Impedance: | Input 22 kOhm , bal. Input 12 kOhm , unbal. |
| Gain: | 26 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient |
| Status LED: | Power, level meter, clip, protect |

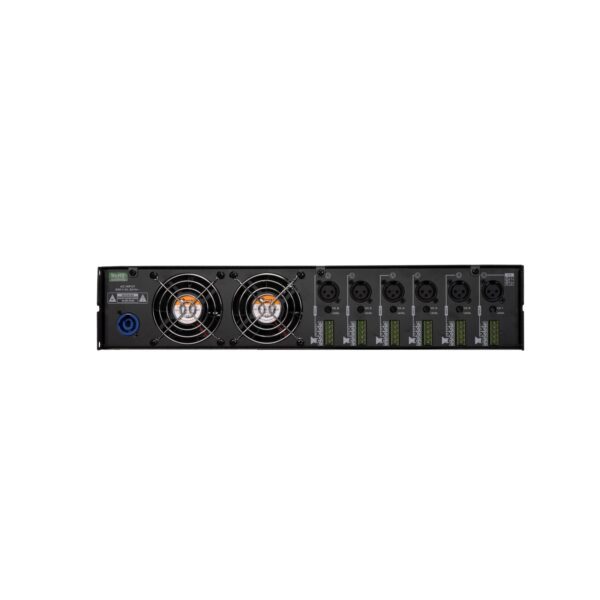

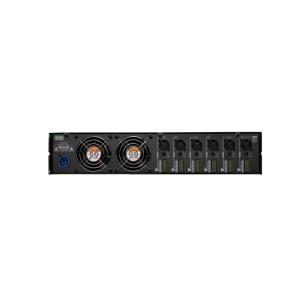

| Connections: | Input: line via 6 x 3-pin XLR Input: line via 6 x screw terminal Link: speaker via 6 x screw terminal |
| Max. level: | Input: +2 V |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 38,8 cm Height: 8,9 cm |
| Weight: | 9,05 kg |
| Peso | 10,1 kg |
|---|---|
| Dimensioni | 0,1500 × 0,5300 × 0,4500 cm |
| Codice Ean | 4026397700213 |
