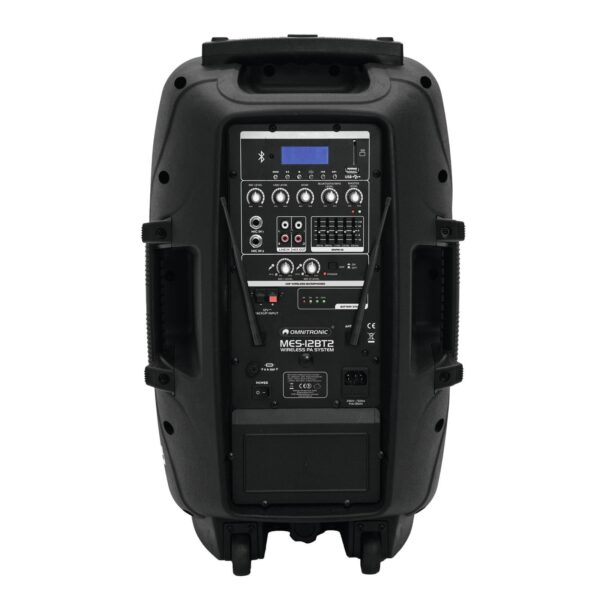

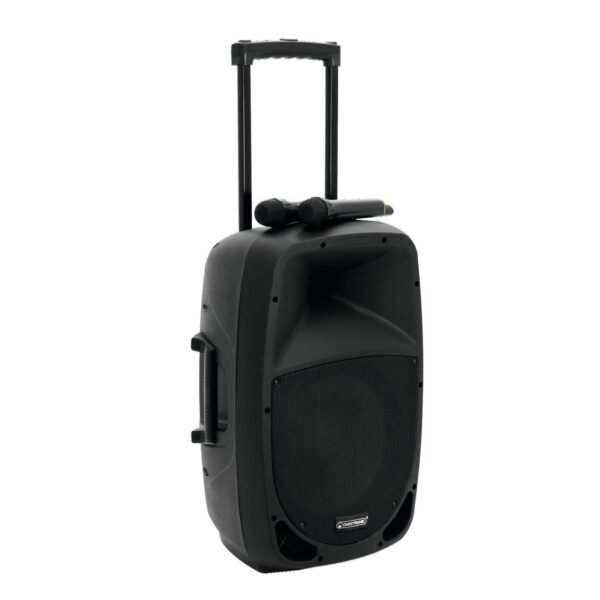

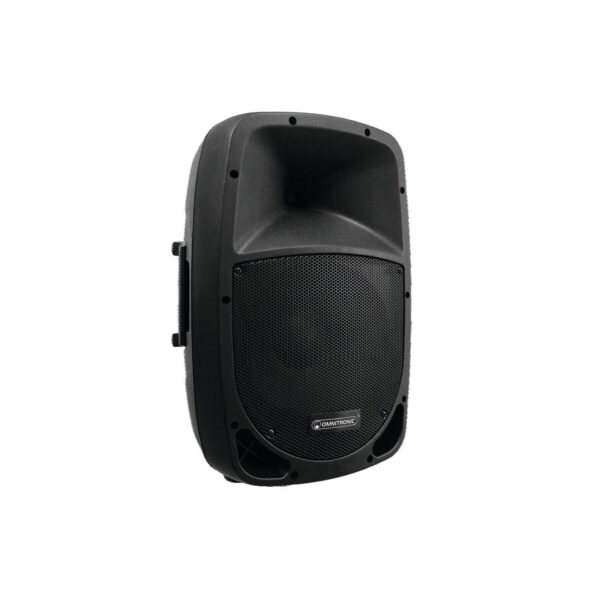

Portable PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
- 3-channel power mixer (45 W RMS) and 2-way speaker system with a 30 cm woofer (12")
- MP3 player with Bluetooth receiver, IR remote control and volume control
- SD card slot and USB input
- Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks
- UHF receiver units and 2 matching wireless microphones
- Mains operation or battery operation for up to 4-5 hours of music playing
- Integrated automatic charging of the battery
- Lead acid battery optionally available (13106993)
- 2 mono microphone channels
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Operation of the hand-held microphones via 2 x AA batteries (not included)
- Light-weight black plastic enclosure with metal grille, monitor shape
- and carrying handles
- Flange for speaker stand installation
- Two wheels and retractable pulling handle for trolley-like mobility
- License-free in large parts of the EU
Power supply: | 230 V AC, 50 Hz |
or 12 V DC via rechargeable battery or external source | |
Power consumption: | 35 VA (1/8 power) |
Rec. battery (accessory): | 12 V DC, 7 Ah |
Battery operation: | 4-5 hours |
Recharging time: | 10-11 hours |
Dimensions (L x W x H): | 310 x 360 x 600 mm |
Total weight: | 11 kg |
Amplfier: | |
Nominal power output: | 45 W RMS |
Maximum power output: | 90 W |
Inputs: | |
Mic, mono: | 2 x 6.3 mm jack, bal. |
Line, stereo: | RCA L/R |
Output: | |
Line, mono: | 2 x RCA |
Speaker system: | |
Components: | 25 cm woofer (10"), 2.5 cm driver (1") |
Frequency range: | 62 Hz – 18 kHz |
Maximum SPL: | 106 dB (1 m) |
Sensitivity: | 90 dB (1 W, 1 m) |
Reception modules: | |
Carrier frequency: | |
Range: | approx. 30 m |
Frequency range: | 70-16000 Hz |
Wireless microphones: | |
Frequency stability: | ±0.005 % |
RF power output: | 10 mW |
Polar pattern: | omnidirectional |
Frequency range: | 70 Hz -16 kHz |
Range: | approx. 30 m |
Battery: | 2 x 1.5 V AA |
Battery life: | 13 hours |
Dimensions (D x L): | 40 x 260 mm |
Weight: | 250 g |
Bluetooth: | |
Carrier frequency: | 2.4 GHz |
Range: | approx. 10 m |
Audio player: | |
Playback format: | MP3, WMA |
Storage media: | USB devices and SD(HC) cards up to 32 GB |
File system: | FAT32 |
