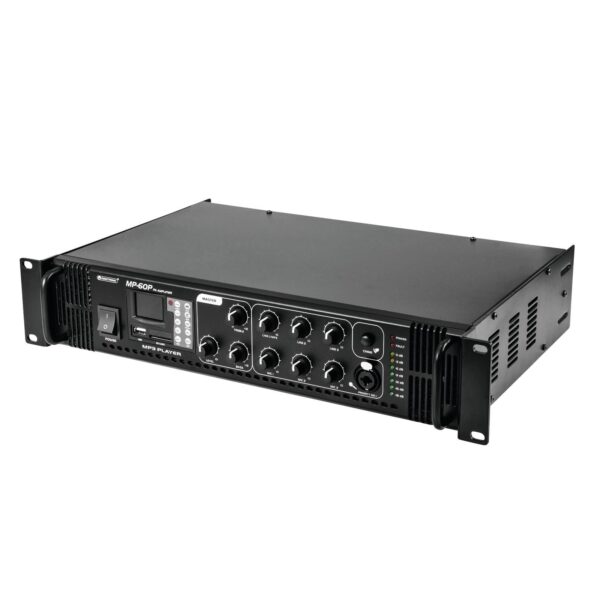

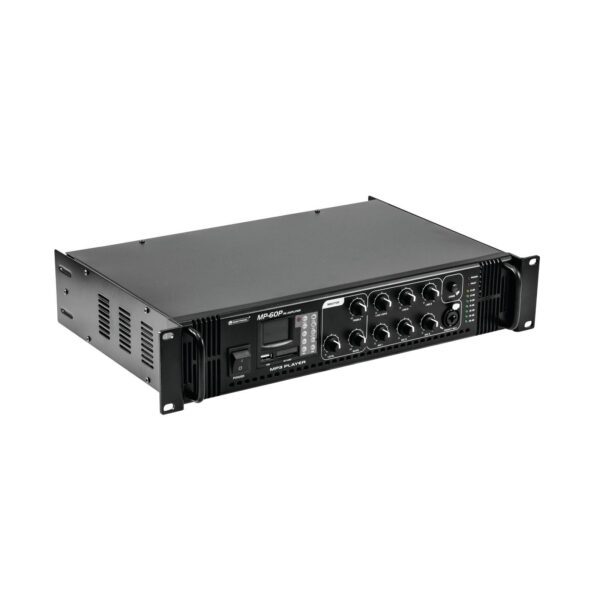

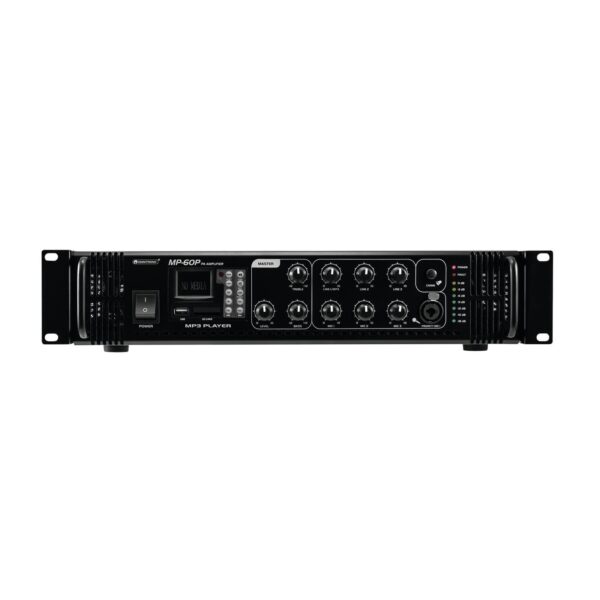

PA mono mixing amplifier with MP3 player and IR remote control
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)

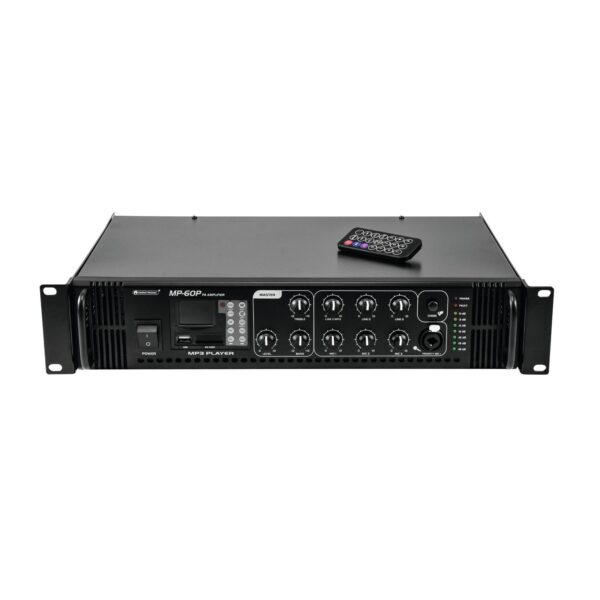

- MP3 player with IR remote control and LCD with blue backlight
- SD card slot and USB input
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 120 W |
Output power: | 60 W RMS |
Output type: | 70 V, 100 V or 4-16 ohms |
Mic input: | 5 mV, 600 ohms |
Line input: | 300 mV, 10 kohms |
Output connectors: | Screw connectors |
Frequency range: | 80 Hz – 14 kHz |
S/N ratio: | 85 dB (line), 75 dB (mic) |
Playback format audio player: | MP3 |
Available storage media: | USB devices and SD(HC) cards up to 32 GB |
File system: | FAT32 |
Number of files: | max. 999 |
Battery remote control: | CR 2025 |
Dimensions: | 483 x 400 x 88 mm |
Weight: | 8.5 kg |
