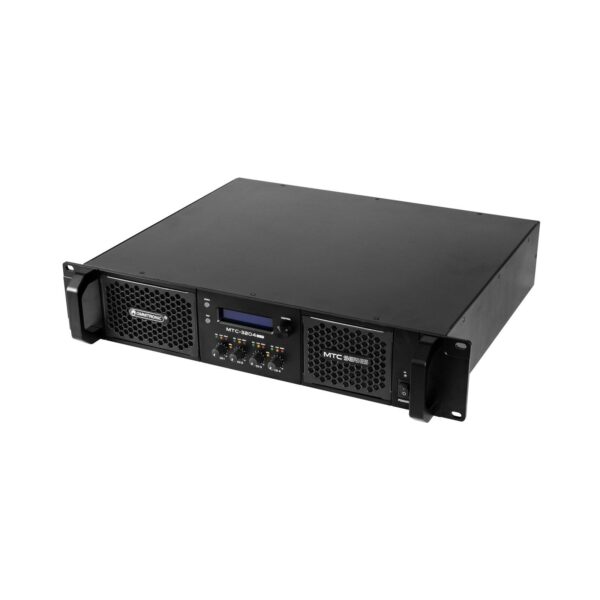

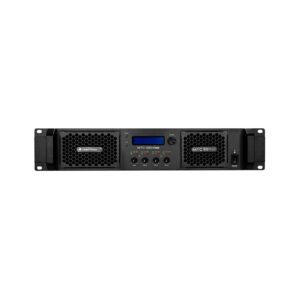

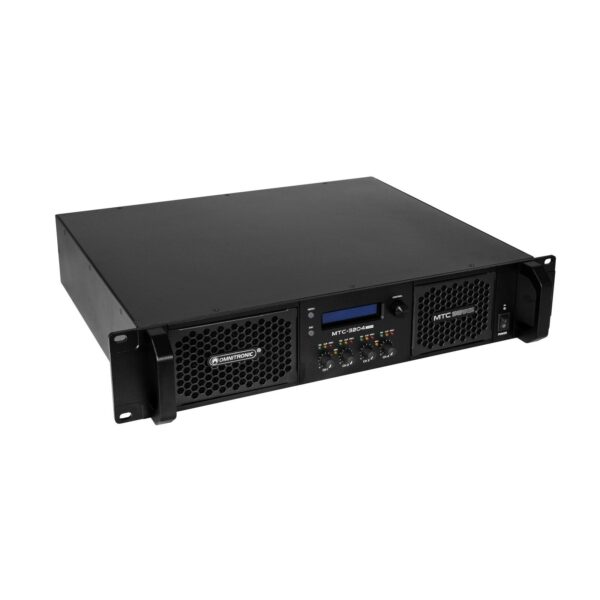

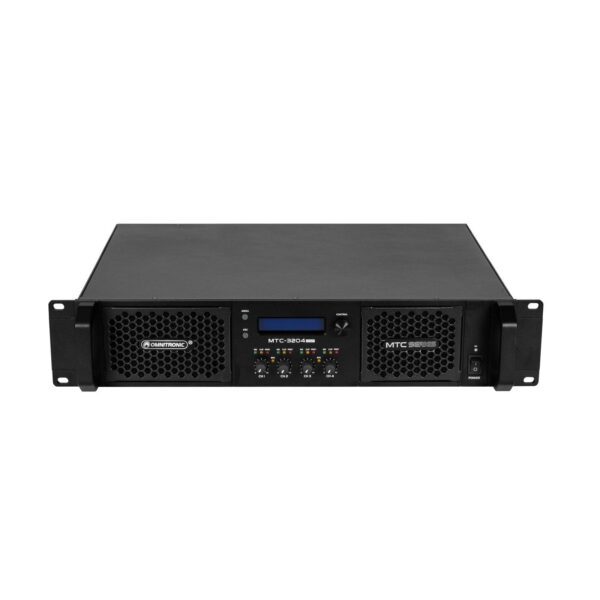

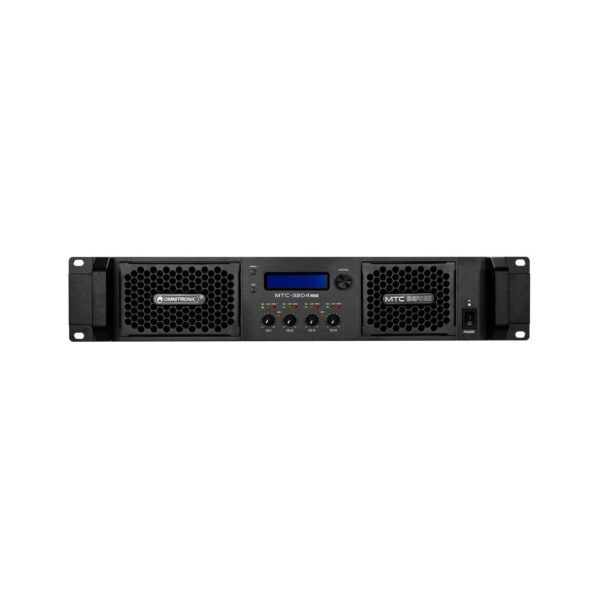

OMNITRONIC MTC-3204DSP 4-Channel Amplifier with DSP
760,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
4-channel PA amplifier with DSP & SMPS, 4 x 800 W, 4 x 400 W
- Efficient Class D technology
- Full configuration and real-time network communication via the built-in Ethernet interface
- The intelligent software for allows convenient control with a computer
- Presets are easy to store, transfer and manage
- Up to 100 user presets storable in the device via software
- Digital signal processor FIR Filter
- Sample rate: 96 kHz
- 2 operating modes can be selected (stereo or bridge/100V)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
- Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- LCD display
- 2 Ethernet ports for easy wiring
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
firmware can be updated - The device is cooled by temperature-controlled fan
- Highly efficient Air flow from front to rear
- (19″) 48.3 cm rack installation 2 U
- Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
- For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 600 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 4 x 800 W RMS (4 ohms) 4 x 400 W RMS (8 ohms) Bridged (8 ohms) 2 x 1500 W RMS 4 x 200 W RMS (100 V) 2 x 1500 W RMS bridged (100 V) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 1,2 m detachable |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | >119 dB |
| THD: | <0,05 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version |
| DSP: | Digital signal processor FIR Filter |
| Cooling: | 1 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Gain: | 28,2 dB Bridged 34,2 dB |
| Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt |
| Delay: | Input: 0 – 2000 ms |
| Housing color: | Black |
| Sample rate: | 96 kHz |
| Circuitry: | Class D |
| Damping factor: | 350 |
| Display type: | LCD display |
| Control elements: | Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Power, signal, clip, bridged, protect |

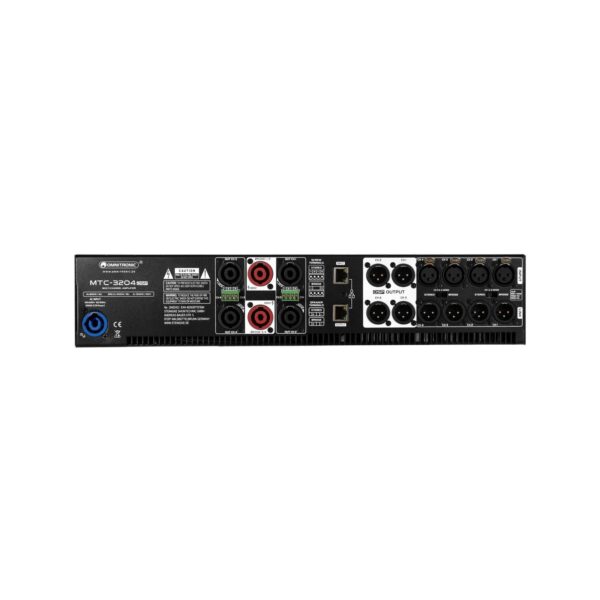

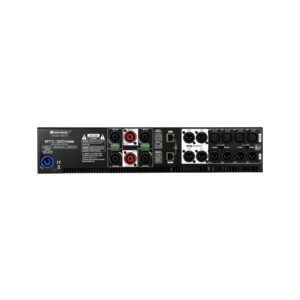

| Connections: | Input: line via 4 x 3-pin XLR Link: line via 4 x 3-pin XLR Output: DSP via 4 x 3-pin XLR (F) mounting version Output: speaker via screw plug-in terminal Output: 4 x speaker built-in socket (F) Output: Speaker (bridge) via 2 x speaker built-in socket (F) 2 x RJ-45 (F) mounting version |
| PC connect: | DXO Software via RJ-45 (F) mounting version, firmware can be updated |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 40,8 cm Height: 8,8 cm |
| Weight: | 7,60 kg |
| Operating system: | Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better |
| Peso | 8,95 kg |
|---|---|
| Dimensioni | 0,1400 × 0,5500 × 0,5200 cm |
| Codice Ean | 4026397707694 |
