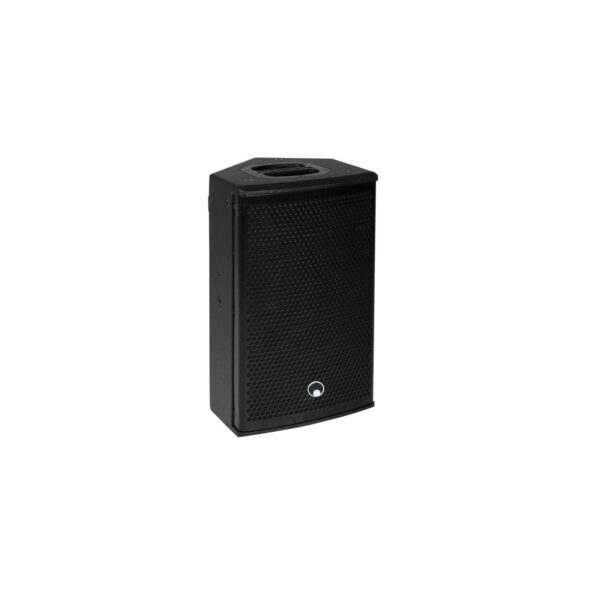

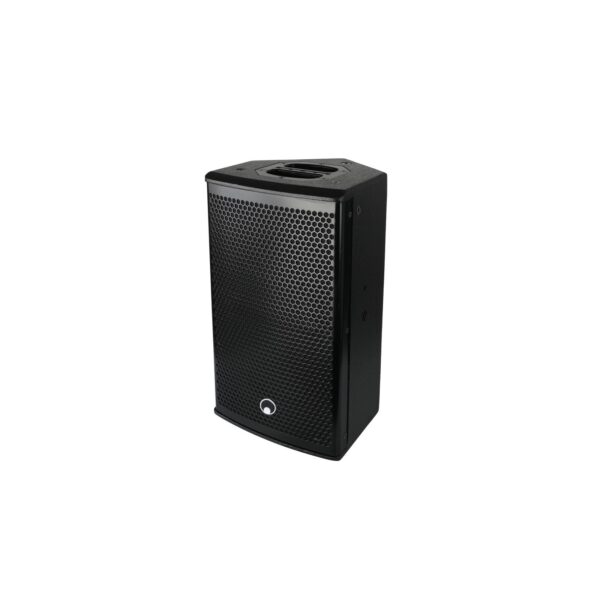

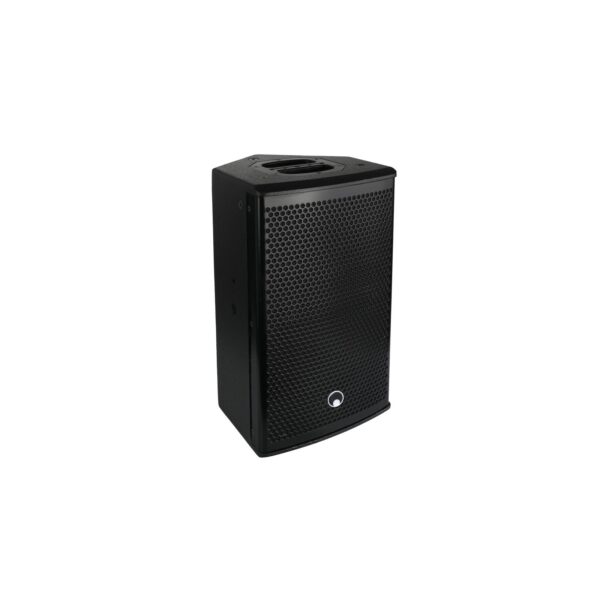

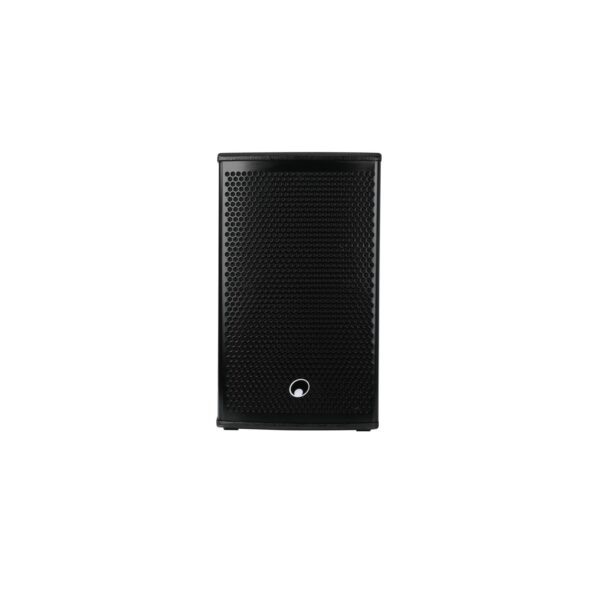

Active 8″ PA speaker with DSP presets, limiter, 210 W RMS
- Active PA speaker system for touring applications and permanent installations
- 2-way bassreflex enclosure with 20 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 210 watts power
- 3 EQ presets with indicators (DJ, monitor, flat)
- Switchable low cut (120 Hz, 90 Hz)
- Switch-on delay and limiter for overload protection

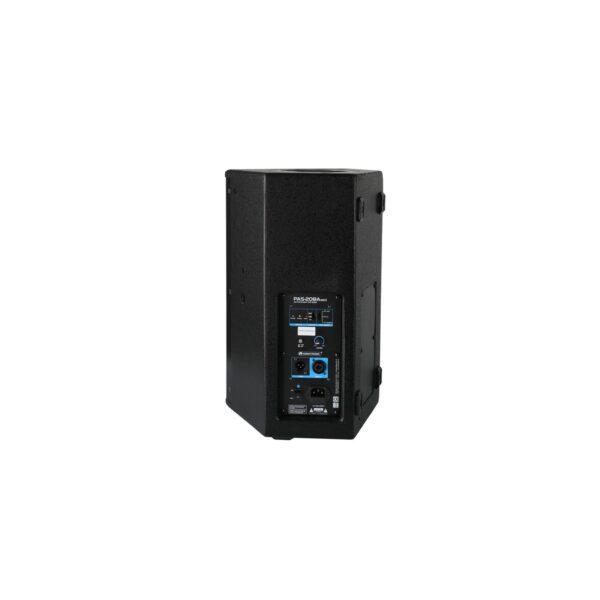

- Master control, limit, signal and power LED
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- XLR output for linking further active speaker systems
- Optimized for combination with PAS subwoofers
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- M8/M10 threaded inserts for suspended installation
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- Digital signal processor
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 300 W |
Output power: | 210 W RMS |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Frequency range: | 75 – 20000 Hz |
Max. SPL: | 118 dB |
DSP: | Digital signal processor |
Dispersion angle: | 90° x 60° |
Attachment system: | Ø 35mm variable tilt |
Flying points: | 5 x M8 thread; 4 x M10 thread |
Circuitry: | Class D |
Connections: | Input: via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Link: via 3-pin XLR |
Input channels: | 1 x mono with Mic-line switch via XLR, channel control via Rotary knob |
Speakers: | 1 x compression tweeter highs (1″) approx 2,5 cm with ferrit magnet Basket material: aluminum Voice coil compression tweeter highs (1.5″) approx 4 cm Horn vent (1″) approx 2,5 cm 1 x woofer (8″) approx 20 cm Voice coil lows (2″) approx. 5 cm |
Type of speaker: | Compact cabinet speaker |
Material: | Birch multiplex |
Color: | Black, painted |
Dimension: | Width: 27 cm Depth: 46 cm Height: 26.8 cm |
Weight: | 11.70 kg |
