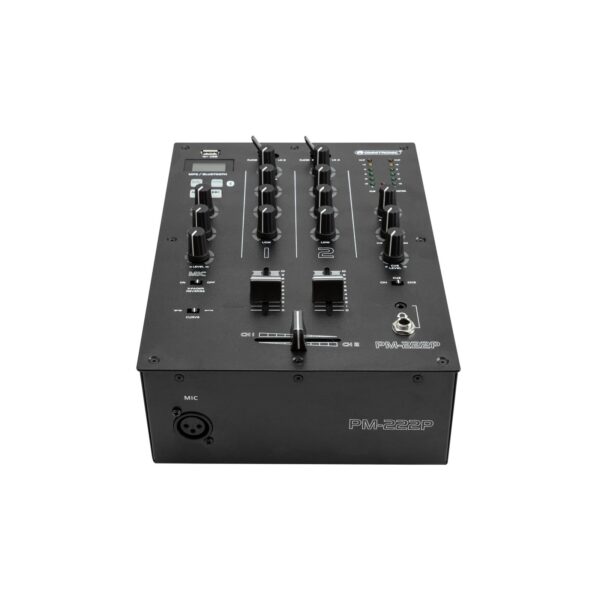

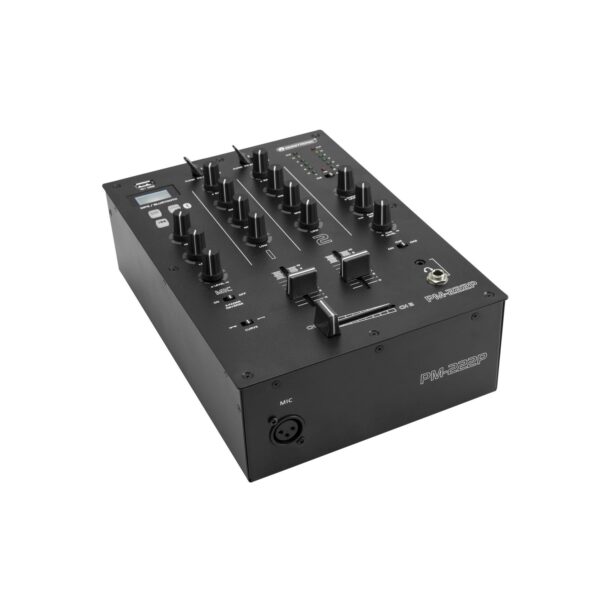

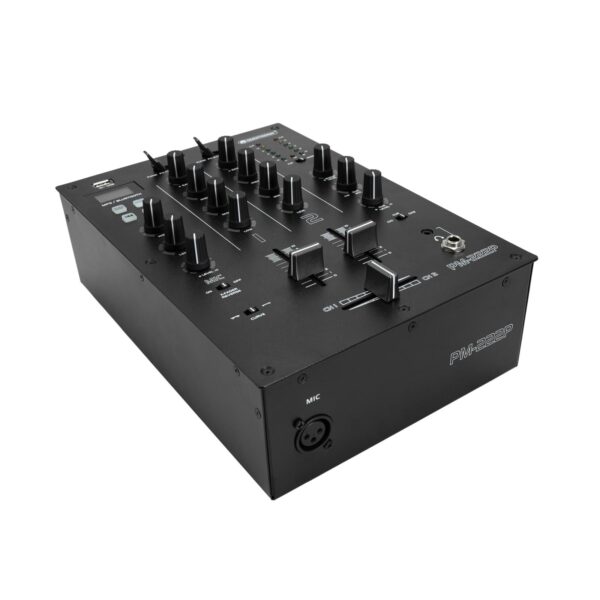

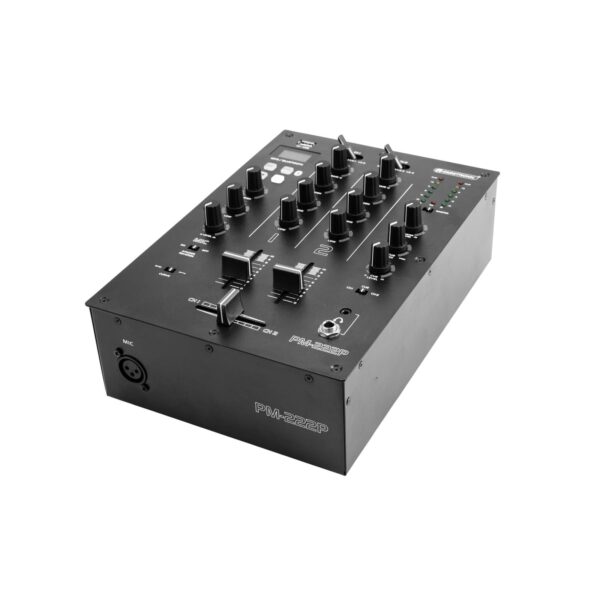

2-channel DJ mixer with Bluetooth and MP3 player
- 2 input channels with gain control, 3-band equalizer and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 4 line and 2 phono inputs via RCA jacks
- Additional recording output
- Controlling by Bluetooth
- Monochrome LCD display for easy controlling
- Desktop console housing
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | Max. 5 W |
Protection class: | Class II |
Power connection: | Mains input via C8 “figure 8” mounting version power supply cord with Euro plug (provided) |
Frequency range: | 20 – 20000 Hz |
S/N ratio: | >70 dB |
THD: | <0,025 % at 1 kHz |
Impedance: | Input Microphone: 47 kOhm Input line: 47 kOhm Input phono: 47 kOhm |
Gain: | Input: variable |
Control: | Bluetooth |
Bluetooth: | Version: 4,2 + EDR Profiles: A2DP, AVRCP |
Display type: | Monochrome LCD display |
Control elements: | Audio player, Crossfader, Cue-mix-function, source selector, Crossfade curve switch; Crossfade reverse switch |
Status LED: | Switchable master level meter, clip, CUE, power |

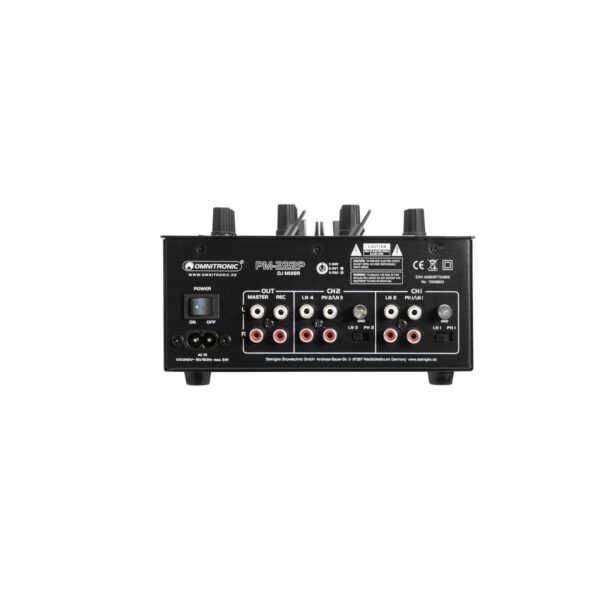

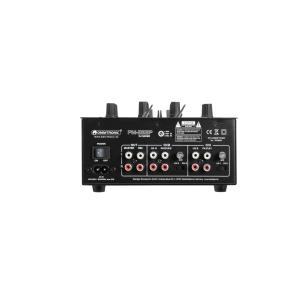

Connections: | Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 4 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
Channels: | Input chanel: 2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control, Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue-mix-function, Master output: 1 x stereo via RCA, channel control via Rotary dial Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
Format: | MP3, WAV; WMA |
Carrier frequency: | 2,4 GHz |
Max. level: | Output: master +19 dBu |
USB port: | Typ A |
Housing design: | Desktop console housing |
Dimensions: | Width: 19 cm Depth: 26 cm Height: 13,7 cm |
Weight: | 2,10 kg |
Audio player | |
Available storage media: | USB devices max. 32GB (FAT 32) |
