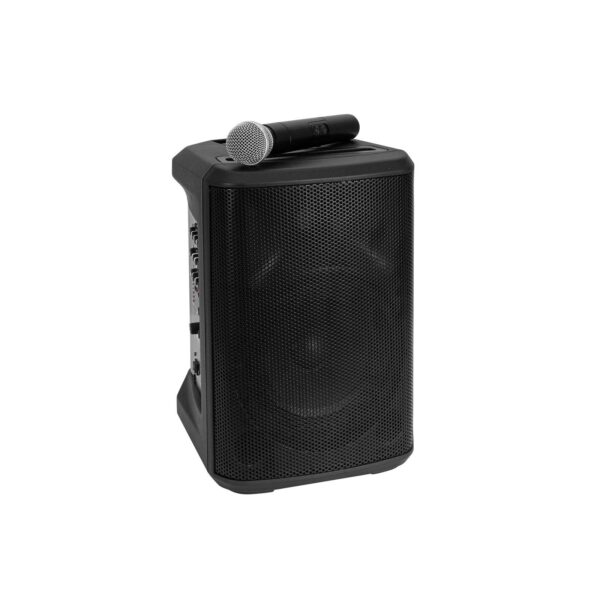

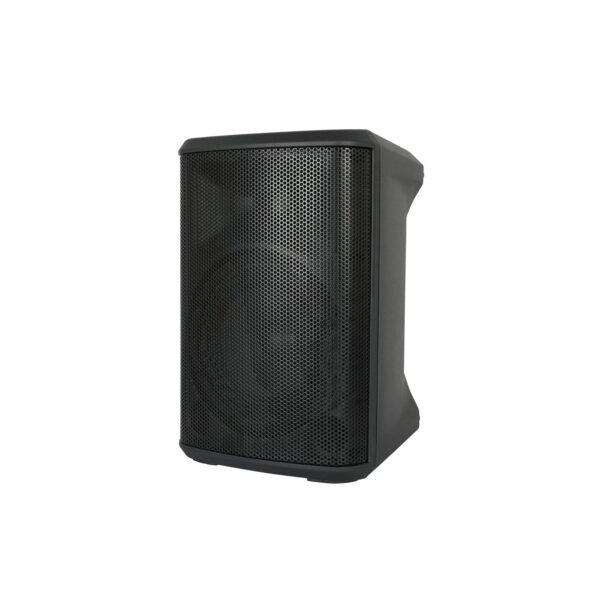

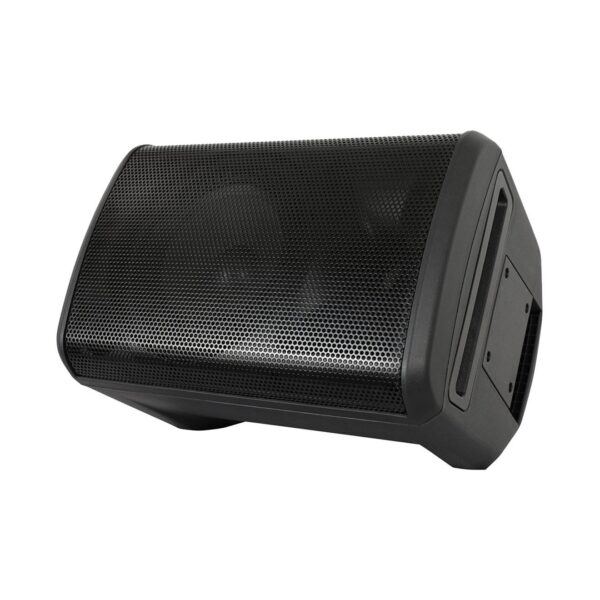

The PORTY-8A is an ultra-portable, battery-powered speaker with 120 watts output power that delivers professional, high-quality sound. The all-in-one 8″ PA system offers a full-featured 4-channel mixer with DSP effects and multiple connection options for microphones, instruments and line sources, as well as a registration-free UHF wireless receiver with dynamic handheld microphone. The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two PORTY-8A systems for stereo setups.The powerful battery provides easily over 6 hours of continuous music playback without interruption for garden parties, singers/songwriters, karaoke, trade shows, fitness instructors and presentations. The 8 kg lightweight plastic enclosure comes equipped with a double flange for tripod mounting and tilts back for monitor applications. You can even charge your personal devices via the USB charging port and place them in the built-in tablet stand!
Mobile 8″ PA system with battery operation, Bluetooth, DSP and wireless microphone
- Powerful sound in an ultra-compact package (114 dB max. SPL)
- Works great as primary PA system, stage monitor and practice amp
- 4-channel power mixer
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- UHF receiver unit and matching wireless microphone
- UHF 863 – 865 MHz License-free and approved in Europe
- Digital signal processor 96kHz, 24 bit
- DSP presets: FLAT; DJ; LIVE
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Battery operation up to 6,5h 50%; battery operation up to 3,5h 100%
- Black metal grille
- Bluetooth: Operating range up to 20m
- Rugged carrying handle
- Lightweight plastic housing
- With tablet holder
- Dual flange
- Control via Bluetooth
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; mobile djs / entertainer; small rental; product presentations and lectures
Package contents
- 1 x compact cabinet speaker, 1 x microphone, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 2 x battery, 1 x battery pack
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | Max. 220 W |
Protection class: | Protection class I |
Power connection: | Mains input via IEC connector (M) mounting version (provided) Battery/battery pack |
Cable length: | 1,5 m detachable |
Device fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
Battery pack type: | 1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
Battery pack: | Battery operation up to 6,5h 50% Battery operation up to 3,5h 100% Recharging time 4h |
Power: | 120W RMS |
Number of channels: | 4 |
Frequency range: | 45 – 18000 Hz |
Max. SPL: | 114 dB |
DSP: | Digital signal processor 96kHz, 24 bit |
DSP presets: | FLAT; DJ; LIVE |
Control: | Bluetooth |
Bluetooth: | Version: 5 with stereo link (TWS) |
Bluetooth device name: | OMNITRONIC PORTY-8A |
Range: | Bluetooth: range up to 20m |
Frequency band: | UHF 863 – 865 MHz |
Housing color: | Black |
Attachment system: | Dual flange: Ø 35mm |
Circuitry: | Class D |

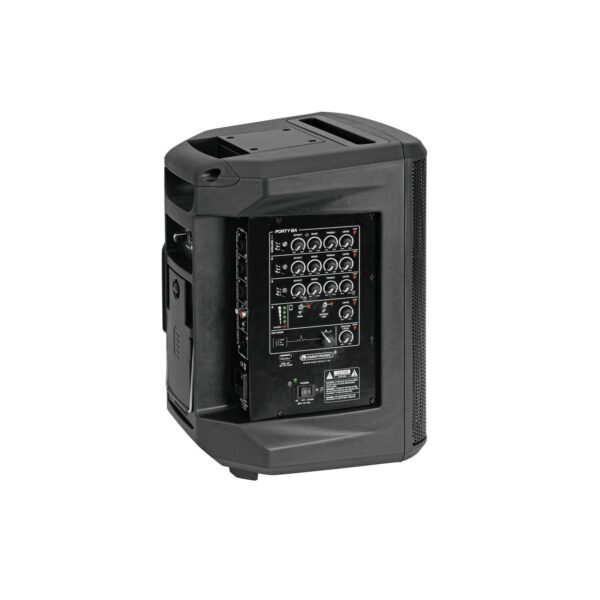

Control elements: | Power switch, Input sensitivity switch, Master control, level control per channel, Echo effect control; connect |

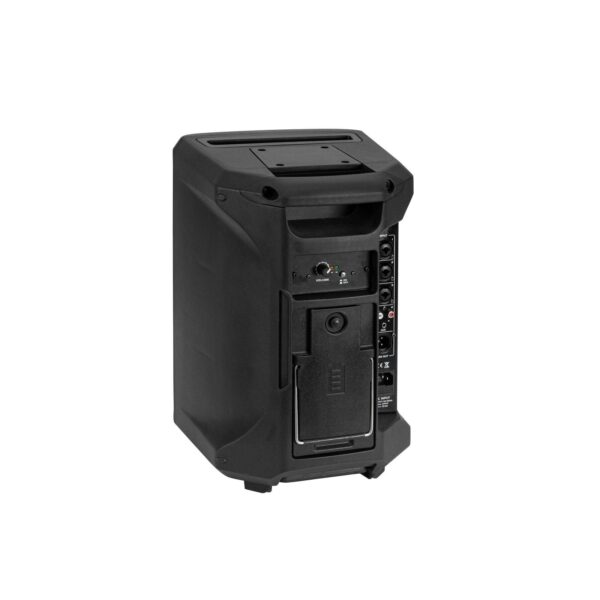

Connections: | Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via RCA (F) mounting version Input: line via 3.5 mm jack (stereo) mounting version Output: line via 3-pin XLR (M) mounting version |
Channels: | Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial, 2-band tone control EQ |
Input channels: | 1 x stereo via RCA or jack plug or Bluetooth, channel control via Rotary dial |
Speaker: | Woofer 8″ with ferrit magnet 8 x compression tweeter highs 1,35″ with ferrit magnet |
Type of speaker: | Wireless PA system |
Carrying handle: | 1 pc/pcs |
Material: | Plastic |
Dimensions: | Width: 29 cm Depth: 26,3 cm Height: 39,3 cm |
Weight: | 8,65 kg |
