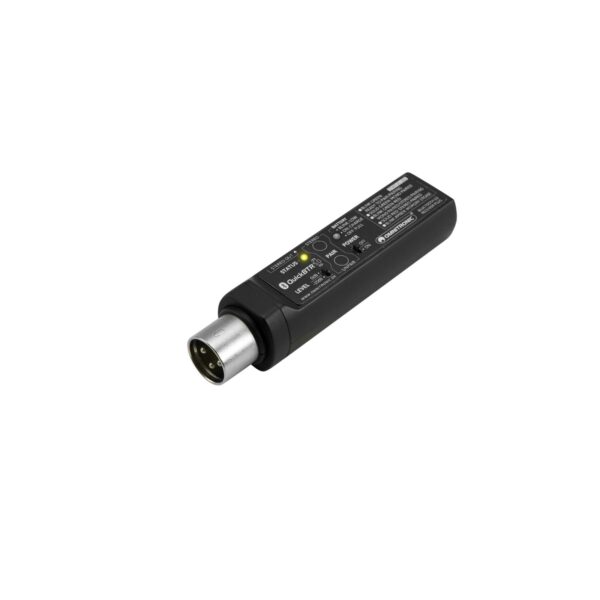

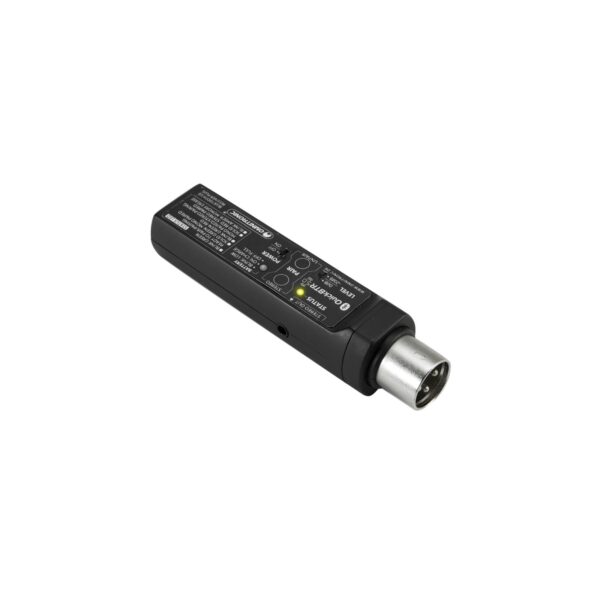

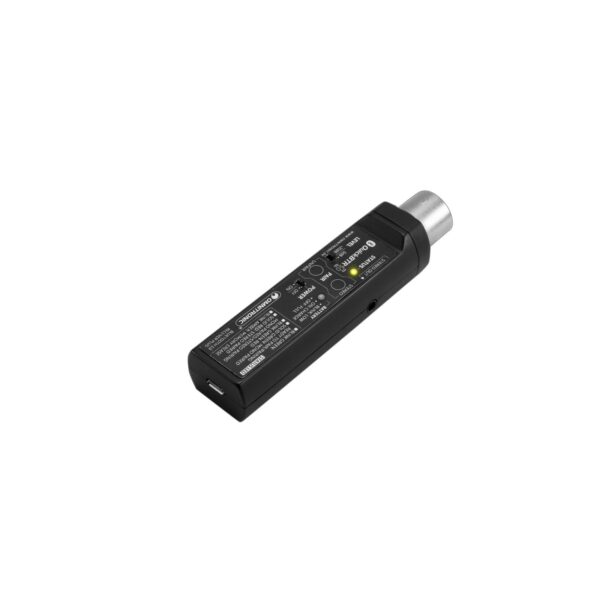

QuickBTR-5.0 is a portable Bluetooth receiver that allows you to stream audio signals wirelessly from your Bluetooth devices to mixers or powered speakers. With QuickBTR-5.0, you can simply add Bluetooth streaming to any live sound setup. The latest Bluetooth 5.0 technology with aptX support ensures fast and stable wireless connections and high-quality audio. The stereo audio stream is output as a mono signal via the XLR plug or as a stereo signal via the 3.5 mm TRS jack. You can also wirelessly link two QuickBTR-5.0 together for stereo speaker setups. Setup is simple: plug QuickBTR-5.0 into the XLR input of a mixer or powered speaker, pair your Bluetooth audio device and start playing! The internal battery keeps the receiver running for over 8 hours. Charging is via any USB power source and the included micro USB cable.
Portable Bluetooth receiver with XLR output, aptX and stereo link mode
- Add Bluetooth capability to any speaker or mixer
- Eliminates troublesome cable runs
- Stereo link mode: pair two receivers for cable-free stereo playback
- Bluetooth version 5.0 allows for fast and stable connections
- AptX codec support for outstanding audio quality
- Internal rechargeable lithium battery with up to 8 hours operating time
- Output level switchable: 0 dBu, -20 dBu
- 3-pin XLR plug
- AUX output via 3.5 mm stero jack
- Multicolored LED indication for functions and battery level indicator
- Incl. micro USB charging cable
- Use a operating range up to 10m with line of sight
Type: | Audio transmission |
Power supply: | 5 V DC 500 mA |
Power connection: | Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided) |
Battery pack type: | 1 x lithium ion 3,7 V, 300 mAh, 1,1 Wh |
Battery pack: | Battery operation up to 8h |
S/N ratio: | >75 dB |
Bluetooth: | Version: 5,0 class 2 Profiles: A2DP |
Supported codecs: | AptX, AAC, SBC |
Connections: | Output: via 3-pin XLR Output: via 3.5 mm jack (stereo) mounting version |
Frequency band: | 2.4 GHz |
Modulation: | GFSK |
Range: | 10 m with line of sight |
Color: | Black |
Dimensions: | Width: 2,6 cm Depth: 2,7 cm Height: 11 cm |
Weight: | 100 g |
