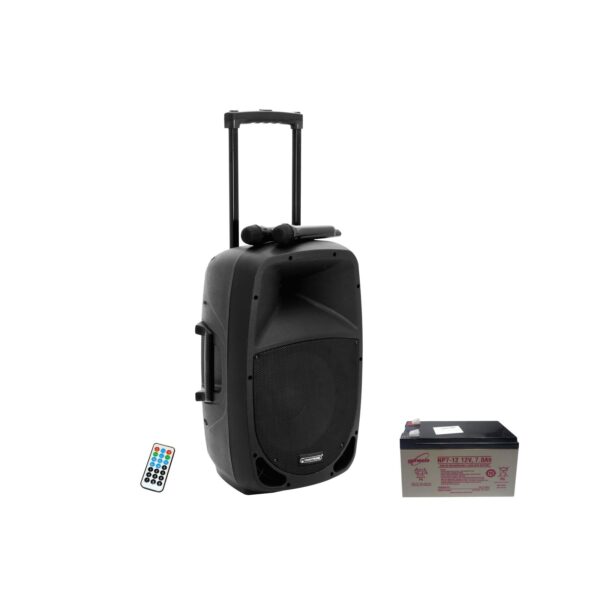

13106961 OMNITRONIC MES-15BT2 Wireless PA System
Portable 15″ PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
- 3-channel power mixer (45 W RMS) and 2-way speaker system with a 38 cm woofer (15″)
- MP3 player with Bluetooth receiver, IR remote control and volume control
- SD card slot and USB input
- Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks
- UHF receiver units and 2 matching wireless microphones
- Mains operation or battery operation for up to 4-5 hours of music playing
- Integrated automatic charging of the battery
- Lead acid battery optionally available (13106993)
- 2 mono microphone channels
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Light-weight black plastic enclosure with metal grille, monitor shape and carrying handles
- Flange for speaker stand installation
- Two wheels and retractable pulling handle for trolley-like mobility
- License-free in large parts of the EU
- Control: Bluetooth built-in
- Transport aid: Trolley
Audio player
- Control: IR remote control included
Microphone
- Polar pattern: Cardioid
- Battery: 2 x Mignon (AA) (not included)
Remote control
- Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
13106993 ACCESSORY Battery 12V/7000mAh
Maintenance-free lead acid battery 7 Ah
- Rechargeable
- High energy densitiy
- Long life
- Maintenance-free
- Sealed leak proof construction
- Suitable for 13106991 OMNITRONIC WAMS-08BT Wireless PA system, 13106955 OMNITRONIC MES-12BT2 Drahtlos-PA-System, 13106970 OMNITRONIC MOM-10BT4 Modular Wireless PA System etc.
Weight: | 15,70 kg |
13106961 OMNITRONIC MES-15BT2 Wireless PA System | |
Type: | Compact cabinet speaker |
Power supply: | 230 V AC, 50 Hz |
or 12 V DC |
|
Power consumption: | 75 W |
Output power: | max. 90 W |
45 W RMS | |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Battery/battery pack (optional) | |
Mains input Spring terminal built-in | |
Battery pack type: | 1 x Lead 12 V, 7000 mAh, 84 Wh |
Accumulator: | battery operation up to 5h recharging time 11h |
Frequency range: | 60 – 19000 Hz |
Sensitivity: | 90 dB (1W/1m) |
Max. SPL: | 110 dB |
Control: | Bluetooth built-in |
Color: | Black |
Format: | MP3 |
Speakers: | 1 x Woofers (15″) approx 38 cm |
1 x Horn (1″) ca. 2,5 cm | |
Material: | Plastic |
Width: | 44 cm |
Height: | 70 cm |
Depth: | 37 cm |
Weight: | 13,10 kg |
Audio player | |
Frequency band: | 2.4 GHz |
Control: | IR remote control included |
Audio player: | USB + SD + Bluetooth |
Range: | 10 m Bluetooth |
Microphone | |
Power supply: | 3 V DC |
Power connection: | Battery/battery pack |
Polar pattern: | Cardioid |
Battery: | 2 x Mignon (AA) (not included) |
Capsule type: | Dynamic |
Range: | 30 m |
Carrier frequency: | 830 MHz; 864 MHz |
Material: | Plastic |
Length: | 25,5 cm |
Diameter: | 5,2 cm |
Weight: | 0,2 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Inputs: | |
Mic, mono: | 6.3 mm jack, bal. |
Line, stereo: | RCA L/R |
Output: | |
Line, mono: | RCA |
Wireless microphones: | |
Frequency stability: | ±0.005 % |
RF power output: | 10 mW |
Current consumption: | 130 mA |
Audio player: | |
Playback format: | MP3, WMA |
Storage media: | USB devices and SD(HC) cards up to 32 GB |
File system: | FAT32 |
13106993 ACCESSORY Battery 12V/7000mAh | |
Battery pack type: | 1 x Lead 12 V, 7000 mAh, |
Width: | 16,1 cm |
Height: | 10 cm |
Depth: | 6,5 cm |
Weight: | 1,90 kg |
Voltage: | 12 V DC |
Capacity: | 7 Ah |
Contact width: | 5 mm |
