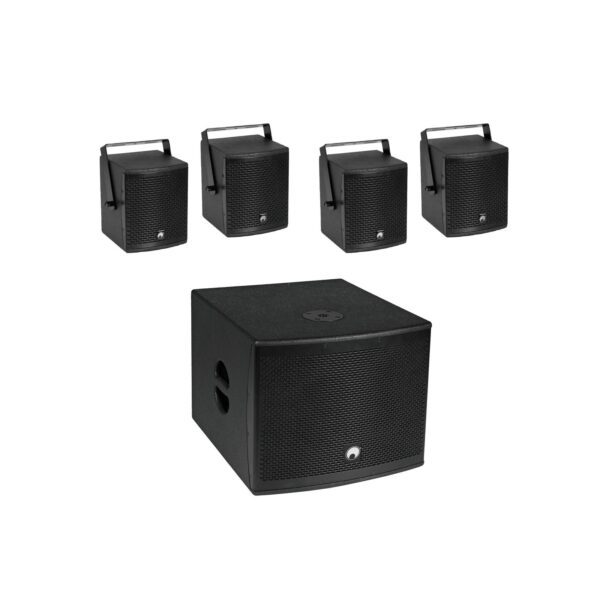

Active 12″ subwoofer with DSP and Bluetooth incl. 4x 6.5″ satellite speakers with bracket
11039050 OMNITRONIC MOLLY-12A Subwoofer active black
Active 12″ subwoofer with DSP and Bluetooth
- 12″ bassreflex subwoofer with DSP and 700 watts RMS power
- Flexibly extendable with MOLLY-6 satellites for 2.1 and 4.1 configurations
- DSP-controlled class D amplifier (500 W + 2 x 100 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm jack), RCA and 3.5 mm jack
- XLR outputs for linking further MOLLY systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- M20 metal flange for mounting satellite speakers
- Multiplex enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
- Digital signal processor
- Controlling by Bluetooth
11039052 OMNITRONIC MOLLY-6 Top black 2x
6.5″ satellite speakers with bracket
- 8-ohm speaker pair with 6.5″ woofer and 1″ tweeter
- For use with MOLLY-12A subwoofers for 2.1 and 4.1 configurations
- Incl. 2 x U-bracket for wall, ceiling and stand installation
- Optional stand adaptor required for stand mounting
- Extension U-bracket and cable available for connecting 2 satellite speakers
- Rated power: 130 W RMS/260 W program
- Connectors: 1 x speaker and screw plug terminal
- MDF cabinet with M8 threaded inserts
- Scratch-resistant lacquer surface and steel grille
- Transport bag for 4 satellites, brackets and cables optional
Weight: | 39.90 kg |
11039050 OMNITRONIC MOLLY-12A Subwoofer active black | |
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 1000 W |
Output power: | 1 x 500 W RMS 2 x 100 W RMS (8 ohms) 2 x 200 W RMS (4 ohms) |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Frequency range: | 40 – 160 Hz |
Sensitivity: | 103 dB |
Max. SPL: | 128 dB |
DSP: | Digital signal processor |
Control: | Bluetooth |
Attachment system: | M20 thread |
Circuitry: | Class D |
Connections: | Input: 2 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 1 x line via 3.5 mm jack (stereo) mounting version Input: 1 x line via stereo RCA Output: 2 x line via 3-pin XLR Output: 2 x Top via speaker built-in socket (f) |
Input channels: | 1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary knob |
Speakers: | 1 x woofer (12″) approx 30 cm Voice coil lows (3″) approx. 8 cm |
Type of speaker: | Subwoofer |
Type: | Vented |
Color: | Black, painted |
Dimension: | Width: 47 cm Depth: 57 cm Height: 40 cm |
Weight: | 22.10 kg |
11039052 OMNITRONIC MOLLY-6 Top black 2x | |
Rated power: | 130 W RMS |
Program power: | 260 W |
Frequency range: | 150 – 20000 Hz |
Sensitivity: | 95 dB (1W/1m) |
Max. SPL: | 119 dB |
Impedance: | 8 Ohm |
Connections: | 1 x via speaker built-in socket (f) 1 x via screw terminal |
Speakers: | 1 x woofer (6.5″) approx. 17 cm Voice coil lows (1″) approx 2,5 cm 1 x Tweeter (1″) approx 2,5 cm |
Type of speaker: | On-ceiling/on-wall speaker |
Color: | Black |
Weight: | 8.90 kg |
