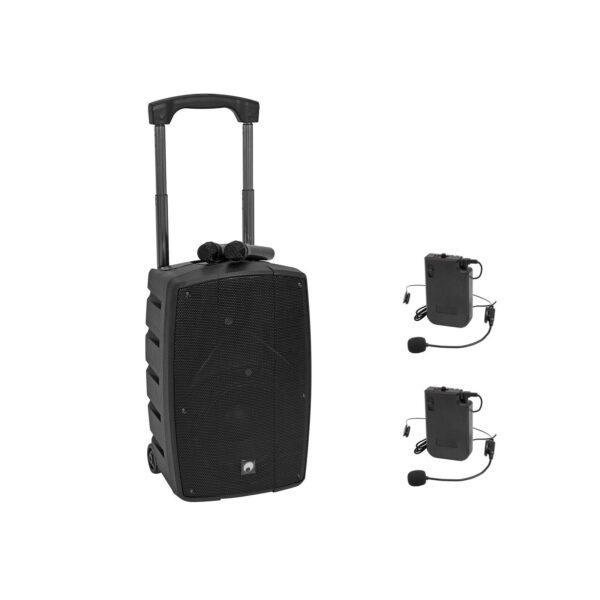

OMNITRONIC Set WAMS-10BT2 MK2 + 2x Bodypack Transmitter + 2x Headset

OMNITRONIC WAMS-10BT2 MK2 Wireless PA System

Mobile 10″ PA system with battery operation, audio player, Bluetooth and 2 wireless microphones

• Portable all-in-one PA system with 80 watts output power
• 3-channel power mixer
• Power-efficient and battery-saving biamp amplifier with DSP control
• 2-way bass-reflex enclosure with 25 cm woofer (10″)
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
• 2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
• 1 stereo input channel for internal audio player and external line signal sources with talkover switch
• UHF receiver units and 2 matching wireless microphones
• 1 additional battery can be retrofitted for up to 8 hours operating time
• Signal limiter and crossover, DSP-controlled
• Common 2-band EQ for highs and lows
• Control via Bluetooth; IR remote control
• UHF 863 – 865 MHz License-free and approved in Europe
• Bluetooth: operating range up to 20m
• With accessory compartment
• For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
• Black metal grille
• Rugged carrying handle
• Trolley
• Application possibility: Standing; monitoring; on stand
• Cordless, flexible and versatile
• Battery operation up to 4h depending on program used
• Integrated automatic charging of the battery and status indicator

audio player

• 2.4 GHz license-free worldwide

microphone

• Polar pattern: Cardioid
• Operating range up to 30m

Package contents

• 2 x microphone, 2 x user manual, 1 x power cord, 1 x battery, 1 x compact cabinet speaker, 1 x declaration of conformity, 1 x battery pack, 1 x remote control, 2 x antenna

OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz

Bodypack transmitter with headset microphone for WAMS-10BT2 MK2

• LED indicator for battery capacity
• Operating range up to 60m with line-of-sight

Package contents

• 1 x transmitter, 1 x microphone, 1 x user manual

OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz

Bodypack transmitter with headset microphone for WAMS-10BT2 MK2

• LED indicator for battery capacity
• Operating range up to 60m with line-of-sight

Package contents

• 1 x user manual, 1 x microphone, 1 x transmitter

Weight:	14,48 kg
OMNITRONIC WAMS-10BT2 MK2 Wireless PA System
Power supply:	100-240 V AC, 50/60 Hz Or 12 V DC
Protection class:	Protection class I
Output power:	80 W RMS
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack
Battery pack type:	1 x lithium ion 12,8 V, 8000 mAh, 102,4 Wh
Battery pack:	Battery operation up to 4h depending on program used Recharging time 4h
Frequency range:	50 – 20000 Hz
THD:	<0,1 % at 1 kHz
Sensitivity:	96 dB (1W/1m)
Max. SPL:	115 dB
Control:	Bluetooth; IR remote control
Bluetooth:	Version: 5 with stereo link (TWS)
Bluetooth device name:	OMNITRONIC
Range:	Bluetooth: range up to 20m
Frequency band:	UHF 863 – 865 MHz
Attachment system:	Flange: Ø 35mm
Control elements:	Level control per channel, echo effect control, talkover
Status LED:	Power, limit, charge status indicator
Connections:	Input: line via 1 x 3.5 mm jack (stereo) mounting version Input: line via 1 x stereo RCA Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 3-pin XLR
Channels:	Input chanel: 1 x mono with mic-line switch via XLR or jack, channel control via rotary dial, 2-band tone control EQ
Input channels:	1 x mono with Mic-Line-Hi.Z. switch via XLR or jack, channel control via rotary dial 1 x stereo with line-player switch via RCA or jack plug or player, channel control via rotary dial
Speaker:	1 x woofer 10″ 1 x tweeter 1″
Type of speaker:	Wireless PA system
Carrying handle:	1 pc/pcs
Transport aid:	Trolley
Switch:	On/off switch
Material:	ABS Acrylonitrile butadiene styrene
Color:	Black
Dimensions:	Length: 31 cm Width: 36 cm Height: 56 cm
Weight:	12,90 kg
Microphone
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Range:	Range up to 30m
Dimensions:	Length: 26 cm Diameter: Ø 4 cm
Audio player
Audio player:	USB + SD + Bluetooth
Frequency band:	2.4 GHz
Music format:	MP3, WMA
Available storage media:	USB devices/SD cards max. 32GB (FAT 32)
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz
Type:	Bodypack with microphone
Battery:	2 x Mignon (AA) (not included)
THD:	<0,1 % at 1 kHz
Range:	Range up to 60m with line-of-sight
Carrier frequency:	863 MHz
RF power output:	10 mW
Frequency selection:	Fixed frequencies
Connections:	1 x 3.5 mm jack (mono) mounting version
Material:	Plastic
Color:	Black
Dimensions:	Width: 6,6 cm Depth: 2,5 cm Height: 10,5 cm
Weight:	90 g
Microphone
Capsule type:	Condenser
OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz
Type:	Bodypack with microphone
Battery:	2 x Mignon (AA) (not included)
THD:	<0,1 % at 1 kHz
Range:	Range up to 60m with line-of-sight
Carrier frequency:	865 MHz
RF power output:	10 mW
Frequency selection:	Fixed frequencies
Connections:	1 x 3.5 mm jack (mono) mounting version
Material:	Plastic
Color:	Black
Dimensions:	Width: 6,6 cm Depth: 2,5 cm Height: 10,5 cm
Weight:	90 g
Microphone
Capsule type:	Condenser
