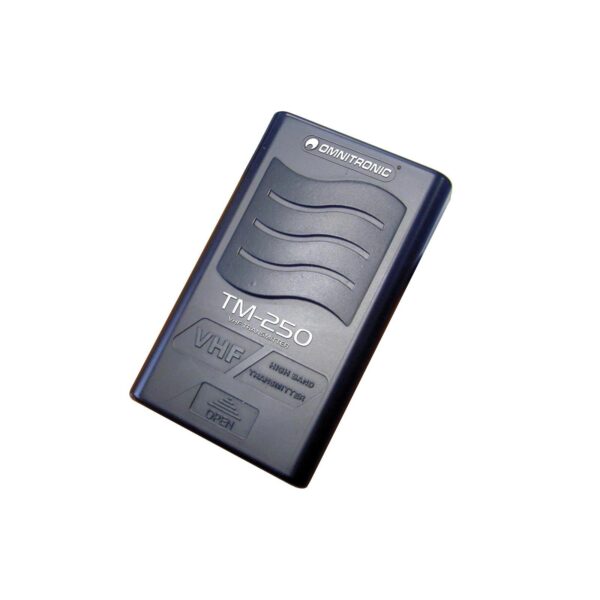

VHF pocket transmitter set

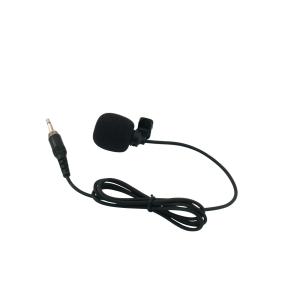

- Set includes transmitter and lavalier microphone
- Matches receiver VHF-250 with the same carrier frequency
- Operation with fixed VHF frequency 211.700 MHz
- On/Off/Mute operation selector
- LED indicator for battery capacity
- Transmitting power 8.5 mW
- 3.5 mm jack (1/8") screw connection to headset or lavalier mic
- Power supply via 9 V battery (supplied)
- License-free and approved in Germany and other EU countries
Carrier frequency: | VHF 211.700 MHz |
Modulation: | FM, F3F |
Frequency stability: | <±30 ppm |
T.H.D.: | <0.5 % at 1 kHz |
Band width: | 40-15 kHz (±3 dB) |
Maximum deviation: | ±25 kHz |
RF power output: | 8.5 mW |
Power supply: | 1 standard 9 V battery |
Battery life: | approx. 6 hours |
Dimensions (L x W x H): | 106.5 x 64.5 x 31.5 mm |
Weight: | 80 g |
