Compact, lightweight and useful: The WAMS-10BT2 MK2 is an extremely lightweight yet powerful PA system with rechargeable battery for mobile use. Whether for street musicians, at lectures, family get-togethers or in the aerobics group: Thanks to the versatile connection options you are flexible on the road. The great-sounding all-in-one system with power-efficient class D amplifier and 80 watts output power neither requires power nor audio cables. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver. Delivery includes 2 license-free wireless microphones for announcements and moderations. A bodypack transmitter is available as an accessory.The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections and links two PA systems for stereo setups. The 2-way bass reflex system with 25 cm (10″) woofer provides powerful sound despite the small size. Equipped with a 3-channel power mixer, the WAMS-10BT2 MK2 also features an MP3 player with SD card slot, USB port and IR remote control. A stereo input channel for line sources (e.g. CD player or notebook) and two mono input channels for instruments or cabled microphones provide additional flexibility. The 2-band EQ lets you control bass and treble. The powerful 12 V battery allows for continuous playback at full volume for up to 4 hours. By retrofitting an additional battery, the operation time can even be doubled. The WAMS-10BT MK2 is easy to carry via its trolley handle and wheels. The lightweight ABS enclosure allows for tripod mounting.

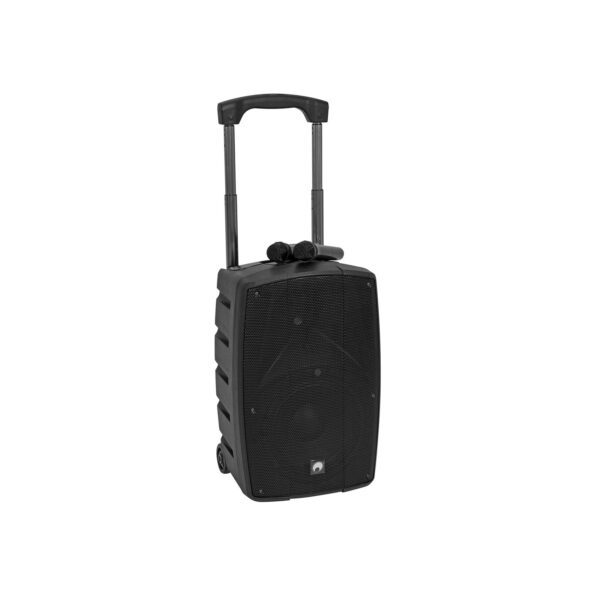

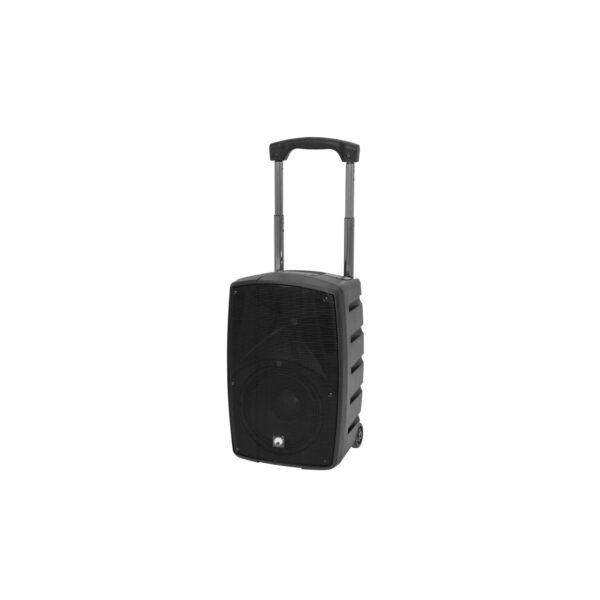

Mobile 10″ PA system with battery operation, audio player, Bluetooth and 2 wireless microphones
- Portable all-in-one PA system with 80 watts output power
- 3-channel power mixer
- Power-efficient and battery-saving biamp amplifier with DSP control
- 2-way bass-reflex enclosure with 25 cm woofer (10″)
- MP3 player with SD card slot, USB input, LCD and IR remote control
- Integrated Bluetooth audio streaming
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- 2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
- 1 stereo input channel for internal audio player and external line signal sources with talkover switch

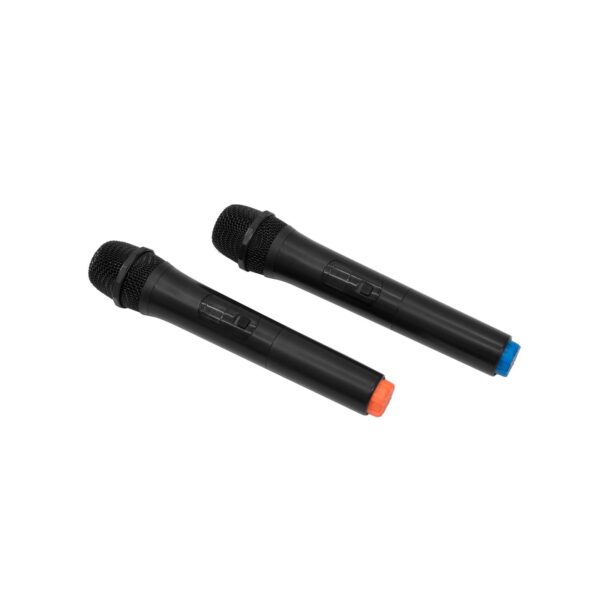

- UHF receiver units and 2 matching wireless microphones
- 1 additional battery can be retrofitted for up to 8 hours operating time
- Automatic charging of the battery and status indicator
- Signal limiter and crossover, DSP-controlled
- Common 2-band EQ for highs and lows
- Link output for the combination of several amplifier systems
- Light-weight ABS cabinet with metal grille and carrying handle
- Flange for stand installation
- Two wheels and retractable pulling handle for trolley-like mobility
- License-free and approved in the EU (please check on a country-by-country basis)
- Controlling by IR remote control included; Bluetooth; IR remote control
- Bluetooth: Use a operating range up to 20m
- With accessory compartment
- For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures
Battery pack
- Battery operation up to 4h depending on program used
Microphone
- Polar pattern: Cardioid
- Use a operating range up to 30m
Package contents
- 1 x Microphone, 1 x Audio player
Power supply: | 100-240 V AC, 50/60 Hz Or 12 V DC |
Power consumption: | 150 W |
Output power: | 80 W RMS |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack |
Battery pack type: | 1 x lithium ion 12,8 V, 8000 mAh, 51,2 Wh |
Frequency range: | 50 – 20000 Hz |
THD: | <0,1 % at 1 kHz |
Sensitivity: | 96 dB (1W/1m) |
Max. SPL: | 115 dB |
Control: | IR remote control included; Bluetooth; IR remote control |
Control elements: | Level control per channel, “ECHO” effect control, Talk over |
Equalizer: | 2-band tone control |
Status LED: | Power, limit, charge level |

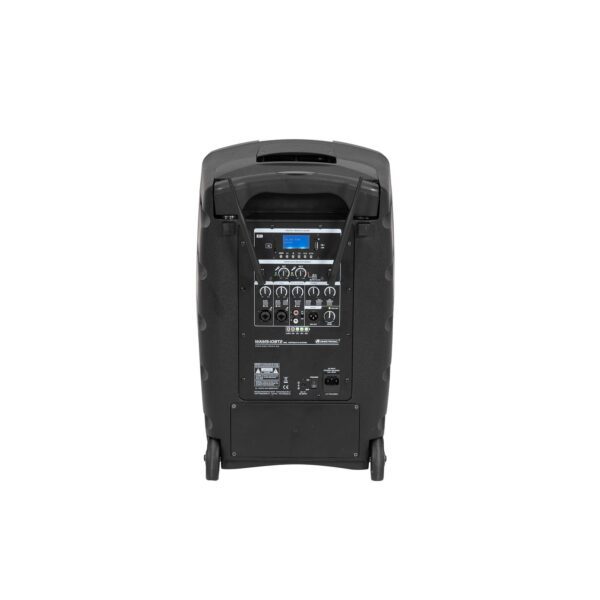

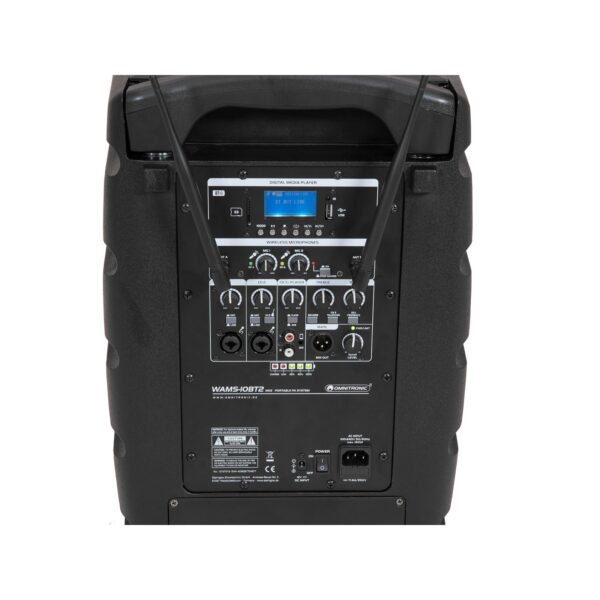

Connections: | Input: line via 1 x 3.5 mm jack (stereo) mounting version Input: line via 1 x stereo RCA Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 3-pin XLR |
Frequency band: | UHF 863 – 865 MHz |
Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
Speaker: | 1 x woofer (10″) approx. 25 cm 1 x tweeter (1″) approx. 2,5 cm |
Type of speaker: | Wireless PA system |
Range: | 20 m Bluetooth |
Material: | Plastic |
Color: | Black |
Dimensions: | Length: 31 cm Width: 36 cm Height: 56 cm |
Weight: | 13,58 kg |
Battery pack | |
Battery pack: | Battery operation up to 4h depending on program used Recharging time 4h |
Audio player | |
Audio player: | USB + SD + Bluetooth |
Format: | MP3, WMA |
Frequency band: | 2.4 GHz |
Microphone | |
Power supply: | 3 V DC |
Capsule type: | Dynamic |
Polar pattern: | Cardioid |
Battery: | 2 x Mignon (AA) (not included) |
Range: | 30 m |
Dimensions: | Length: 26 cm Diameter: Ø 4 cm |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
