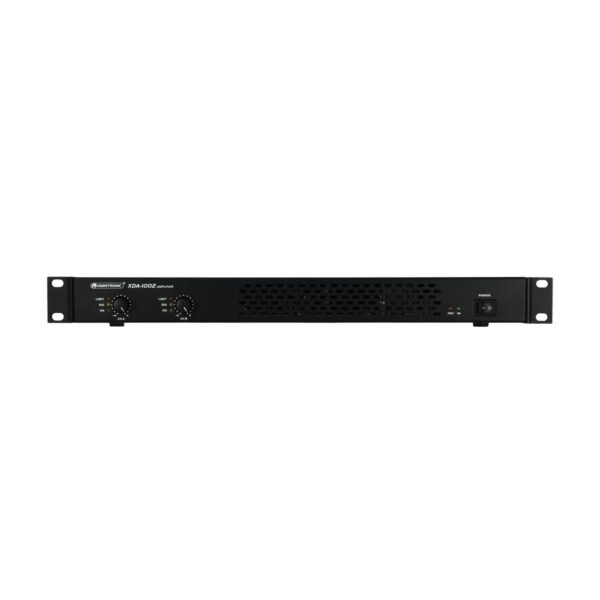

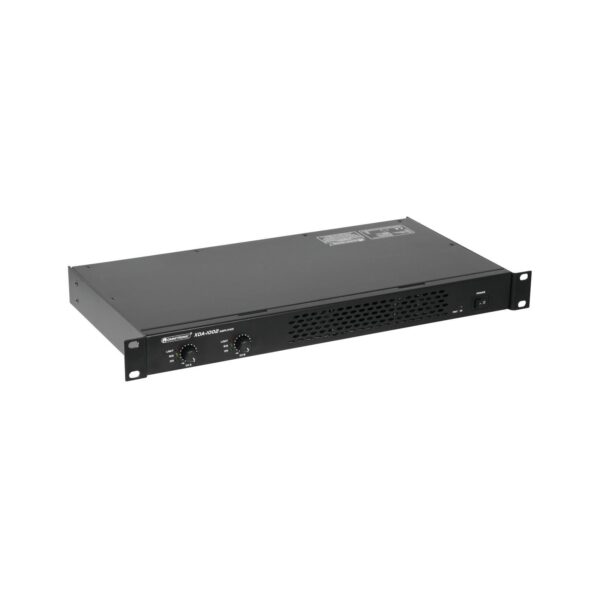

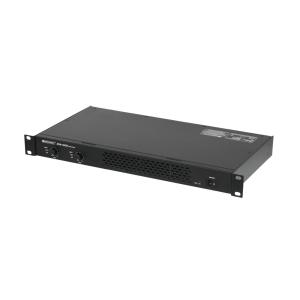

OMNITRONIC XDA-1002 Class D Amplifier
328,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Stereo PA amplifier with integrated SMPS 2 x 510 W
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Speaker switch-on delay and auto limiters
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
- Ground lift switch against humming
- Fan cooling
- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
- Rack installation with 1 unit
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 210 W (1/8 power) |
| Power output (RMS): | |
| stereo 4 ohms | 2 x 510 W |
| stereo 8 ohms | 2 x 300 W |
| 8 ohms bridged | 1 x 1000 W |
| Frequency range: | 30-20000 Hz |
| Distortion factor: | <0.02 % |
| Voltage gain: | 36 dB at 8 ohms |
| S/N ratio: | >100 dB |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input sensitivity: | 1.25 V RMS |
| Input connectors: | 2 x XLR |
| Output connectors: | 2 x Speaker, 2 x XLR feed-through output |
| Circuitry: | class D |
| Control elements: | power switch, level control per channel, mode switch |
| LED indicators: | Protect, limit, signal, power |
| Protection circuits: | Short-circuit, overheat, DC voltage, power on/off |
| transients, softstart | |
| Construction: | steel chassis |
| Dimensions (DxWxH): | 240 x 483 x 44 mm (19", 1 U) |
| Weight: | 4 kg |
| Peso | 46,500 kg |
|---|---|
| Dimensioni | 0,0800 × 0,5400 × 0,3600 cm |
| Codice Ean | 4026397580143 |
