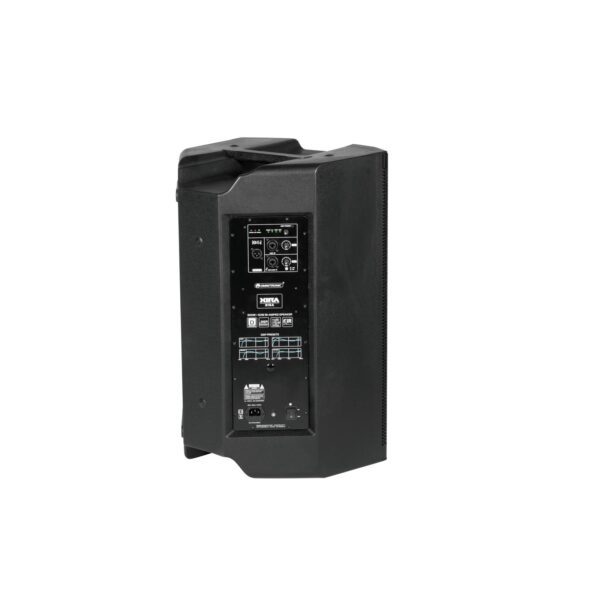

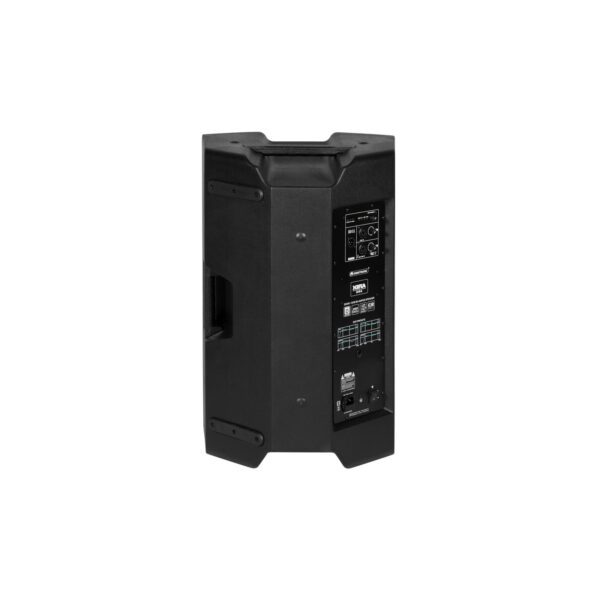

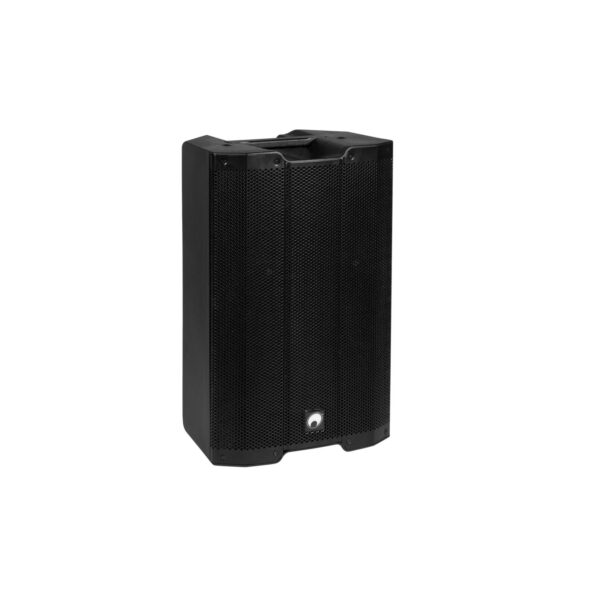

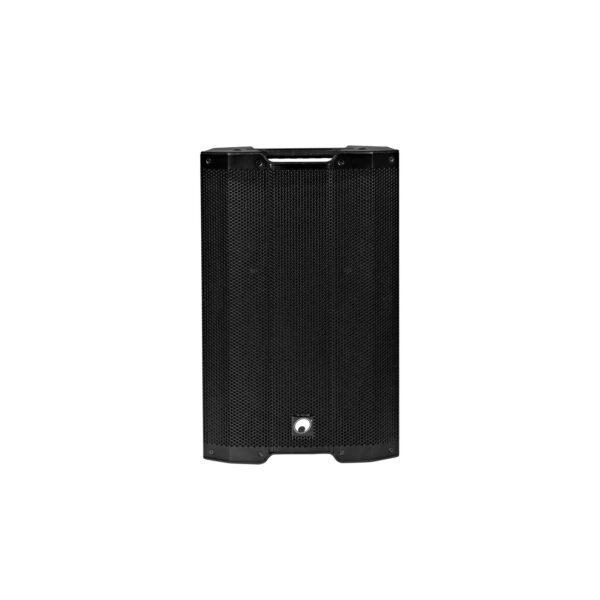

Active speaker with 15″ woofer, 1,35″ driver, LF: 300 W RMS, HF: 50 W RMS
- Active 15/2 full range system for mobile live and DJ applications

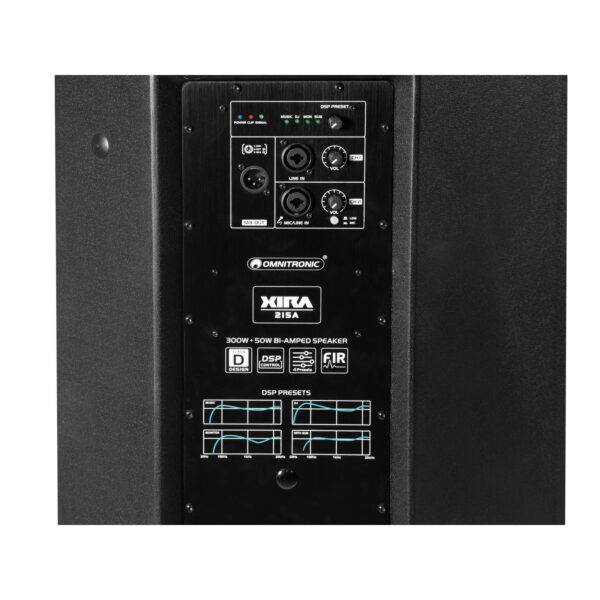

- DSP-controlled biamp amplifier (class D)
- Application presets for quick sound contouring: MUSIC, DJ, MONITOR, SUB
- 2-way bassreflex enclosure with 38 cm woofer and 3.5 cm titanium driver
- Line input (XLR/6.3 mm jack) with separate level control
- Mic/line input (XLR/6.3 mm jack) with separate level control
- Mixed XLR output for linking further active speaker systems
- Limiter for overload protection
- Power, signal and clip LED
- Stable plastic housing with protective grille and handles
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as floor monitor, on a speaker stand or wall holder
Package contents
- 1 x Top, 1 x User manual, 1 x Power cord
Power supply: | 230 V AC, 50 Hz |
Power consumption: | Max. 400 W |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Rated power: | 300 W RMS LF; 50 W RMS HF |
Frequency range: | 40 – 20000 Hz |
Sensitivity: | 96 dB |
Max. SPL: | 121 dB |
Attachment system: | Ø 35mm |
Circuitry: | Class D Biamp |
Connections: | Output: line via 1 x 3-pin XLR |
Input channels: | 1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial |
Speaker: | 1 x woofer (15″) approx. 38 cm Voice coil compression tweeter highs (1.35″) approx. 3,5 cm |
Type of speaker: | Compact cabinet speaker |
Type: | Vented |
Dimensions: | Length: 41 cm Width: 43 cm Height: 70 cm |
Weight: | 21,35 kg |
