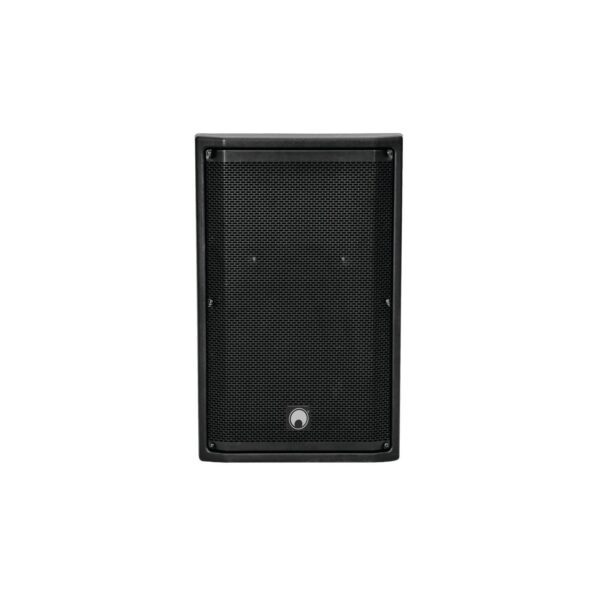

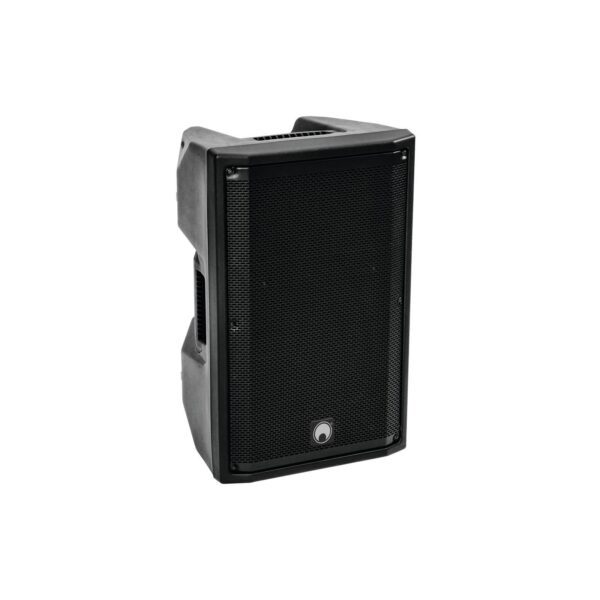

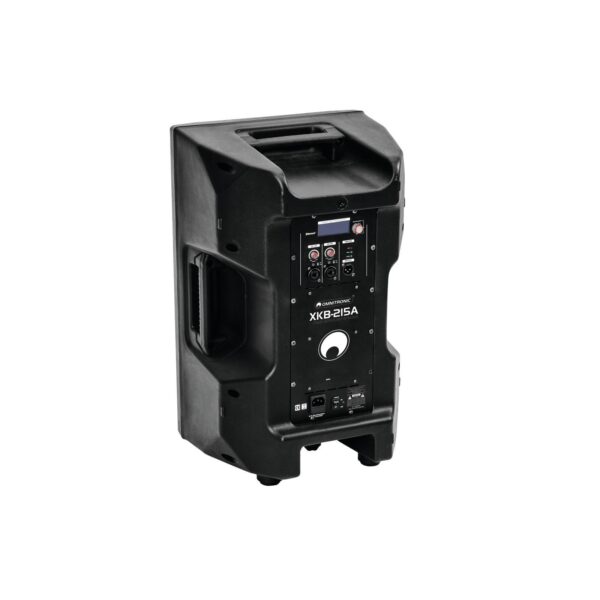

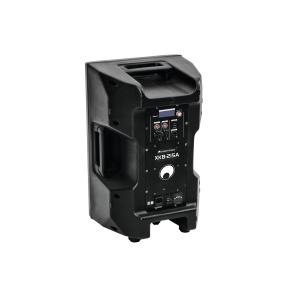

Active 2-way speaker system with DSP and Bluetooth
- Active 15/2 full range system for mobile live and DJ applications
- DSP-controlled biamp amplifier (LF class D, HF class A/B)
- Application presets for quick sound contouring:
- – LIVE (linear adjustment)
- – MUSIC (slight low and high frequency boost)
- – SPEECH (optimized speech intelligibility)
- – DJ (increased presence and bass)
- – TRIPOD (for stand mounting)
- – MONITOR (for use as a floor monitor)
- – WALL (for wall mounting)
- 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
- Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
- 2-way bassreflex enclosure with 38 cm woofer and 4 cm titanium driver

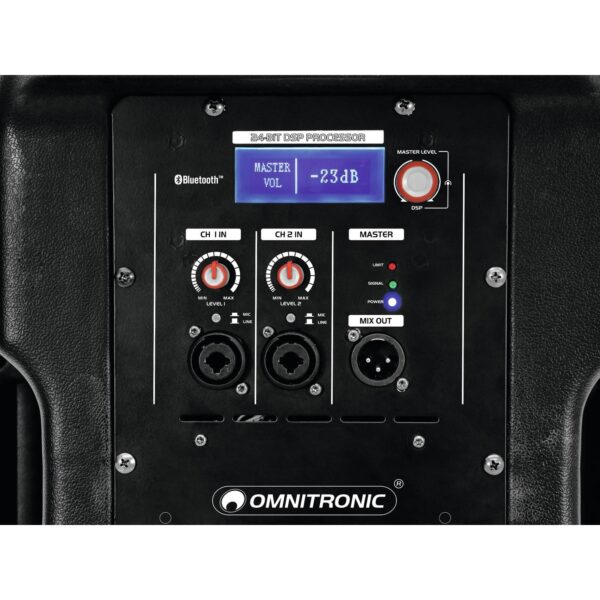

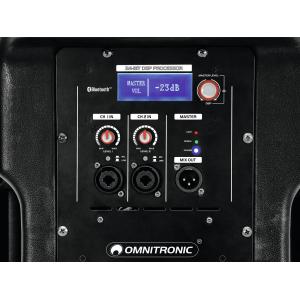

- Alphanumeric LCD with blue backlight
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Parallel XLR output for linking further active speaker systems
- Limiter for overload protection
- Master volume/DSP push control
- Power, signal and limit LED
- Stable plastic housing with protective grille and handles
- 36 mm flange for stand installation
- Applications: standing, as floor monitor, on a speaker stand or wall holder
Power supply: | 100-240 V AC, 50/60 Hz |
Amplifier power: | 300 W RMS LF, 60 W RMS HF |
LF speaker: | 38 cm bass/mids (15") with 76 mm voice coil |
HF speaker: | 40 mm driver (1.75") |
Inputs mic/line: | combination XLR/6.3 mm jack, bal. |
Parallel output: | XLR, bal. |
Sensitivity: | 96 dB (1 W, 1 m) |
Frequency range: | 50-20000 Hz |
Dimensions (H x W x D): | 450 x 370 x 700 mm |
Weight: | 20 kg |
