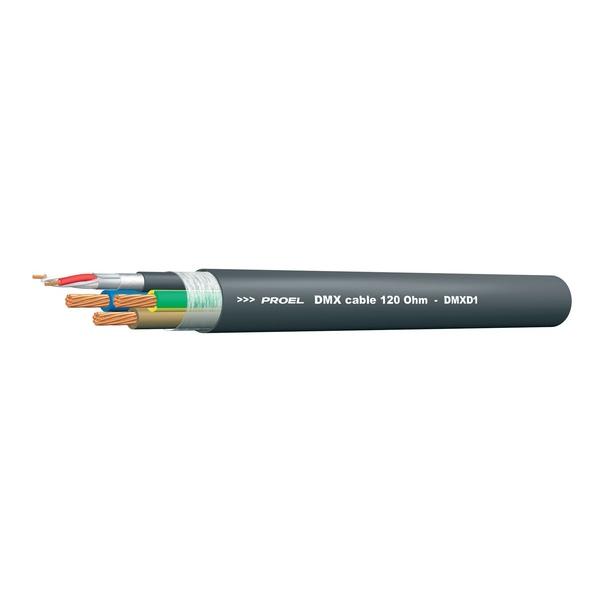

PROEL DMXD1

Cavo professionale DMX ad impedenza costante ad una coppia audio bilanciata twistata e cavo di potenza

Cavo professionale DMX ad impedenza costante ad una coppia audio bilanciata twistata e cavo di potenza con guaina esterna a diametro ridotto in PVC fl essibile antifiamma. Sezione: Audio 2 x 0.25 mm² – Power 3 x 1.50 mm². Colore nero.

• Application fields: Standard DMX connections / Light/colour changer scanner connections
• Conductors: Bare copper:
• Audio: 24 AWG = 14 x 0.15 mm (0.25 mm2) – Complying with IEC 228 Class 5 regulations
• Power: 16 AWG = 3 x 1.5 mm (1.55 mm2)
• Insulation:
• Audio: PE Ø 1.80 mm red/natural
• Power: flame resistant PVC Ø 4.5 mm – Complying with IEC 332.1 regulations
• Shield:
• Conductors: Aluminium/Mylard foil 100% – Tinned copper braid 90%
• Cable: Non wovens
• Jacket:
• Audio conductors: flame resistant flexible PVC Ø 4.50 mm
• Cable: flame resistant flexible PVC Ø 9.80 mm – Complying with IEC 332.1 regulations
• Color: Black
• Electrical resistance: 85 Ohm/Km (conductor) @ 20°C / 17 Ohm/Km (shield) @ 20°C
• Electrical capacitance: 40 pF/m (conductor/conductor) @ 1 KHz / 71 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 120 Ohm
• Operating temperature: -20°C / +80°C
• Working tension:
• Power: 300/500V
• < 50 V AC (Signal)
• < 75 V DC (Signal)
• Weight: 146 Kg/Km
• Minumum bending radius: 25 mm
• Packaging: 100 m wooden or wood fiber reel
