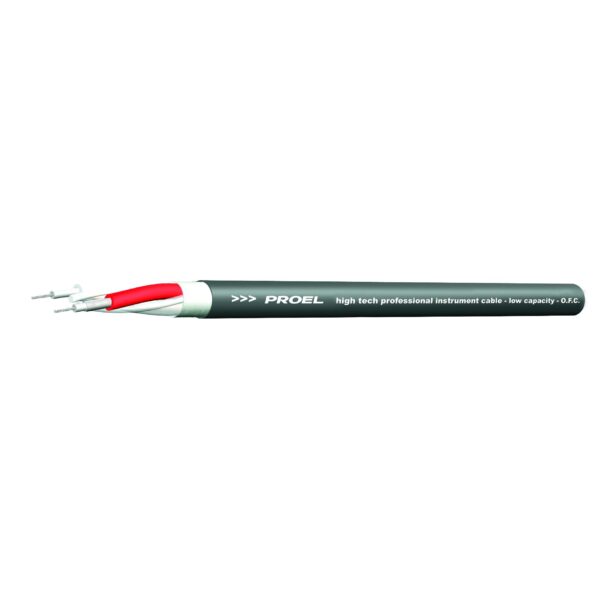

PROEL HPC140

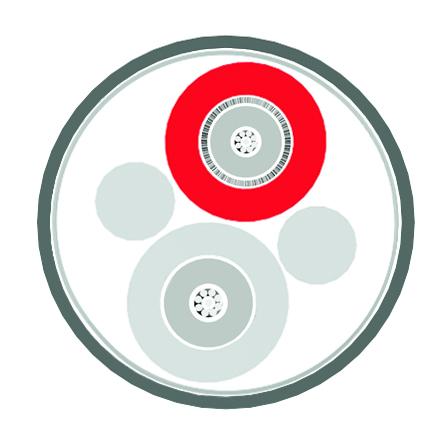

Nuovo cavo professionale esoterico sbilanciato per strumenti. Realizzato con 2 conduttori in rame O.F.C. (Oxygen Free Copper) twistati con riempitivi in PVC e ricoperti con calza in tessuto non tessuto.

Nuovo cavo professionale esoterico sbilanciato per strumenti. Realizzato con 2 conduttori in rame O.F.C. (Oxygen Free Copper) twistati con riempitivi in PVC e ricoperti con calza in tessuto non tessuto. Colore nero

• Application fields: Hi-end Musical instrument connection / Multieff ect / mixer connection
• Conductors: Strands of tinned copper wires AWG22 = 7 x 0,25 mm (0,34mm²)
• Insulation: Polyolefin dielectric natural Ø = 1,7 mm ca.
• Shield: (only for main conductor) Tinned copper braid coverage > 95%
• Jacket:
• Conductor: PVC compound red/transparent- Ø = 2,7 mm ca.
• Cable: Soft PVC compound – Ø = 7,2 mm ca.
• Color: Black
• Electrical resistance:56 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 67 pF/m (conductor/conductor) @ 1 KHz
• 105 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +80°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 58 Kg/Km
• Minumum bending radius: 10 x cable outer diameter
• Packaging: 100 m carton reel
