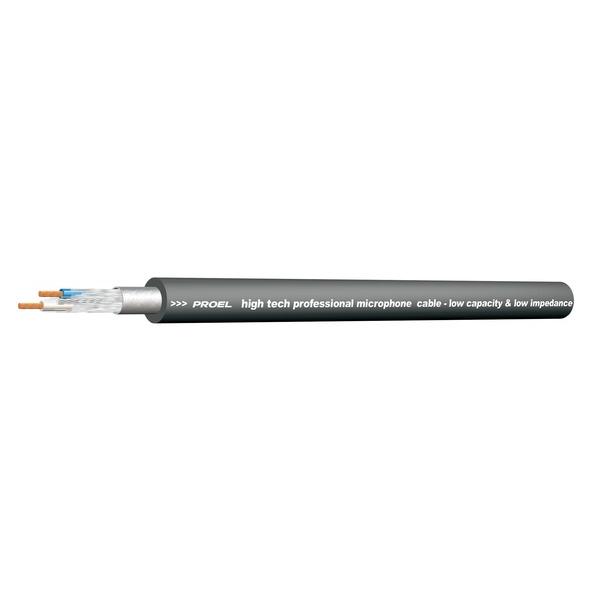

PROEL HPC250

Cavo bilanciato “high quality” per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,22 mm²).

Cavo bilanciato “high quality” per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,22 mm²).

• Application fields: Installations / Recording studios / Microphone connections
• Conductors: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm²)
• Insulation: PE Ø 1.36 mm
• Shield: Tinned copper braid 6x16x0.10 mm > 95%
• Jacket: Flexible PVC 60 shore Ø 6.50 mm
• Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm²)
• Color: Black
• Electrical resistance:
• 93 Ohm/Km (conductor) @ 20°C
• 21 Ohm/Km (shield) @ 20°C
• Electrical capacitance: 90 pF/m (conductor/conductor) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 51 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
