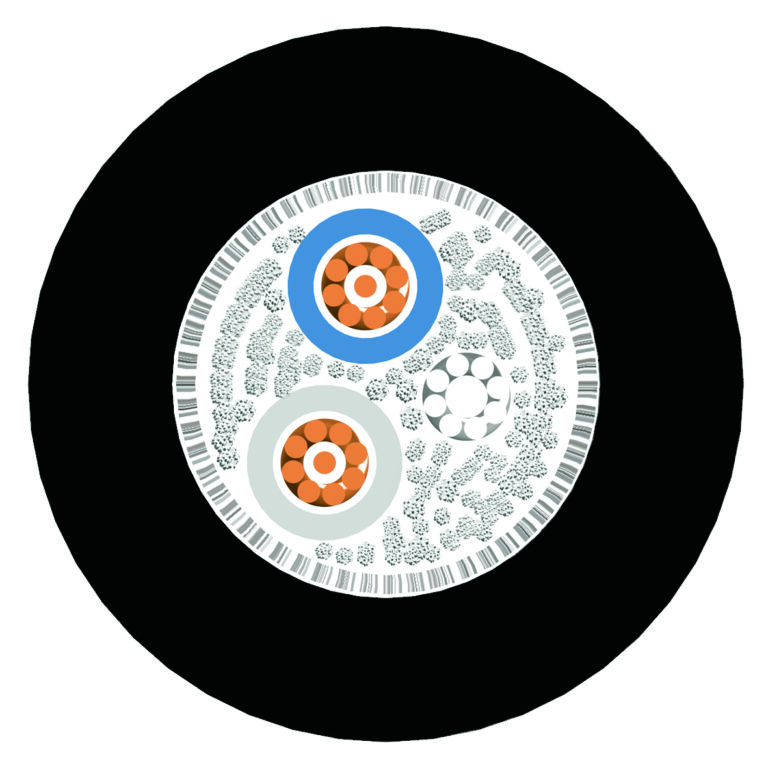

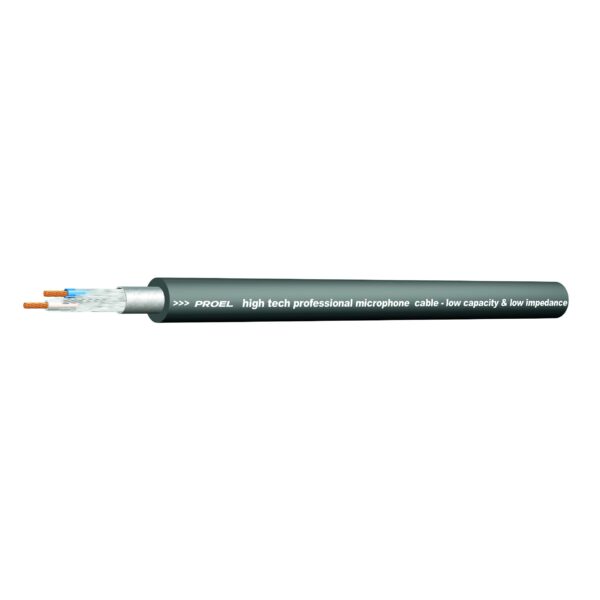

PROEL HPC280

Cavo bilanciato “high quality” – per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,34 mm²).

Cavo bilanciato “high quality” – per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,34 mm²).

• Application fields: Installations / Recording studios / Microphone connections
• Conductors: Bare copper 22 AWG = 43 x 0.10 mm (0.34 mm²)
• Insulation: PE Ø 1.50 mm
• Shield: Tinned copper braid / 95%
• Jacket: Super Flexible PVC 70 shore Ø 6.50 mm
• Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm²)
• Color: Black
• Electrical resistance:
• 56 Ohm/Km (conductor) @ 20°C
• 16 Ohm/Km (shield) @ 20°C
• Electrical capacitance: 40 pF/m (conductor/ conductor) @ 1 KHz
• Velocity of propagation: 66 %
• Impedance: 110 Ohm
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 57 Kg/Km
• Minumum bending radius: 15 x cable section radius
• Packaging: 100 m carton reel
