PROEL HPC290BK

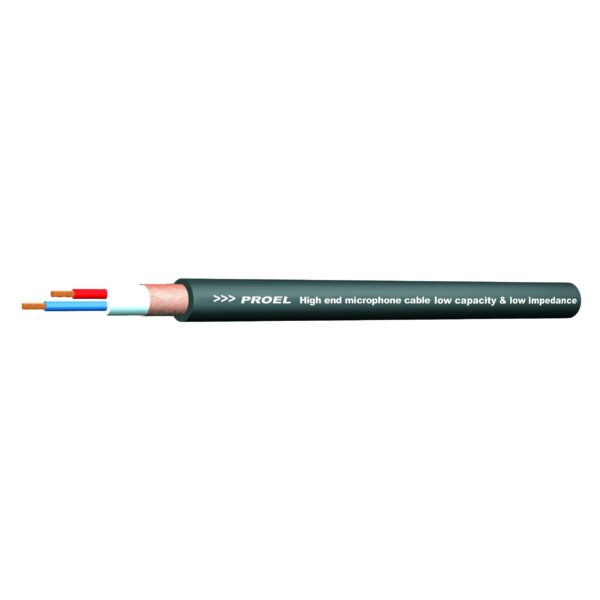

Cavo bilanciato “high-end” professionale per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper) – Sezione 2 x 0,50 mm²).

Cavo bilanciato “high-end” professionale per microfono con guaina esterna flessibile – O.F.C. (Oxygen Free Copper) – Sezione 2 x 0,50 mm²).

• Application fields: Installations / Recording studios / Professional Stage Connections / Microphone connections
• Conductors: Bare copper 20 AWG = 26 x 0.15 mm (0.50 mm²)
• Insulation: LDPE Ø 1.40 mm – PVC Ø 3,60 mm
• Shield: Bare copper braid / 24*7*0,10 – 90%
• Jacket: PVC TM2 complying with EN 50363-4-1 hardness 63± 2 Sh-A – Ø 7.00 mm
• Color: Black
• Electrical resistance:
• 39 Ohm/Km (conductor) @ 20°C
• 16 Ohm/Km (shield) @ 20°C
• Electrical capacitance:
• 55 pF/m (conductor / conductor) @ 1 KHz
• 120 pF/m (conductor / screen) @ 1 KHz
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 57 Kg/Km
• Minumum bending radius: 15 x cable section radius
• Packaging: 100 m carton reel
