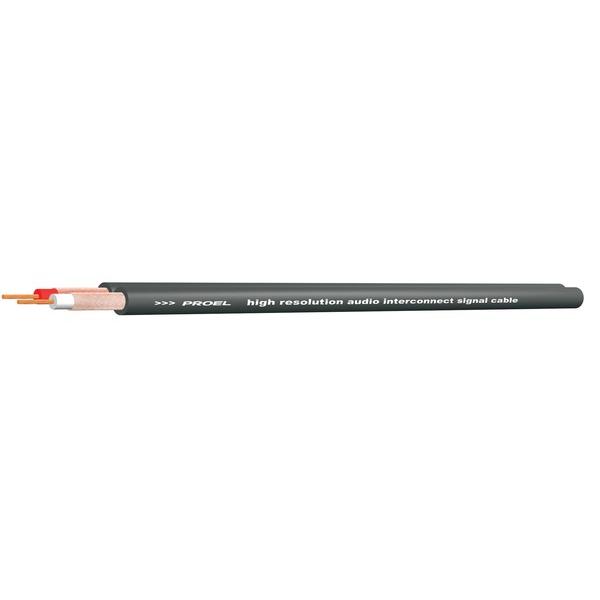

PROEL HPC300

Cavo piatto a 2 conduttori singolarmente schermati con guaina esterna in PVC fl essibile. Sezione: 2 x 0.14 mm².

Cavo piatto a 2 conduttori singolarmente schermati con guaina esterna in PVC fl essibile. Sezione: 2 x 0.14 mm².

• Application fields: Audio connections
• Conductors: Bare copper 25 AWG = 18×0.10 mm (0.14 mm²)
• Insulation: PVC 80 shore Ø 1.00 mm
• Shield: Spiral copper 5x8x0.10 >90%
• Jacket: Flexible PVC 50 shore Ø 3.00 mm
• Color: Black
• Electrical resistance:122.80 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 52,5 pF/m (conductor/conductor) @ 1 KHz
• 250 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• Weight: 27 Kg/Km
• Minumum bending radius: 20 x cable section radius
• b
• Packaging: 100 m carton reel
