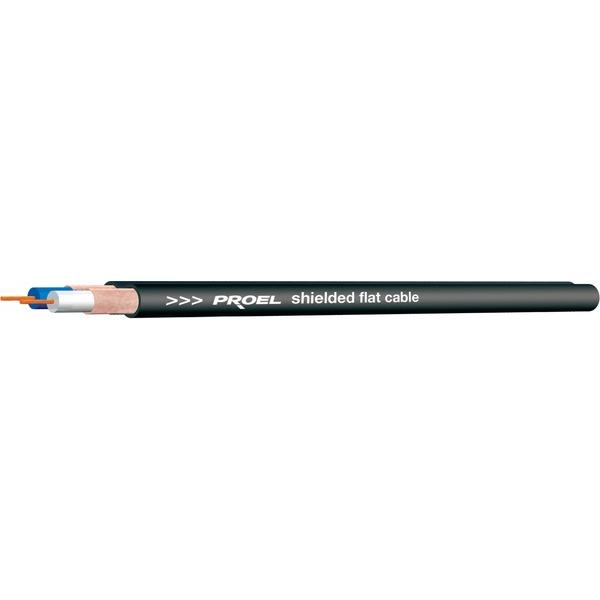

PROEL HPC305

Cavo piatto a 2 conduttori singolarmente schermati con guaina esterna in PVC flessibile. Sezione: 2 x 0.22 mm².

Cavo piatto a 2 conduttori singolarmente schermati con guaina esterna in PVC flessibile. Sezione: 2 x 0.22 mm².

• Application fields: Audio connections
• Conductors: Bare copper 23 AWG (0.22 mm²)
• Insulation: PE Ø 1.60 mm
• Shield: Spiral copper / 95%
• Jacket: Flexible PVC 50 shore Ø 5.00 mm
• Color: Black
• Electrical resistance:73,80 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 21,2 pF/m (conductor/conductor) @ 1 KHz
• 117,5 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -30°C / +70°C
• Working tension:
• < 50 V AC
• Weight: 43 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
