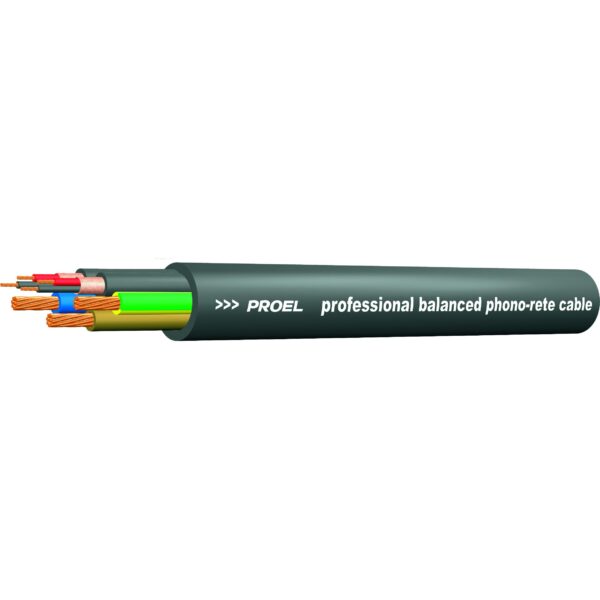

PROEL HPC504

Cavo professionale combinato di tipo audio + alimentazione.

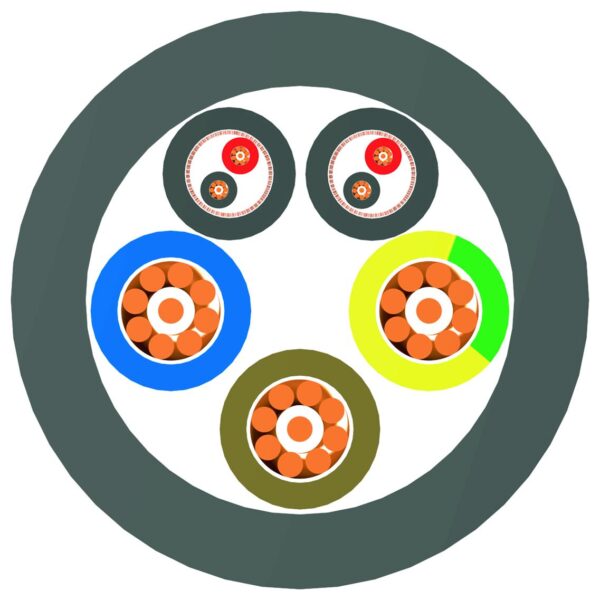

Cavo professionale combinato di tipo audio + alimentazione. Composto da due coppie audio bilanciate, twistate e individualmente isolate + cavo di alimentazione elettrica monofase. Guaina esterna in PVC flessibile antifiamma dal diametro ridotto. Sezione: Audio 2 x 2 x 0.22 mm² – Power 3 x 1.50 mm². Colore nero. Bobina in legno 100 m.

• Application fields: Audio connections
• Conductors: Bare copper
• Power: 16 AWG = 3x29x0.25 mm (1,5 mm²)
• Signal: 24 AWG = 7×0.20 mm (0.22 mm²)
• Insulation:
• Power: PVC 86 shore Ø 3.6 mm
• Signal: PVC 86 Ø 1.40 mm
• Shield: Braided red copper 0.10 mm > 85%
• Jacket: Flexible fl ame resistant PVC Ø 12mm / Complying with IEC 332-1 (CEI 20-35) regulations
• Color: Black
• Electrical resistance: 7,4 Ohm/Km @ 20°C (Power) / 80 Ohm/Km @ 20°C (Signal)
• Electrical capacitance: 65 pF/m (signal) @ 1 KHz
• Operating temperature: -10°C / +60°C
• Working tension:
• Power: 300/500 V
• Signal: < 50 V AC / < 75 V DC
• Weight: 225 Kg/Km
• Minumum bending radius: 10 x cable section radius
• Packaging: 100 m wooden or wood fiber reel
