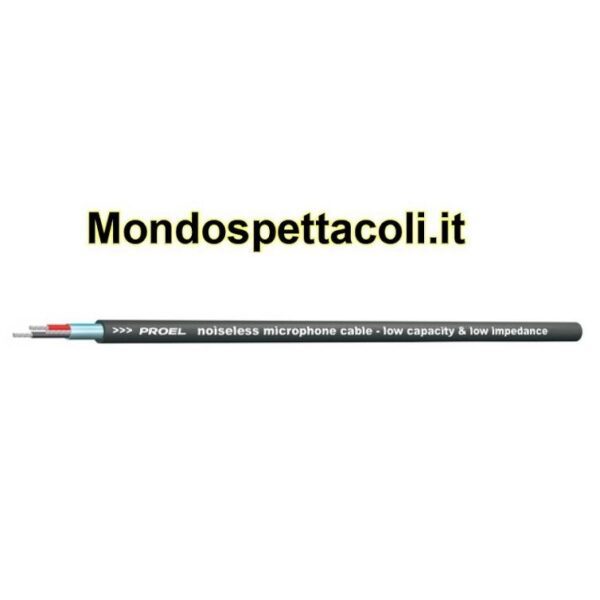

Proel HPC80 Cavo bilanciato per installazione

Cavo bilanciato per installazione con guaina esterna schermata con nastro in alluminio – O.F.C. (Oxygen Free Copper) dal diametro ridotto – Sezione 2 x 0.22 mm2. Coore nero.

Application fields: Patch-bay connections / Multieffect connections / Rack system connections
Conductors: Tinned copper – 24 AWG 7 x 0.20 mm (0.22 mm2)
Insulation: PE Ø 1.05 mm
Shield: Aluminium foil 100%%
Jacket: Flexible PVC 80 shore Ø 4.00 mm
Color: Black
Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm2)
Electrical resistance: 87 Ohm/Km (conductor) @ 20°C
Electrical capacitance:
63 pF/m (conductor/conductor) @ 1 KHz
107 pF/m (conductor/shield) @ 1 KHz
Nominal impedance: 80 +-3 Ohm
Attenuation:
1 MHz = 2.10 dB/100 m
3 MHz = 3.60 dB/100 m
6 MHz = 5.00 dB/100 m
8 MHz = 5.80 dB/100 m
10 MHz = 6.50 dB/100 m
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Working tension:
< 50 V AC
< 75 V DC
Weight: 20 Kg/Km
Minumum bending radius: 25 mm
